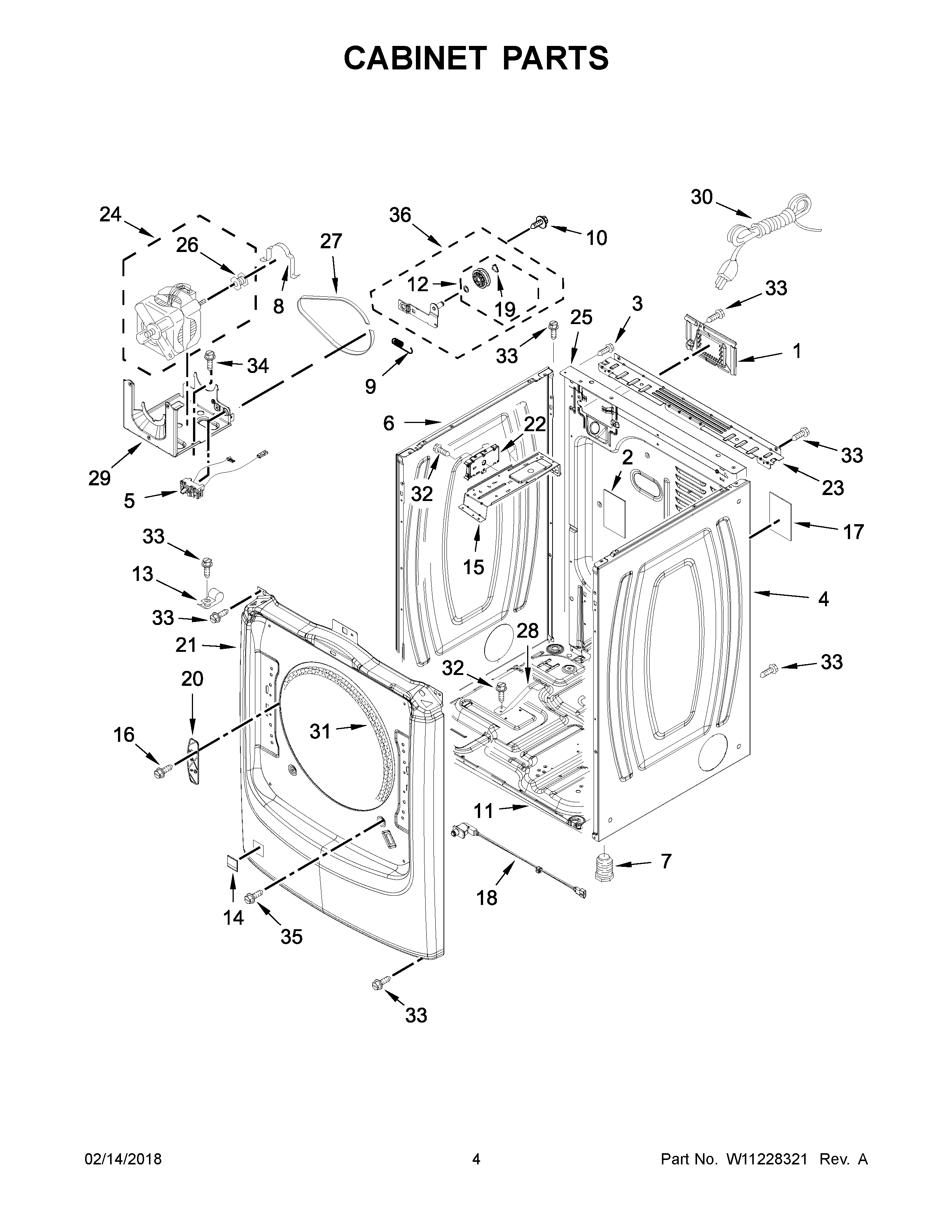

MGD5500FC1 03 – CABINET PARTSadmin2025-04-26T09:09:36+00:00MGD5500FC1 03 – CABINET PARTS
Products
| Position | Product |
|---|
| NI | KIT, 4-WAY VENT |
| NI | MAY 279810 |
| 1 | MAY 8317339 |
| 2 | MAY W10836097 |
| 3 | SCREW |
| 4 | PANEL, SIDE (RIGHT) (WHITE) |
| 4A | PANEL, SIDE (RIGHT) (CHROME SHADOW) |
| 5 | SWITCH, BROKEN BELT |
| 6 | MAY W10468495 |
| 6A | PANEL, SIDE (CHROME SHADOW) |
| 7 | MAY 3392100 |
| 8 | CLAMP, MOTOR MOUNT |
| 9 | MAY W10446781 |
| 10 | SCREW |
| 11 | MAY 8565046 |
| 12 | MAY W10468057 |
| 13 | MAY 3978776 |
| 14 | PLUG, FRONT PANEL (WHITE) |
| 14A | PLUG, FRONT PANEL (CHROME SHADOW) |
| 15 | MAY W10259611 |
| 16 | MAY W10288126 |
| 17 | MAY W10504381 |
| 18 | MAY W10569114 |
| 19 | WASHER, TRI RING |
| 20 | MAY W10208250 |
| 21A | PANEL, FRONT (CHROME SHADOW) |
| 21 | PANEL, FRONT (WHITE) |
| 22 | CONTROL BOARD |
| 23 | MAY W10208382 |
| 24 | ASSEMBLY, MOTOR |
| 25 | MAY W10487430 |
| 26 | Pulley, Motor |
| 27 | MAY W10112954 |
| 28 | MAY 8529757 |
| 29 | MAY W10242878 |
| 30 | CORD, POWER |
| 31 | MAY 3387242 |
| 32 | Screw |
| 33 | SCREW |
| 34 | SCREW |
| 35 | SCREW |
| 36 | ASSEMBLY, IDLER |
