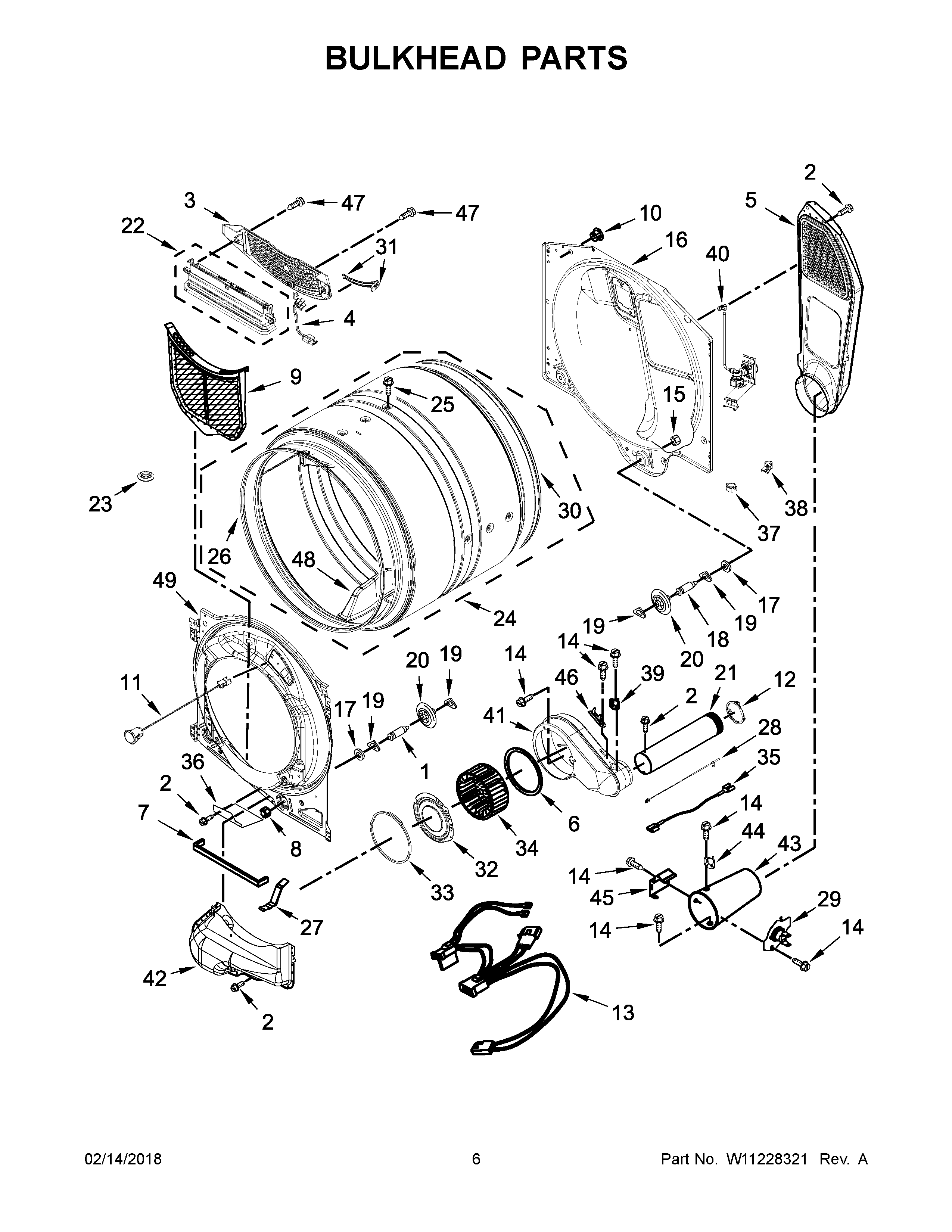

MGD5500FC1 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	SCREW
3	GRILL, OUTLET
4	MAY W10298258
5	MAY W10295533
6	SEAL, PLATE COVER
7	MAY W10211950
8	NUT, HEX
9	LINT SCREEN (WHITE)
10	MAY 8529007
11	MAY W10460935
12	MAY W10344699
13	MAY W10708958
14	Screw
15	NUT, HEX (LEFT HAND THREAD)
16	MAY 3387809
17	WASHER
18	SHAFT, DRUM ROLLER – LEFT HAND THREAD
19	WASHER, TRI RING
20	ROLLER, SUPPORT
21	MAY W10342188
22	ASSEMBLY, OUTLET GRILL AND HOUSING
23	CAP, PLUG
24	DRUM ASSEMBLY COMPLETE
25	MAY W10219342
26	MAY W10521122
27	MAY W10414388
28	THERMISTOR, GAS INLET
29	CUT-OFF, THERMAL
30	MAY W10521118
31	SENSOR, ELECTRODE
32	MAY W10211901
33	MAY W10211899
34	MAY W10211915
35	MAY W10525140
36	MAY W10128629
37	MAY W10044599
38	MAY 3391018
39	THERMISTOR
40	VALVE AND HOSE ASSEMBLY
41	MAY W10211911
42	MAY W10211896
43	MAY 8573824
44	THERMOSTAT, HI LIMIT
45	MAY 338906
46	FUSE, THERMAL (91C)
47	SCREW
48	MAY W10416098
49	BULKHEAD, FRONT
