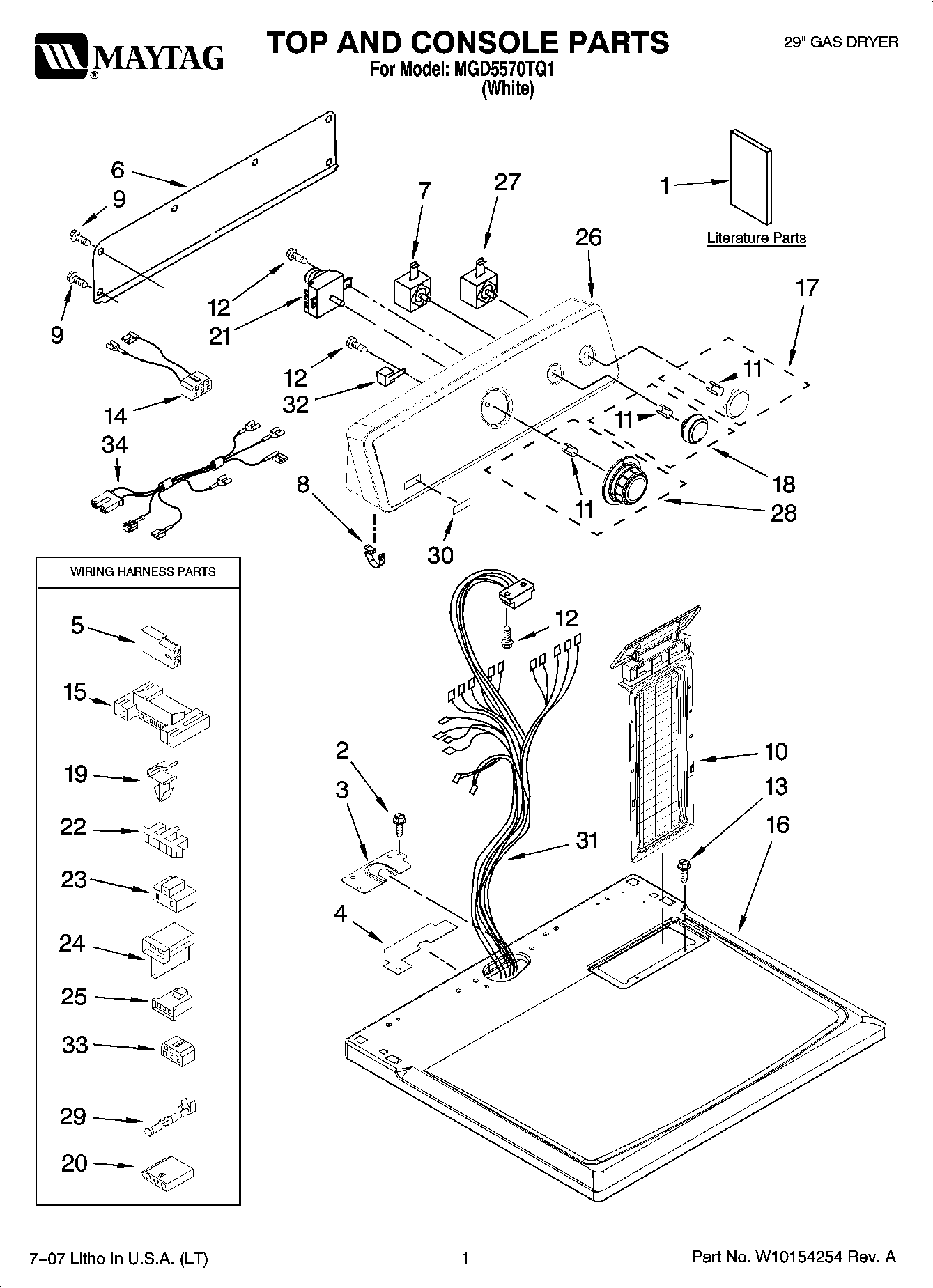

MGD5570TQ1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY 8576817
1	MAY W10088775
1	MAY W10089170
2	MAY 359625
3	MAY W10112578
4	Seal-Harness
5	Plug, 2-Way Terminal
6	MAY W10112577
7	Switch, Temperature
8	MAY 8312709
9	Screw
10	Screen, Lint
11	CLIP, SPRING
12	MAY 8533971
13	SCREW
14	MAY W10110861
15	CONNECTOR (MOTOR)
16	MAY W10112597
17	MAY W10110031
18	Knob, Control (3)
19	CLIP, HARNESS
20	MAY 3936144
21	MAY 8578909
22	Connector-Timer
23	Connector (PTS) Relay
24	CONNECTOR, 2-POSITION (GAS VALVE)
25	MAY 3403498
26	Shell & Control Panel Assembly (Includes: Illus. 30)
27	Switch, Push-To-Start
28	Timer-Knob Assembly
29	Terminal
30	MAY W10112569
31	MAY W10110992
32	MAY 694419
33	Connector
34	Wire, Jumper (Timer Buzzer)
