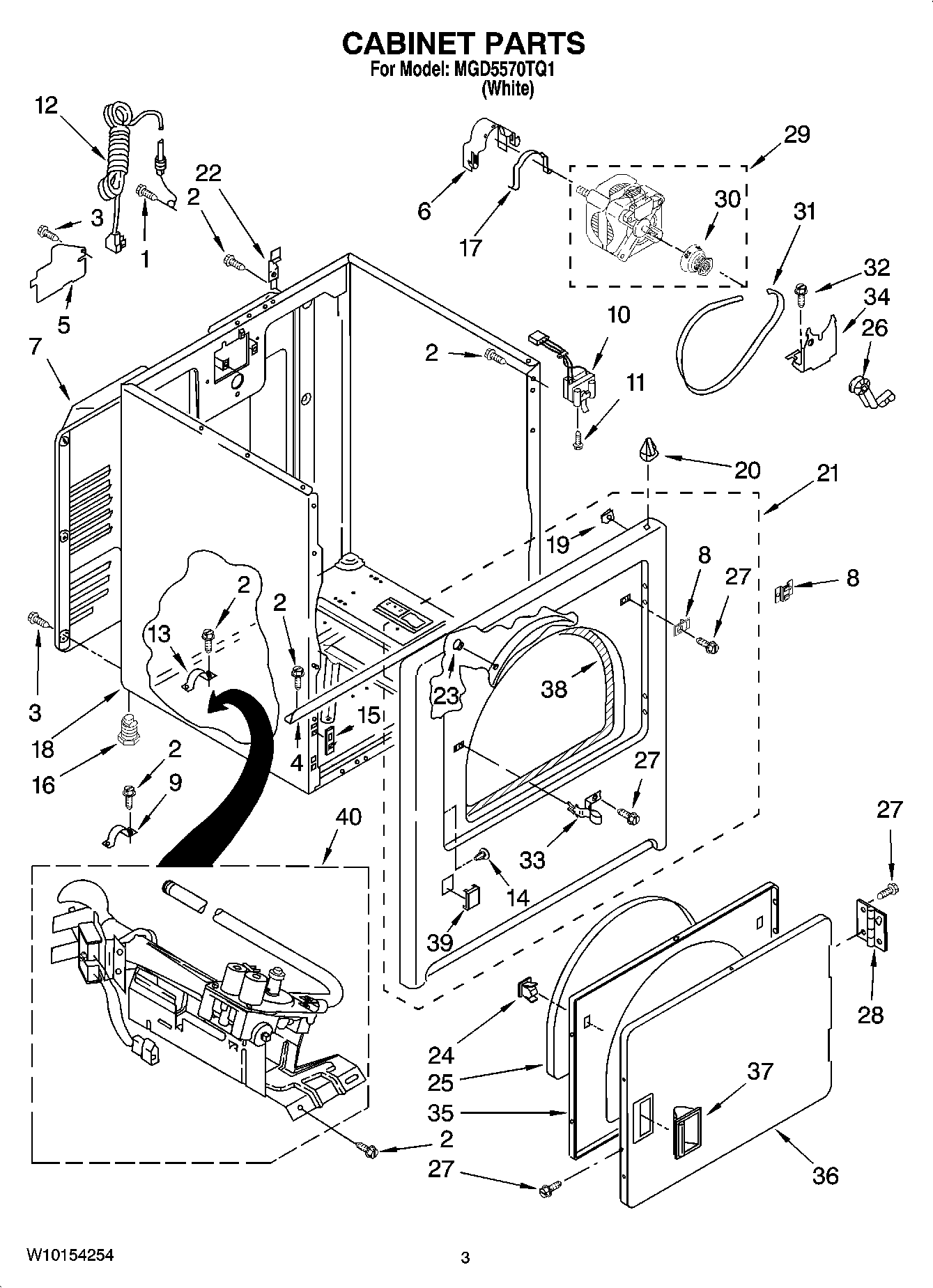

MGD5570TQ1 02 – CABINET PARTS

Products

PositionProduct
1Screw, 8-18 x 5/8 (External Ground)
2SCREW
3Screw
4MAY 8541400
5MAY 3396795
6Clamp, Motor (With Shield)
7MAY 3396805
8PLUG-STRIKE
9MAY 3980175
10Switch, Door
11SCREW
12MAY 344020
13MAY 341029
14PLUG, HINGE HOLES
15MAY 3394083
16MAY 279810
16MAY 3392100
17MAY 660658
18CABINET (WHITE)
19Clip, Ground
20LOCK, FRONT TOP
21MAY 3403447
22Hinge, Top
23Clip, Felt Pad
24DOOR CATCH ASSEMBLY
25MAY 3405246
26IDLER ASSEMBLY
27MAY 342055
28HINGE AND PIN ASSEMBLY
29MAY 8066206
30Pulley, Motor
31MAY 8066065
32BOLT
33Strike, Door
34MAY 348780
35Door, Rear
36DOOR FRONT
37Handle, Door
38MAY 3406129
39MAY 3394975
