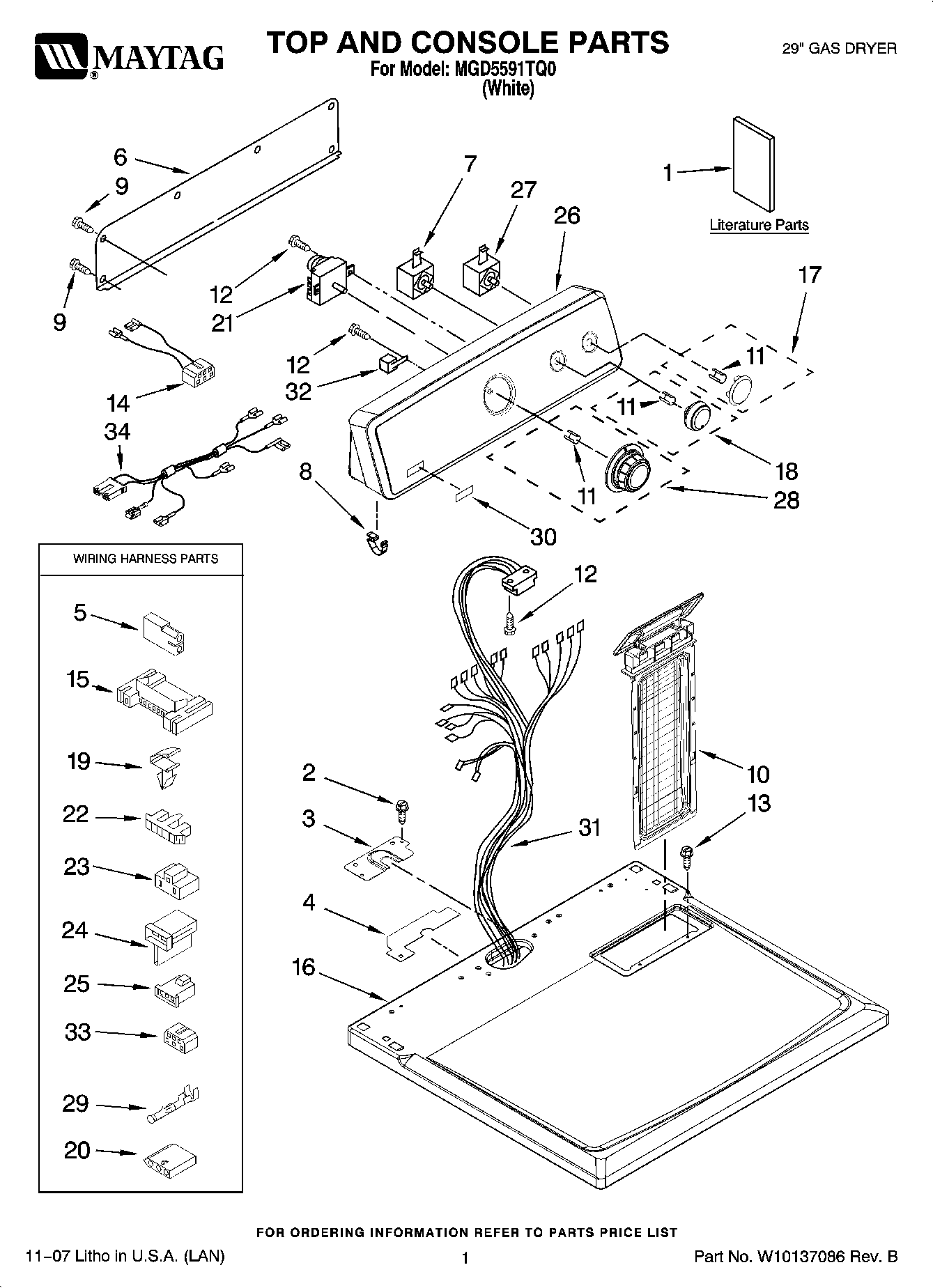

MGD5591TQ0 01 – TOP AND CONSOLE PARTS

MGD5591TQ0 01 – TOP AND CONSOLE PARTS

Written by

in

MGD5591TQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10088779
1MAY W10141115
1MAY W10150652
2MAY 359625
3MAY 8565981
4MAY W10118608
5Plug, 2-Way Terminal
6Panel, Rear
7Switch, Temperature
8MAY 8312709
9Screw
10MAY 8565973
11CLIP, SPRING
12MAY 8533971
13SCREW
14MAY W10110861
15CONNECTOR (MOTOR)
16MAY W10112597
17MAY W10110031
18Knob, Control (3)
19CLIP, HARNESS
20MAY 3936144
21MAY 8578909
22Connector-Timer
23Connector (PTS) Relay
24CONNECTOR, 2-POSITION (GAS VALVE)
25MAY 3403498
26Shell & Console Assembly (Includes: Illus. 30)
27Switch, Push-To-Start
28Timer-Knob Assembly
29Terminal
30MAY W10112569
31MAY W10110866
32MAY 694419
33Connector
34Wire, Jumper (Timer Buzzer)
