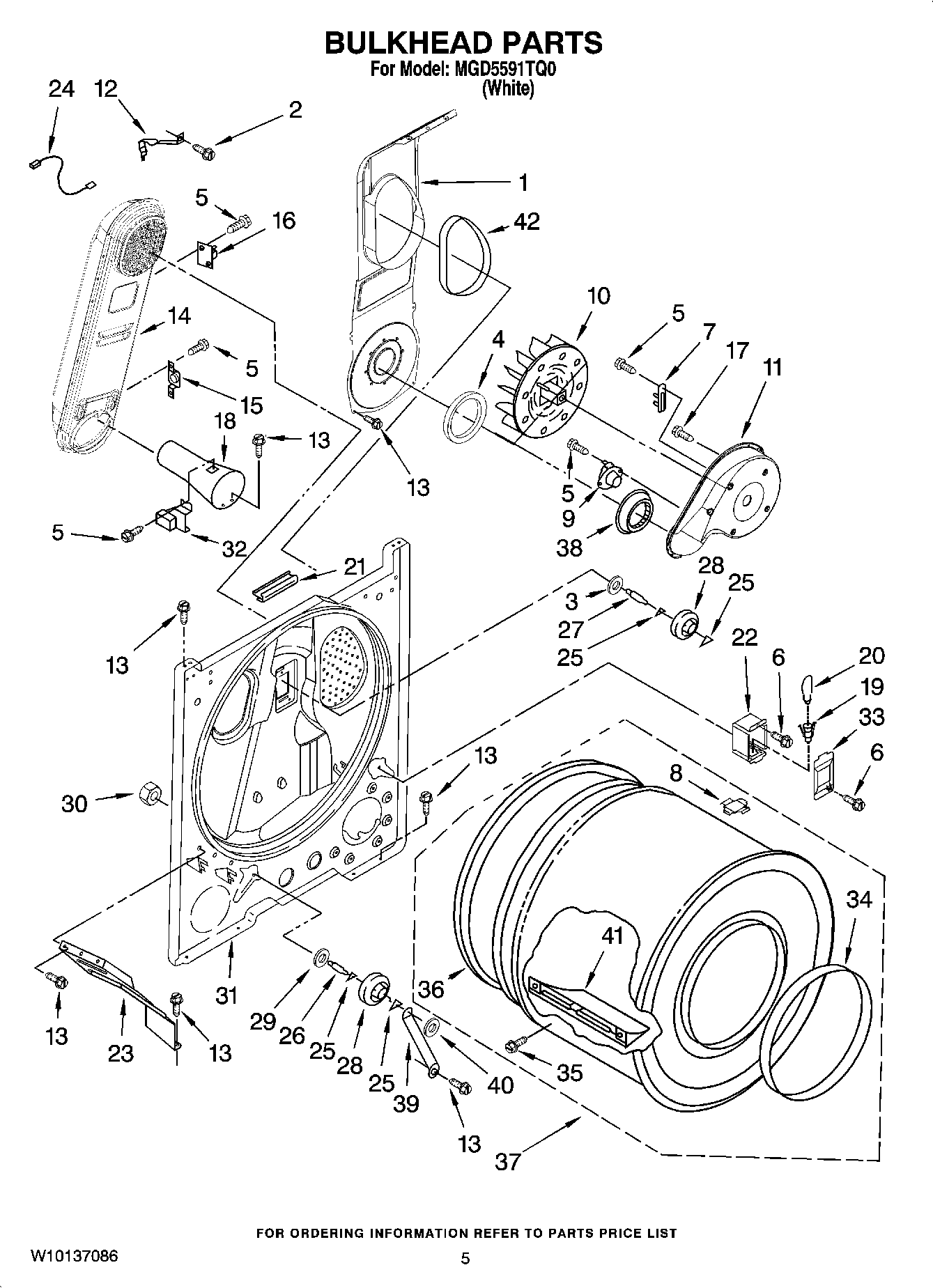

MGD5591TQ0 03 – BULKHEAD PARTS

Products

Position	Product
1	MAY 8519777
2	Screw
3	WASHER
4	MAY 347139
5	SCREW,8-18 X 3/8
6	MAY 487909
7	Fuse, Thermal (91 C)
8	Plug, Drum Hole
9	MAY 3387134
10	MAY 3406963
11	MAY 8577233
12	CLIP HEATER BOX
13	SCREW
14	BOX, HEATER (96C)
15	Thermostat, 205 F (96C)
16	MAY 280010
17	SCREW
18	MAY 8066048
19	MAY W10136369
20	MAY 3406124
21	MAY 3392247
22	MAY 3977373
23	BRACKET, BULKHEAD CHUTE
24	WIRE JUMPER
25	WASHER, TRI RING
26	MAY 3399506
27	MAY 3399507
28	MAY 3397590
29	WASHER
30	Nut, 3/8-16
31	MAY 8529957
32	MAY 338906
33	MAY 8532165
34	MAY 3394509
35	MAY W10109200
36	MAY 8066085
37	MAY 3396777
38	MAY 696302
39	Bracket, Support
40	NUT, PUSH ON
41	MAY 342847
42	MAY 339956
