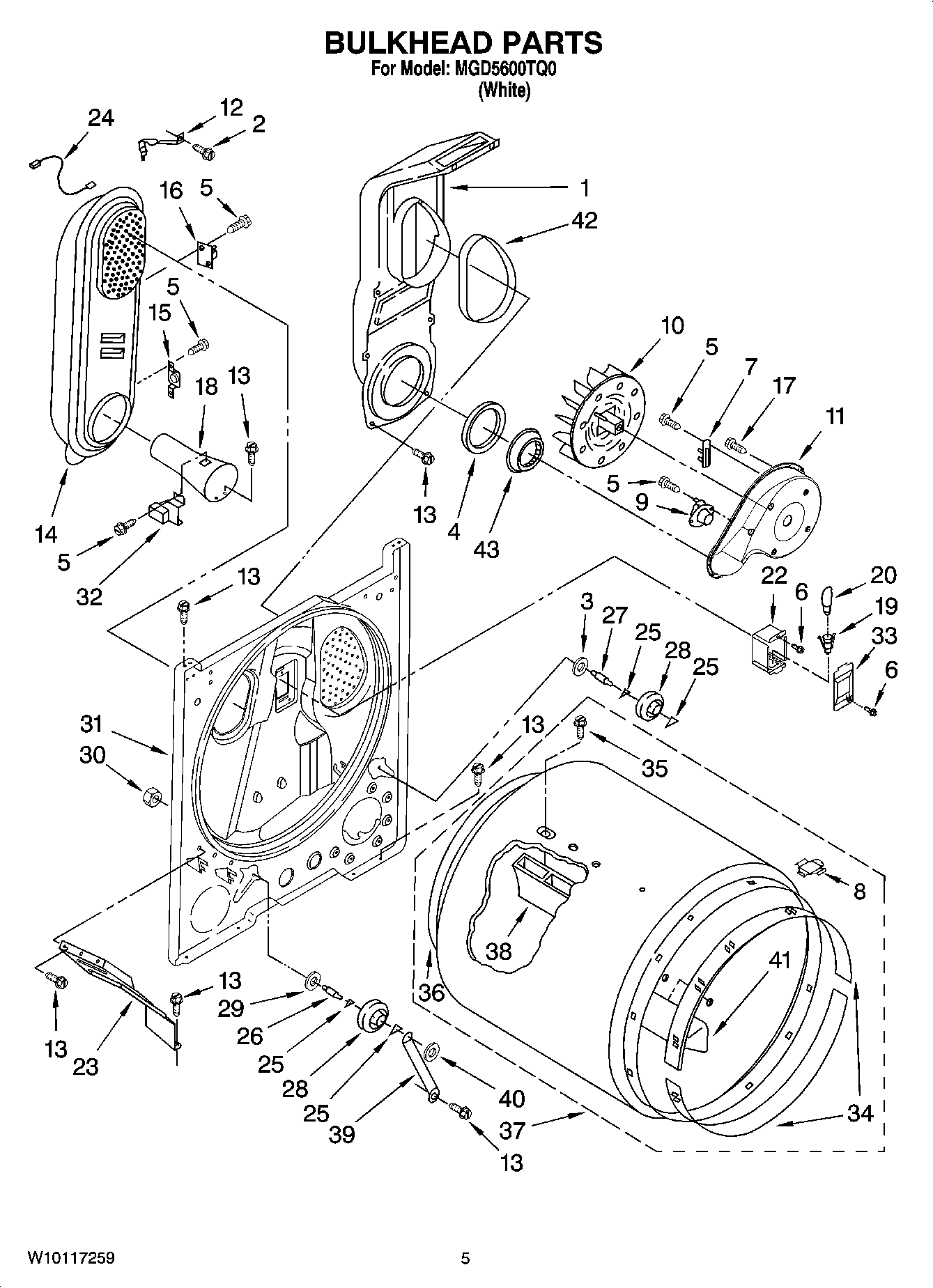

MGD5600TQ0 03 – BULKHEAD PARTSadmin2025-04-26T12:48:16+00:00MGD5600TQ0 03 – BULKHEAD PARTS
Products
| Position | Product |
|---|
| 1 | MAY 348368 |
| 2 | Screw |
| 3 | WASHER |
| 4 | MAY 347139 |
| 5 | SCREW,8-18 X 3/8 |
| 6 | MAY 487909 |
| 7 | Fuse, Thermal (91 C) |
| 8 | Plug, Drum Hole |
| 9 | MAY 3387134 |
| 10 | Wheel, Blower |
| 11 | MAY 8577230 |
| 12 | CLIP HEATER BOX |
| 13 | SCREW |
| 14 | BOX, HEATER (96C) |
| 15 | Thermostat, 205 F (96C) |
| 16 | Thermal Cutoff (Includes Illus. 48) |
| 17 | SCREW |
| 18 | FUNNEL, BURNER LIGHT |
| 19 | MAY W10136369 |
| 20 | MAY 3406124 |
| 22 | MAY 3977373 |
| 23 | BRACKET, BULKHEAD CHUTE |
| 24 | WIRE JUMPER |
| 25 | WASHER, TRI RING |
| 26 | MAY 3399506 |
| 27 | MAY 3399507 |
| 28 | MAY 3397590 |
| 29 | WASHER |
| 30 | Nut, 3/8-16 |
| 31 | MAY 3403413 |
| 32 | MAY 338906 |
| 33 | MAY 3402841 |
| 34 | Bearing, Ring |
| 35 | MAY W10109200 |
| 36 | MAY 3406130 |
| 37 | MAY 695587 |
| 38 | BAFFLE, DRUM (LONG) |
| 39 | MAY 3976434 |
| 40 | NUT, PUSH ON |
| 41 | BAFFLE, DRUM (SHORT) |
| 42 | MAY 339956 |
| 43 | MAY 696302 |
