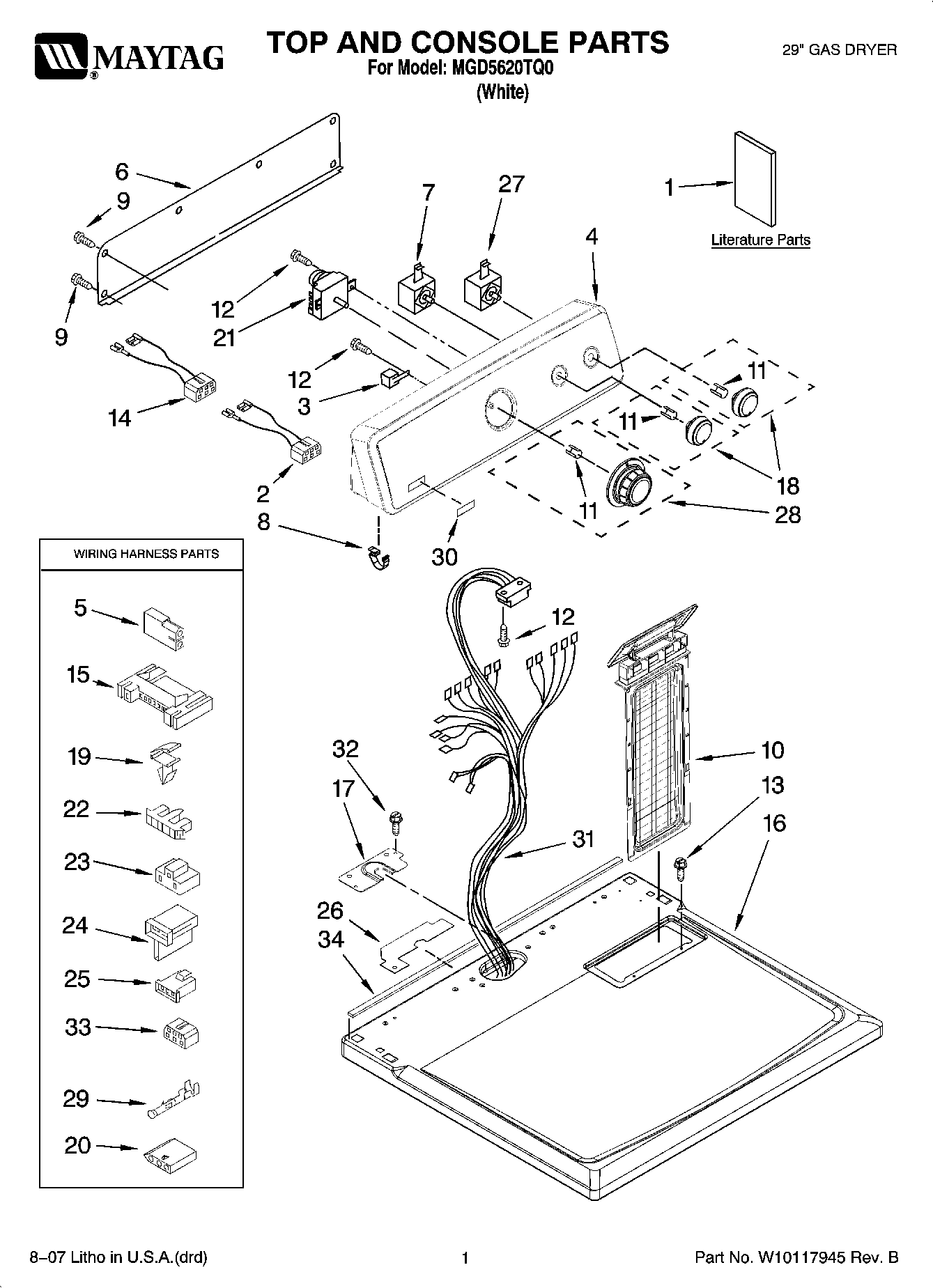

MGD5620TQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10088775
1	MAY W10089170
1	MAY 8578217
2	WIRE, JUMPER (BUZZER)
3	MAY 694419
4	Console & Shell Assembly (Includes Items 5 & 6)
5	Plug, 2-Way Terminal
6	Panel, Rear
7	Switch, Temperature
8	MAY 8312709
9	Screw
10	Screen, Lint
11	CLIP, SPRING
12	MAY 8533971
13	SCREW
14	MAY W10110861
15	CONNECTOR (MOTOR)
16	MAY W10112597
17	MAY 8565981
18	Knob, Control (3)
19	CLIP, HARNESS
20	MAY 3936144
21	Timer Assembly (60 Hz.)
22	Connector-Timer
23	Connector (PTS) Relay
24	CONNECTOR, 2-POSITION (GAS VALVE)
25	MAY 3403498
26	MAY W10118608
27	MAY W10117655
28	Timer-Knob Assembly
29	Terminal
30	MAY W10112569
31	MAY W10110866
32	Screw, 8-18 x 3/4
33	Connector
34	Seal, Foam Console Bracket
