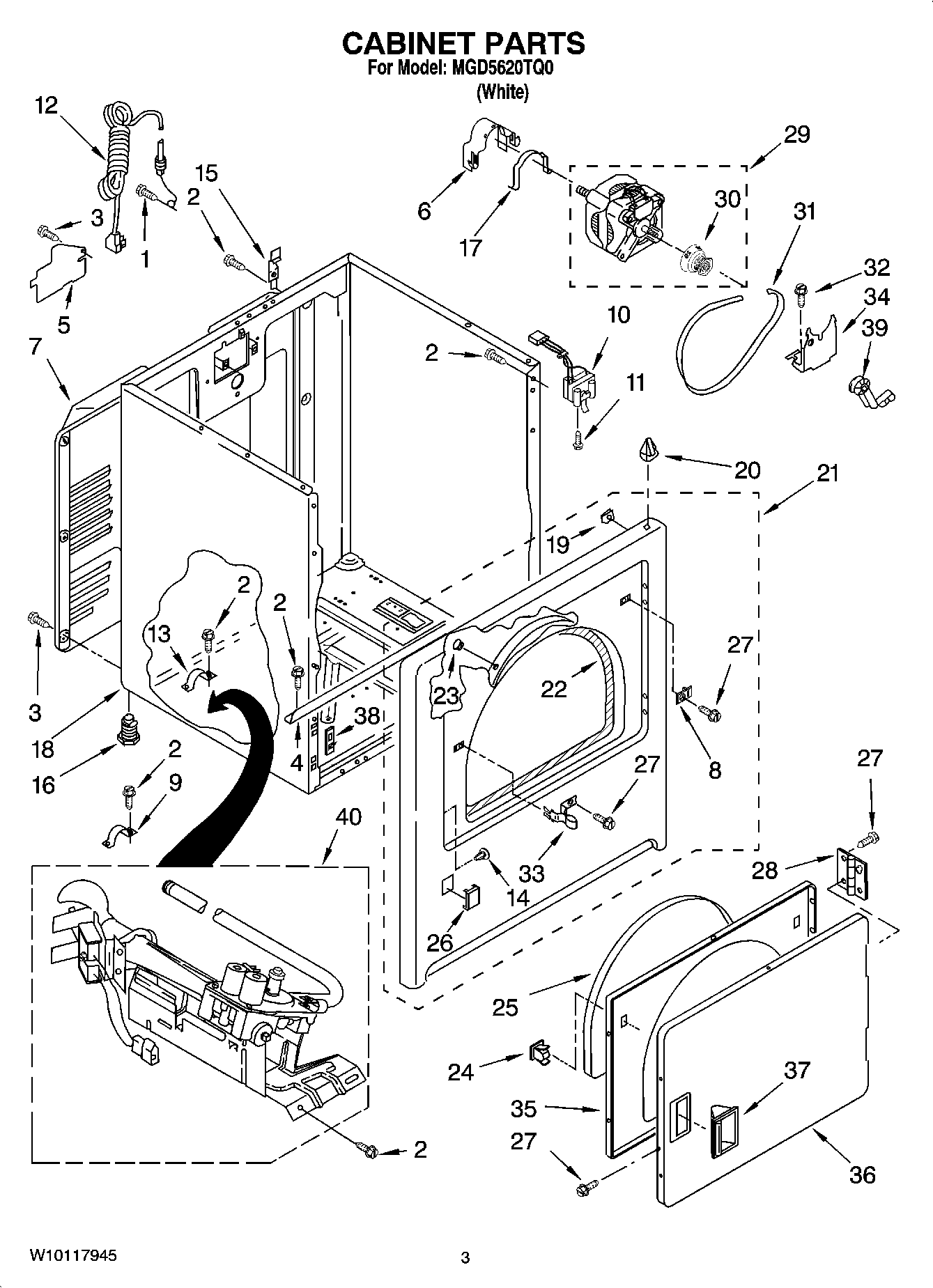

MGD5620TQ0 02 – CABINET PARTS

Products

Position	Product
1	Screw, 8-18 x 5/8 (External Ground)
2	SCREW
3	Screw
4	MAY 8541400
5	MAY 3396795
6	Clamp, Motor (With Shield)
7	MAY 3396805
8	PLUG-STRIKE
9	MAY 3980175
10	Switch, Door
11	SCREW
12	MAY 344020
13	MAY 341029
14	PLUG, HINGE HOLES
15	Hinge, Top
16	MAY 3392100
16	MAY 279810
17	MAY 660658
18	CABINET (WHITE)
19	Clip, Ground
20	LOCK, FRONT TOP
21	MAY 3403447
22	MAY 3406129
23	Clip, Felt Pad
24	MAY 3406839
25	MAY 3405246
26	MAY 3394975
27	MAY 342055
28	HINGE AND PIN ASSEMBLY
29	MAY 8066206
30	Pulley, Motor
31	MAY W10131364
32	BOLT
33	Strike, Door
34	MAY 348780
35	Door, Rear
36	DOOR FRONT
37	Handle, Door
38	MAY 3394083
39	IDLER ASSEMBLY
40	Burner Assembly 60 Hz. (Type 1) (White Rodgers)
