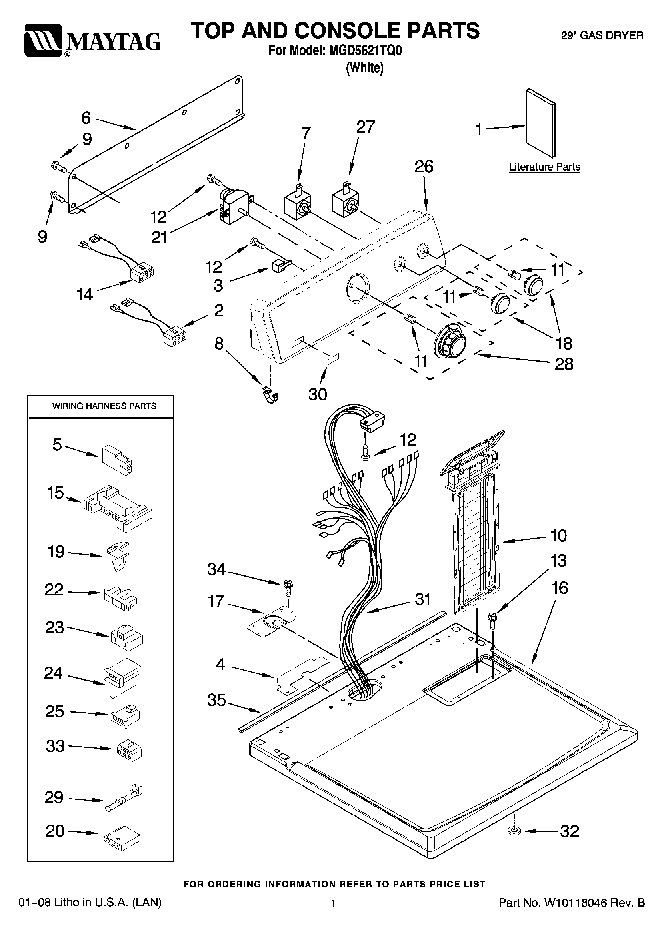

MGD5621TQ0 01 – TOP AND CONSOLE PARTS

MGD5621TQ0 01 – TOP AND CONSOLE PARTS

Written by

in

MGD5621TQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10150653
1MAY 8576817
1MAY W10150652
1MAY W10151609
1MAY W10151610
2WIRE, JUMPER (BUZZER)
3MAY 694419
4MAY W10118608
5Plug, 2-Way Terminal
6Panel, Rear
7MAY 3399640
8MAY 8312709
9Screw
10Screen, Lint
11CLIP, SPRING
12MAY 8533971
13SCREW
14MAY W10113107
15CONNECTOR (MOTOR)
16MAY W10112597
17MAY 8565981
18Knob, Control (3)
19CLIP, HARNESS
20MAY 3936144
21Timer Assembly (60 Hz.)
22Connector-Timer
23Connector (PTS) Relay
24CONNECTOR, 2-POSITION (GAS VALVE)
25MAY 3403498
26MAY W10086706
27MAY W10117655
28Timer-Knob Assembly
29Terminal
30MAY W10112569
31MAY W10110866
32Washer (Top/Chute)
33Connector
34Screw, 8-18 x 3/4
35Seal, Foam Console Bracket
