MGD5630HW4 06 – DOOR PARTS

MGD5630HW4 06 – DOOR PARTS

Written by

in

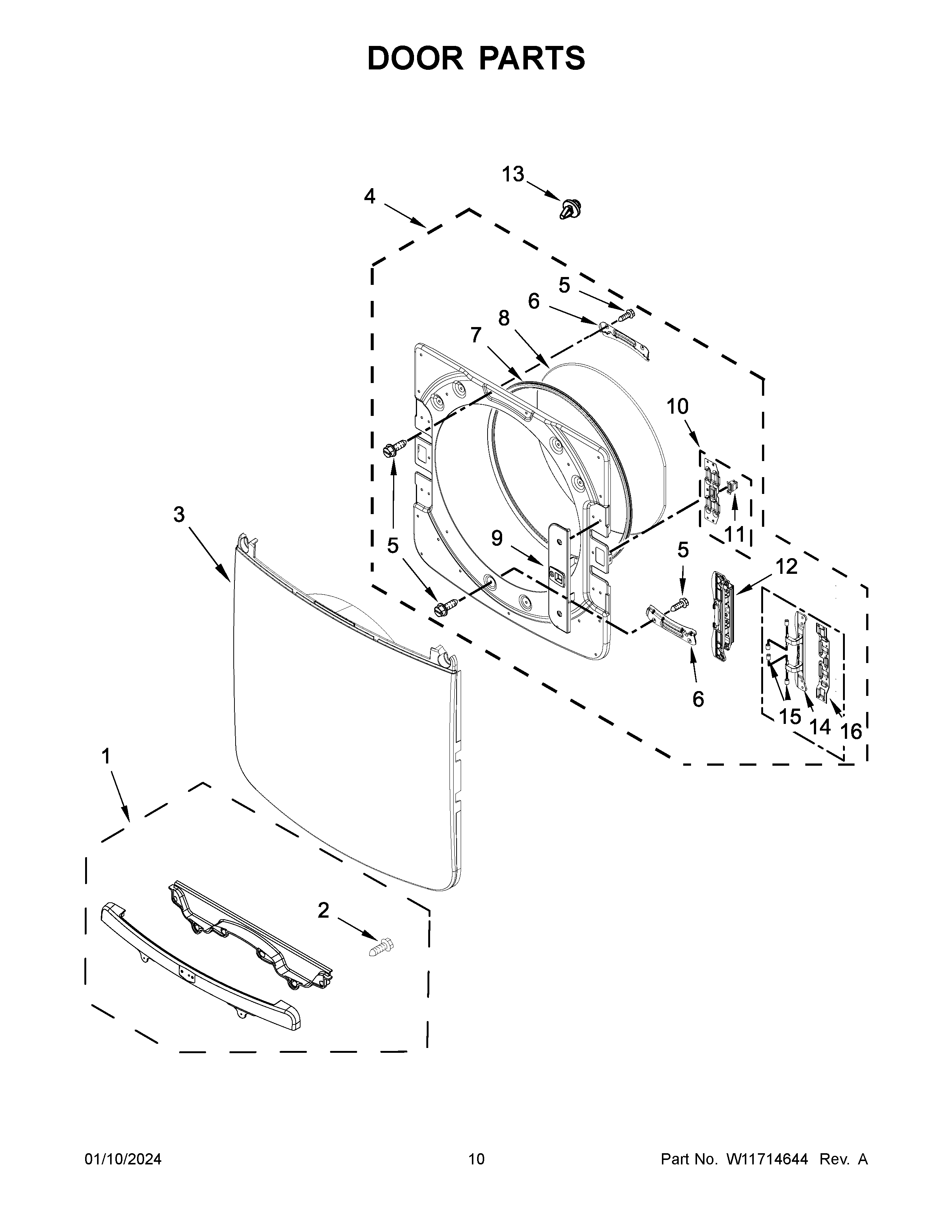

MGD5630HW4 06 – DOOR PARTS

Products

Position	Product
1	W10626039 Whirlpool Handle
2	SCREW
3	W11310052 Whirlpool Door
4	W11465962 Whirlpool Door Assembly
5	SCREW
6	BRACKET, GLASS
7	W11310035 Whirlpool Seal
8	W11310036 Whirlpool Door Glass
9	W11310050 Whirlpool Cover Assembly
10	WPW10208254 Whirlpool Catch
11	W11240283 Whirlpool Catch Assembly
12	HINGE
13	W11310051 Whirlpool Bumper
14	HINGE
15	WPW10208398 Whirlpool Hinge Pin Cap
16	WPW10208419 Whirlpool Plate
