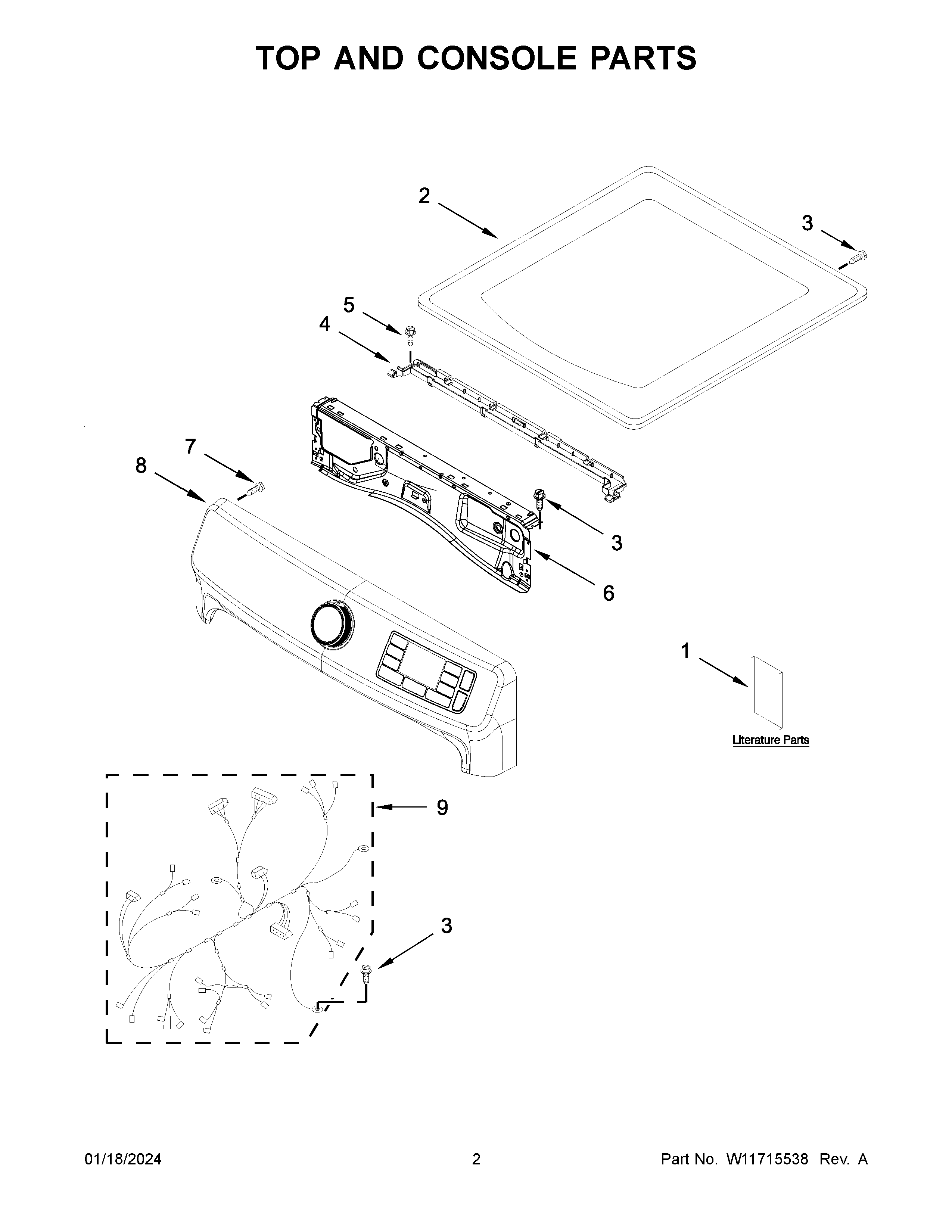

MGD5630MBK1 02 – TOP AND CONSOLE PARTS

MGD5630MBK1 02 – TOP AND CONSOLE PARTS

Written by

in

MGD5630MBK1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BWIRING DIAGRAM
1ATECH SHEET
1OWNERS MANUAL
1CQUICK START GUIDE
2W11315730 Whirlpool Top
3WP693995 Whirlpool Screw
4W11310027 Whirlpool Bracket
5W11686675 Whirlpool Screw
6W11480682 Whirlpool Bracket
7WP8533993 Whirlpool Refrigerator Screw
8W11636632 Whirlpool Console + Core
9W11157863 Whirlpool Wire Harness
