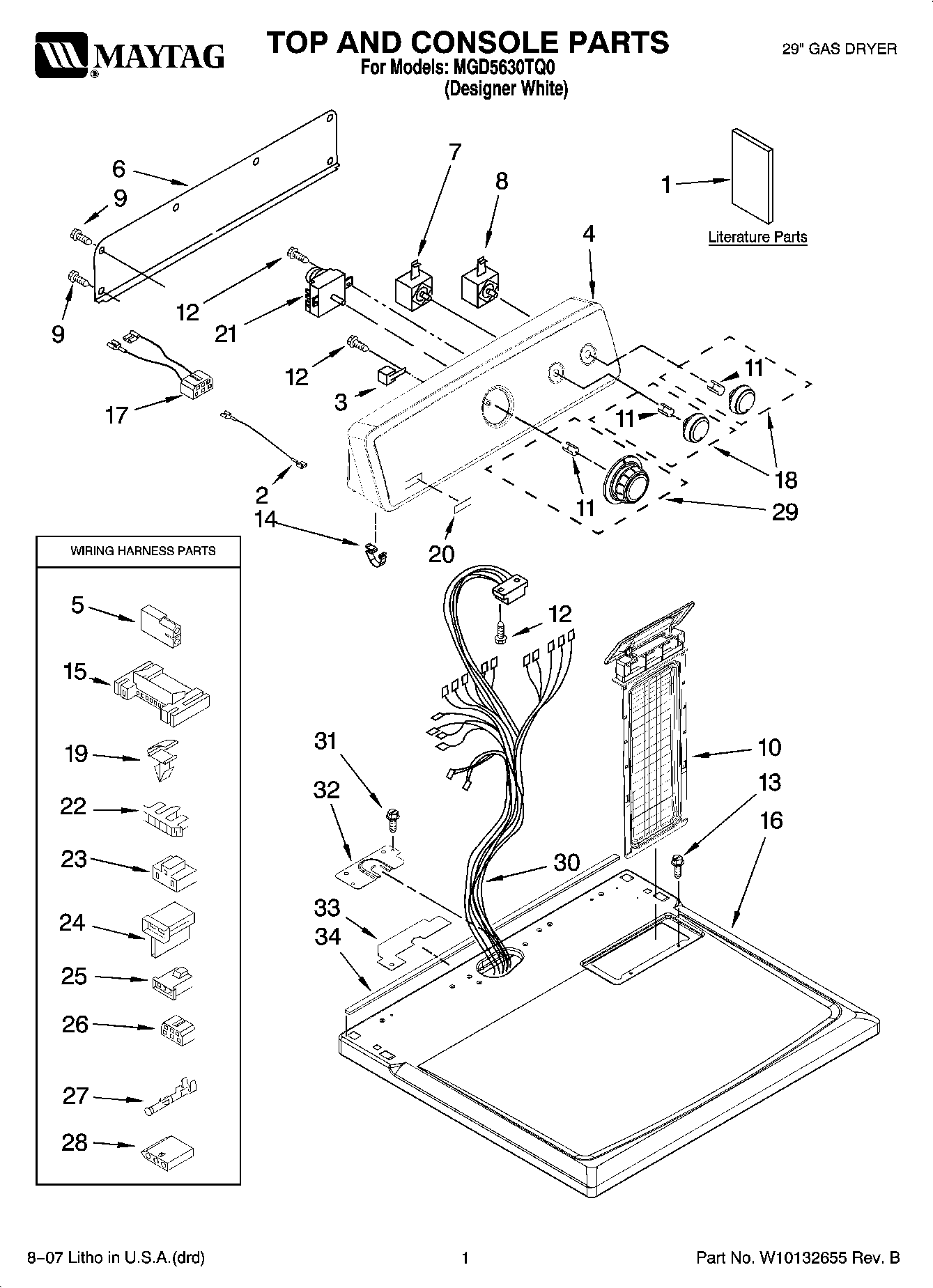

MGD5630TQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10089170
1	MAY W10088775
1	MAY 8576817
2	WIRE, JUMPER (BUZZER)
3	MAY 694419
4	Console & Shell Assembly (Includes Items 5 & 6)
5	Plug, 2-Way Terminal
6	Panel, Rear
7	MAY 3399640
8	MAY W10117655
9	Screw
10	Screen, Lint
11	CLIP, SPRING
12	MAY 8533971
13	SCREW
14	MAY 8312709
15	CONNECTOR (MOTOR)
16	MAY W10112597
17	MAY W10113107
18	Knob, Control (3)
19	CLIP, HARNESS
20	MAY W10112569
21	Timer Assembly (60 Hz.)
22	Connector-Timer
23	Connector (PTS) Relay
24	CONNECTOR, 2-POSITION (GAS VALVE)
25	MAY 3403498
26	Connector
27	Terminal
28	MAY 3936144
29	Timer-Knob Assembly
30	MAY W10110866
31	Screw, 8-18 x 3/4
32	MAY 8565981
33	MAY W10118608
34	Seal, Foam Console Bracket
