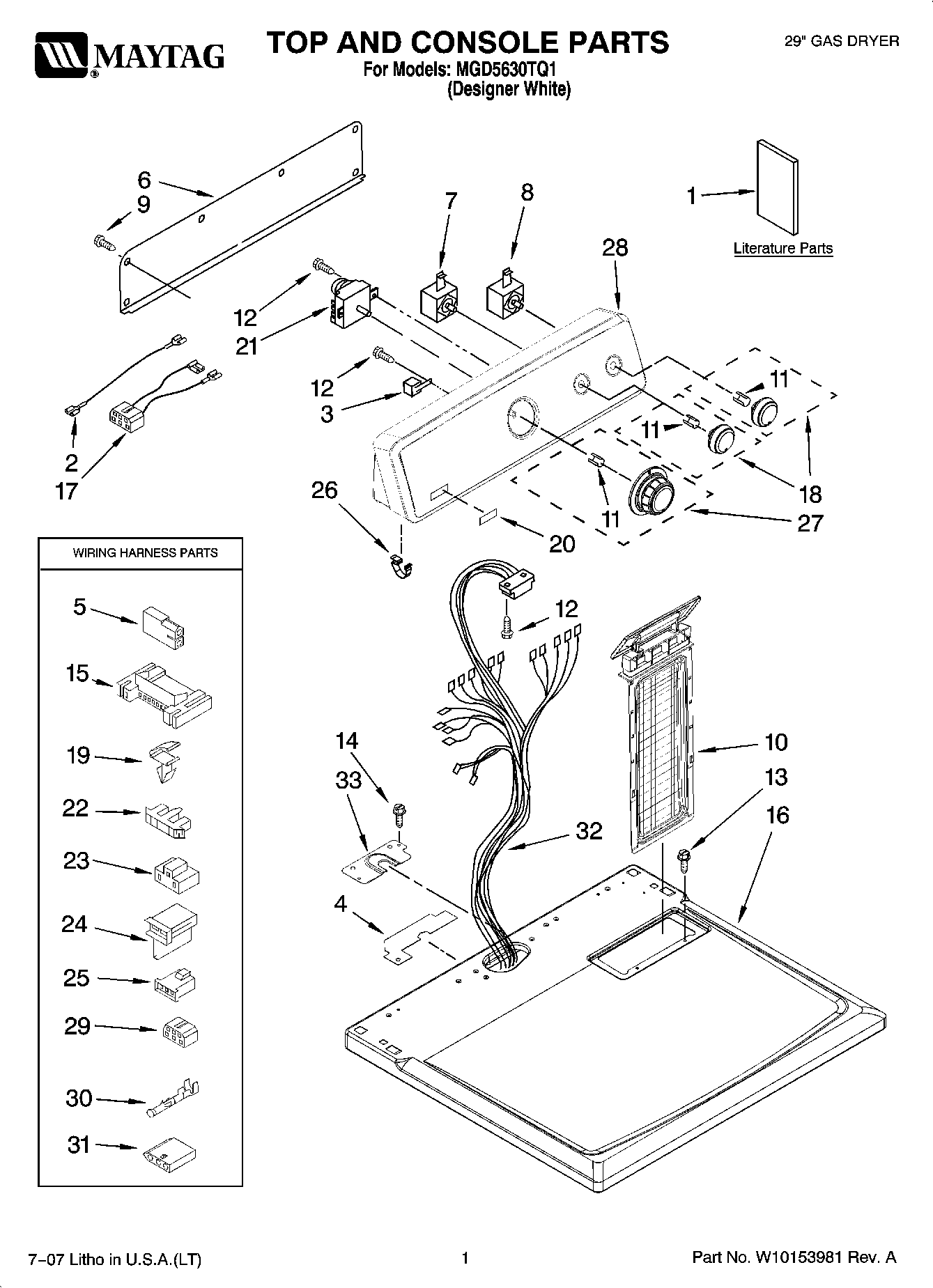

MGD5630TQ1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10089170
1	MAY W10088775
1	MAY 8576817
2	WIRE, JUMPER (BUZZER)
3	MAY 694419
4	Seal-Harness
5	Plug, 2-Way Terminal
6	MAY W10112577
7	MAY 3399640
8	MAY W10117655
9	Screw
10	Screen, Lint
11	CLIP, SPRING
12	MAY 8533971
13	SCREW
14	Screw, 8-18 x 3/4
15	CONNECTOR (MOTOR)
16	MAY W10112597
17	MAY W10113107
18	Knob, Control (3)
19	CLIP, HARNESS
20	MAY W10112569
21	Timer Assembly (60 Hz.)
22	Connector-Timer
23	Connector (PTS) Relay
24	CONNECTOR, 2-POSITION (GAS VALVE)
25	MAY 3403498
26	MAY 8312709
27	Timer-Knob Assembly
28	Console & Shell Assembly (Includes Items 5 & 6)
29	Connector
30	Terminal
31	MAY 3936144
32	MAY W10110992
33	MAY W10112578
