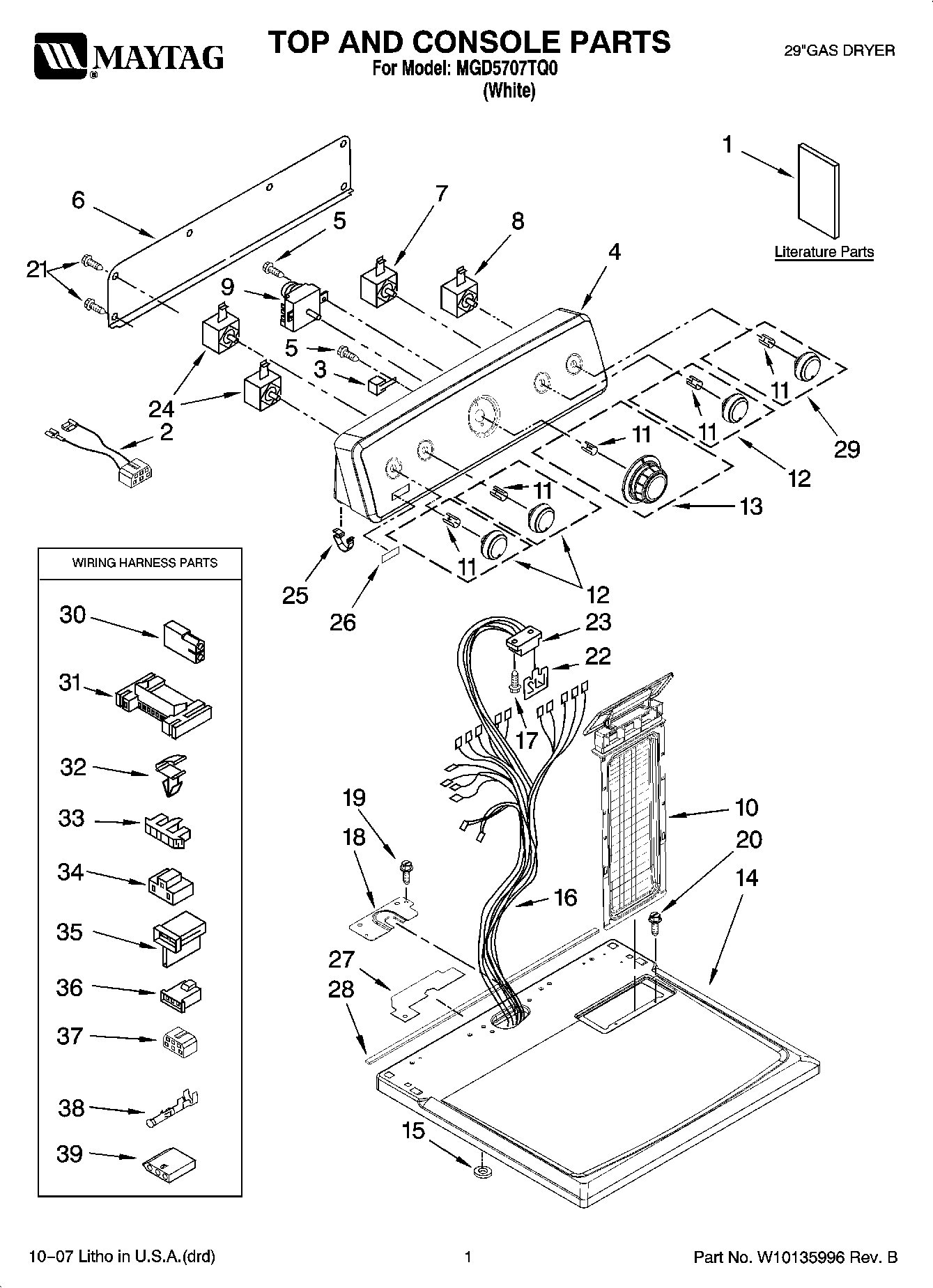

MGD5707TQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10088775
1	MAY W10124167
1	MAY W10089177
2	MAY W10124166
3	MAY 694419
4	Control & Console Panel Assembly (Includes Illus. 27)
5	MAY 8533971
6	Panel, Rear
7	Switch, Rotary Temperature
8	Switch, Push-To-Start
9	TIMER ASSEMBLY (60 HZ.)
10	Screen, Lint
11	CLIP, SPRING
12	Knob, Control (3)
13	MAY W10112584
14	MAY W10112599
15	Washer (Top/Chute)
16	MAY W10120796
17	MAY 359625
18	MAY 8565981
19	Screw, 8-18 x 3/4
20	SCREW
21	Screw
22	MAY 8558178
23	MAY 3391885
24	MAY 3405156
25	MAY 8312709
26	MAY W10112589
27	MAY W10118608
28	Seal, Foam Console Bracket
29	MAY W10112586
30	Plug, 2-Way Terminal
31	CONNECTOR (MOTOR)
32	CLIP, HARNESS
33	Connector-Timer
34	Connector (PTS) Relay
35	CONNECTOR, 2-POSITION (GAS VALVE)
36	MAY 3403498
37	Connector
38	Terminal
39	MAY 3936144
