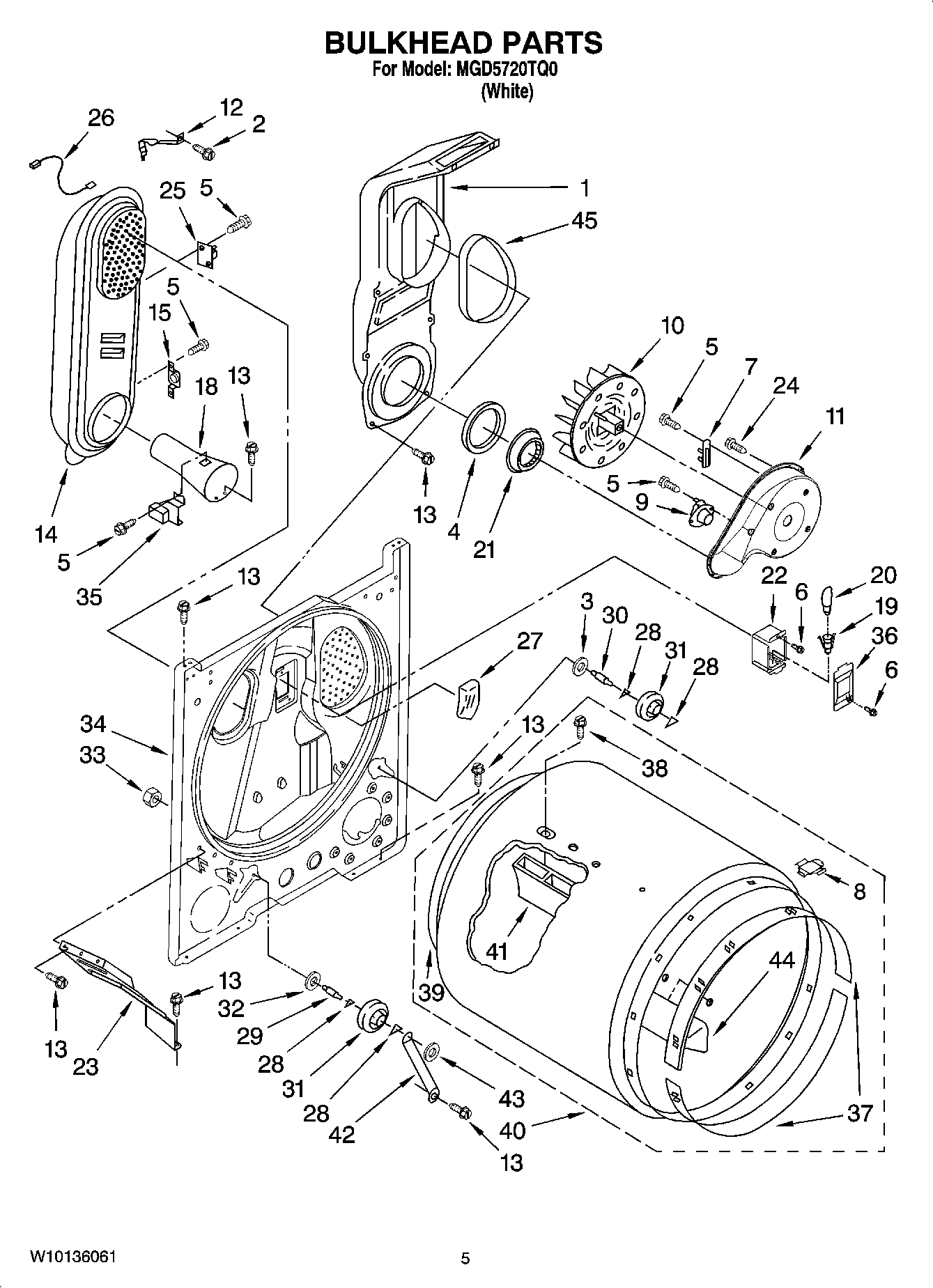

MGD5720TQ0 03 – BULKHEAD PARTS

Products

Position	Product
1	MAY 348368
2	Screw
3	WASHER
4	MAY 347139
5	SCREW,8-18 X 3/8
6	MAY 487909
7	Fuse, Thermal (91 C)
8	Plug, Drum Hole
9	MAY 8318268
10	Wheel, Blower
11	MAY 8577230
12	CLIP HEATER BOX
13	SCREW
14	BOX, HEATER (96C)
15	Thermostat, 205 F (96C)
18	FUNNEL, BURNER LIGHT
19	MAY W10136369
20	MAY 3406124
21	MAY 696302
22	MAY 3977373
23	BRACKET, BULKHEAD CHUTE
24	SCREW
25	Thermal Cutoff (Includes Illus. 48)
26	WIRE JUMPER
27	MAY 3976479
28	WASHER, TRI RING
29	MAY 3399506
30	MAY 3399507
31	MAY 3397590
32	WASHER
33	Nut, 3/8-16
34	MAY 3403414
35	MAY 338906
36	MAY 3402841
37	Bearing, Ring
38	MAY W10109200
39	MAY 3406130
40	MAY 695587
41	BAFFLE, DRUM (LONG)
42	MAY 3976434
43	NUT, PUSH ON
44	BAFFLE, DRUM (SHORT)
45	MAY 339956
