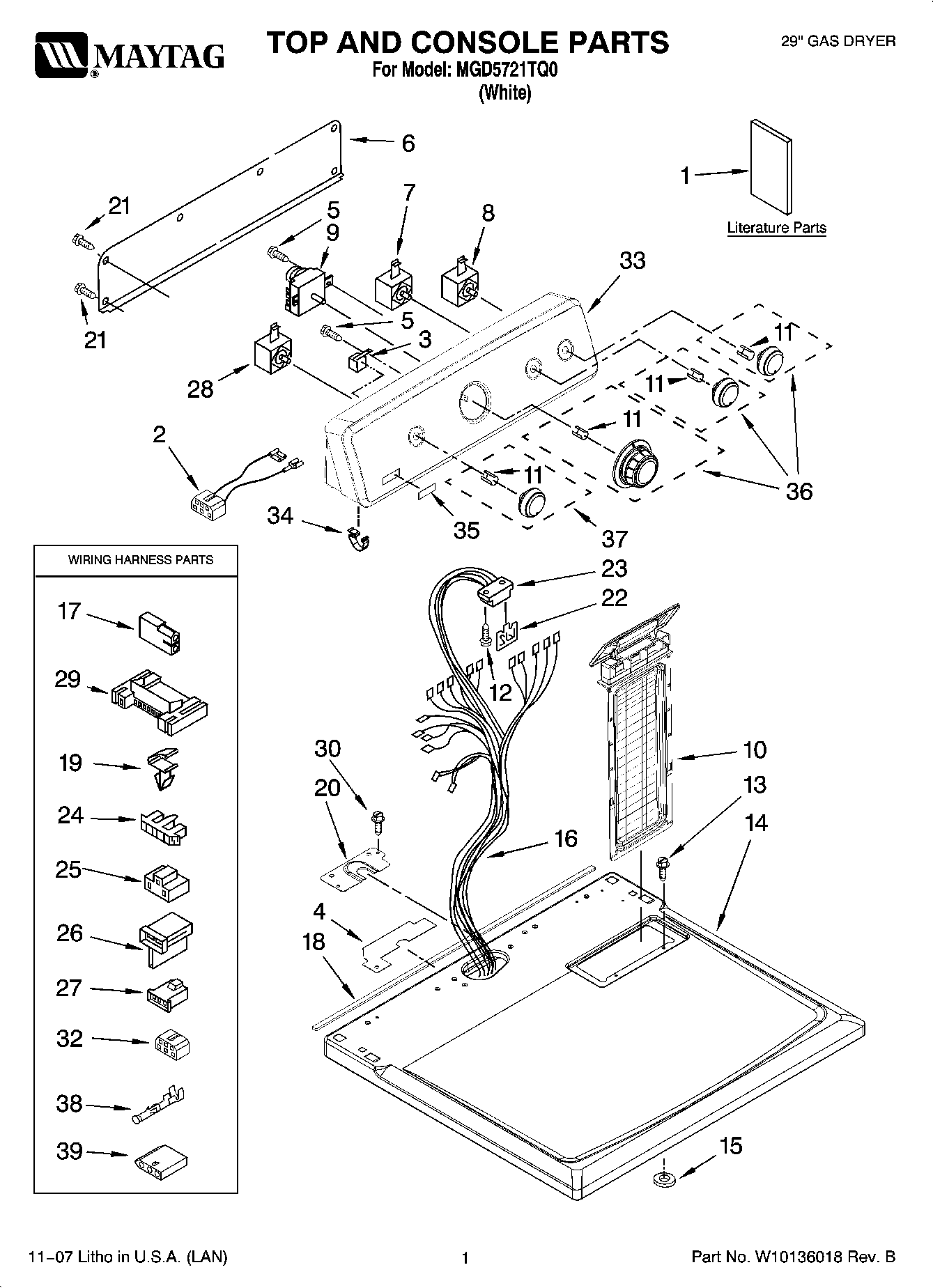

MGD5721TQ0 01 – TOP AND CONSOLE PARTS

MGD5721TQ0 01 – TOP AND CONSOLE PARTS

Written by

in

MGD5721TQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10150648
1MAY 8578889
1MAY W10151609
2WIRE, JUMPER (BUZZER)
3MAY 694419
4MAY W10118608
5MAY 8533971
6Panel, Rear
7MAY 3405155
8MAY W10117655
9TIMER ASSEMBLY (60 HZ.)
10Screen, Lint
11CLIP, SPRING
12MAY 359625
13SCREW
14MAY W10112599
15Washer (Top/Chute)
16MAY W10113074
17Plug, 2-Way Terminal
18Seal, Foam Console Bracket
19CLIP, HARNESS
20MAY 8565981
21Screw
22MAY 8558178
23MAY 3391885
24Connector-Timer
25Connector (PTS) Relay
26CONNECTOR, 2-POSITION (GAS VALVE)
27MAY 3403498
28MAY 3405156
29CONNECTOR (MOTOR)
30Screw, 8-18 x 3/4
32Connector
33MAY W10086726
34MAY 8312709
35MAY W10112569
36Timer-Knob Assembly
37Knob, Control (3)
38Terminal
39MAY 3936144
