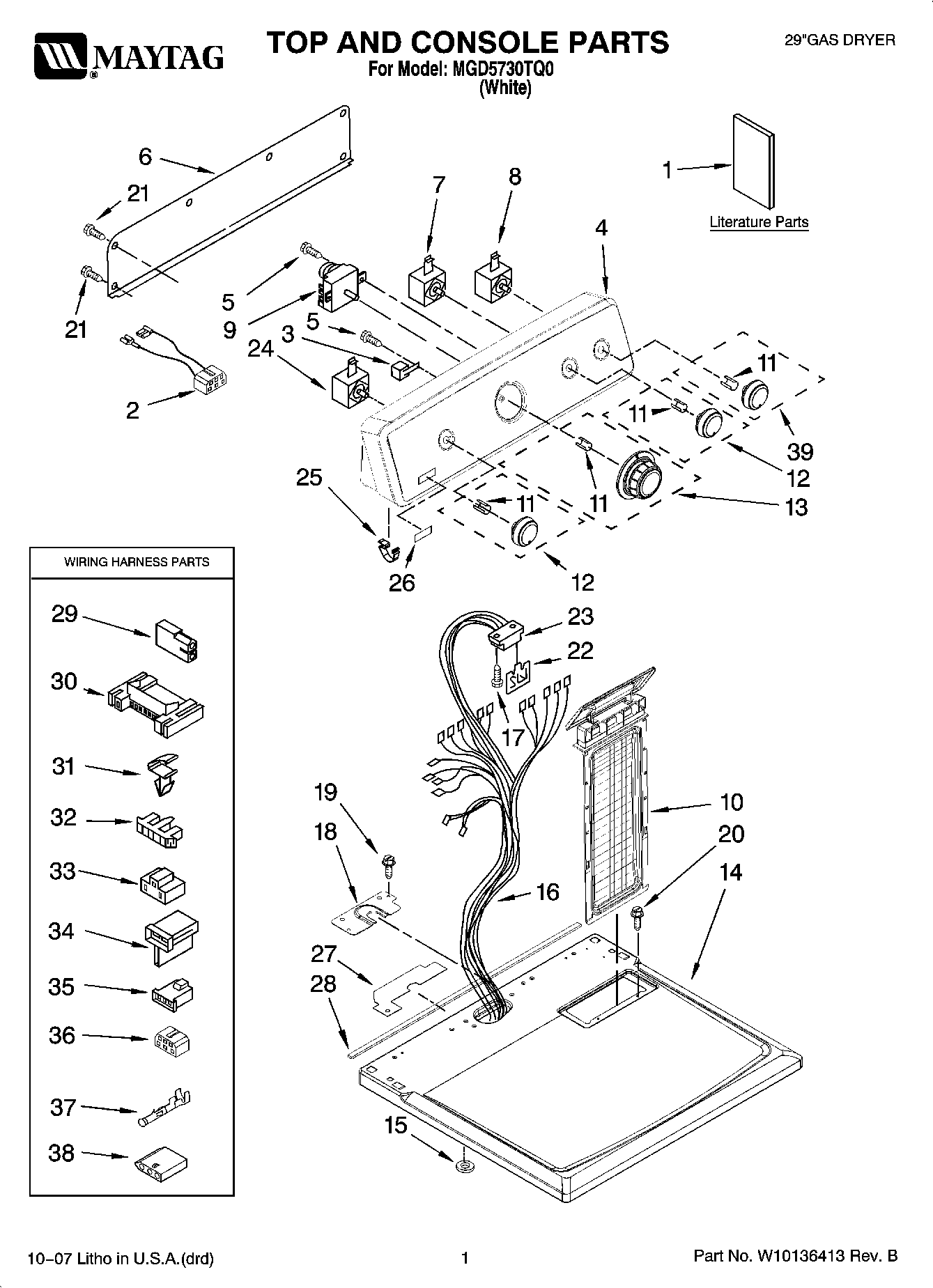

MGD5730TQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10119084
1	MAY W10150648
1	MAY W10151609
2	Wire, Jumper (Timer Buzzer)
3	MAY 694419
4	Console & Control Panel Assembly (Includes Illus. 27)
5	MAY 8533971
6	Panel, Rear
7	Switch, Rotary Temperature
8	Switch, Push-To-Start
9	TIMER ASSEMBLY (60 HZ.)
10	Screen, Lint
11	CLIP, SPRING
12	Knob, Control (3)
13	Timer-Knob Assembly
14	MAY W10112599
15	Washer (Top/Chute)
16	MAY W10120796
17	MAY 359625
18	MAY 8565981
19	Screw, 8-18 x 3/4
20	SCREW
21	Screw
22	MAY 8558178
23	MAY 3391885
24	MAY 3405156
25	MAY 8312709
26	MAY W10112569
27	MAY W10118608
28	Seal, Foam Console Bracket
29	Plug, 2-Way Terminal
30	CONNECTOR (MOTOR)
31	CLIP, HARNESS
32	Connector-Timer
33	Connector (PTS) Relay
34	CONNECTOR, 2-POSITION (GAS VALVE)
35	MAY 3403498
36	Connector
37	Terminal
38	MAY 3936144
39	MAY W10110031
