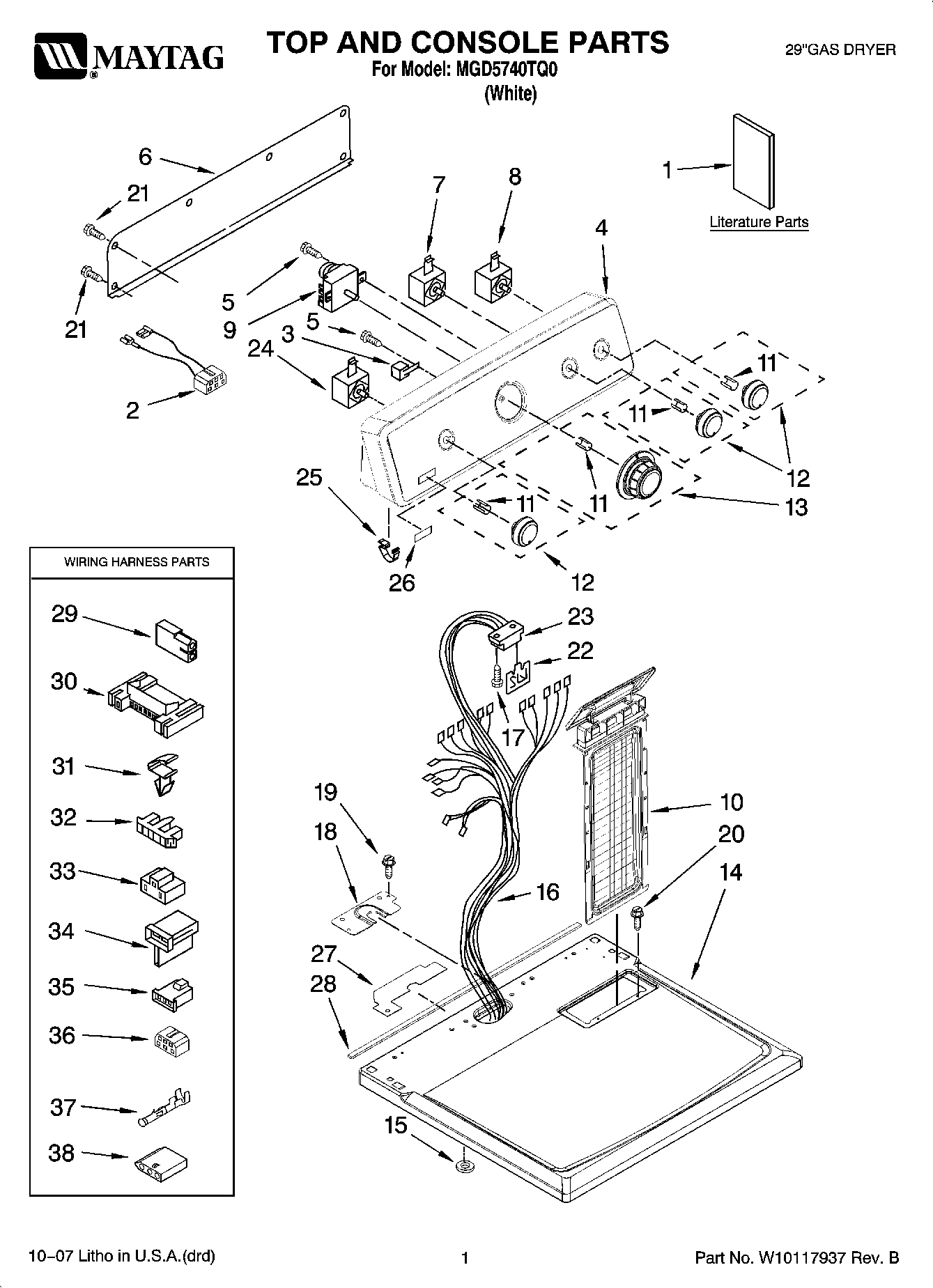

MGD5740TQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10089171
1MAY W10088775
1MAY W10118081
2WIRE, JUMPER (BUZZER)
3MAY 694419
4Console & Shell Assembly (Includes Items 12 & 13)
5MAY 8533971
6Panel, Rear
7MAY 3405155
8MAY W10117655
9TIMER ASSEMBLY (60 HZ.)
10Screen, Lint
11CLIP, SPRING
12Knob, Control (3)
13Timer-Knob Assembly
14MAY W10112599
15Washer (Top/Chute)
16MAY W10113074
17MAY 359625
18MAY 8565981
19Screw, 8-18 x 3/4
20SCREW
21Screw
22MAY 8558178
23MAY 3391885
24MAY 3405156
25MAY 8312709
26MAY W10112569
27MAY W10118608
28Seal, Foam Console Bracket
29Plug, 2-Way Terminal
30CONNECTOR (MOTOR)
31CLIP, HARNESS
32Connector-Timer
33Connector (PTS) Relay
34CONNECTOR, 2-POSITION (GAS VALVE)
35MAY 3403498
36Connector
37Terminal
38MAY 3936144
