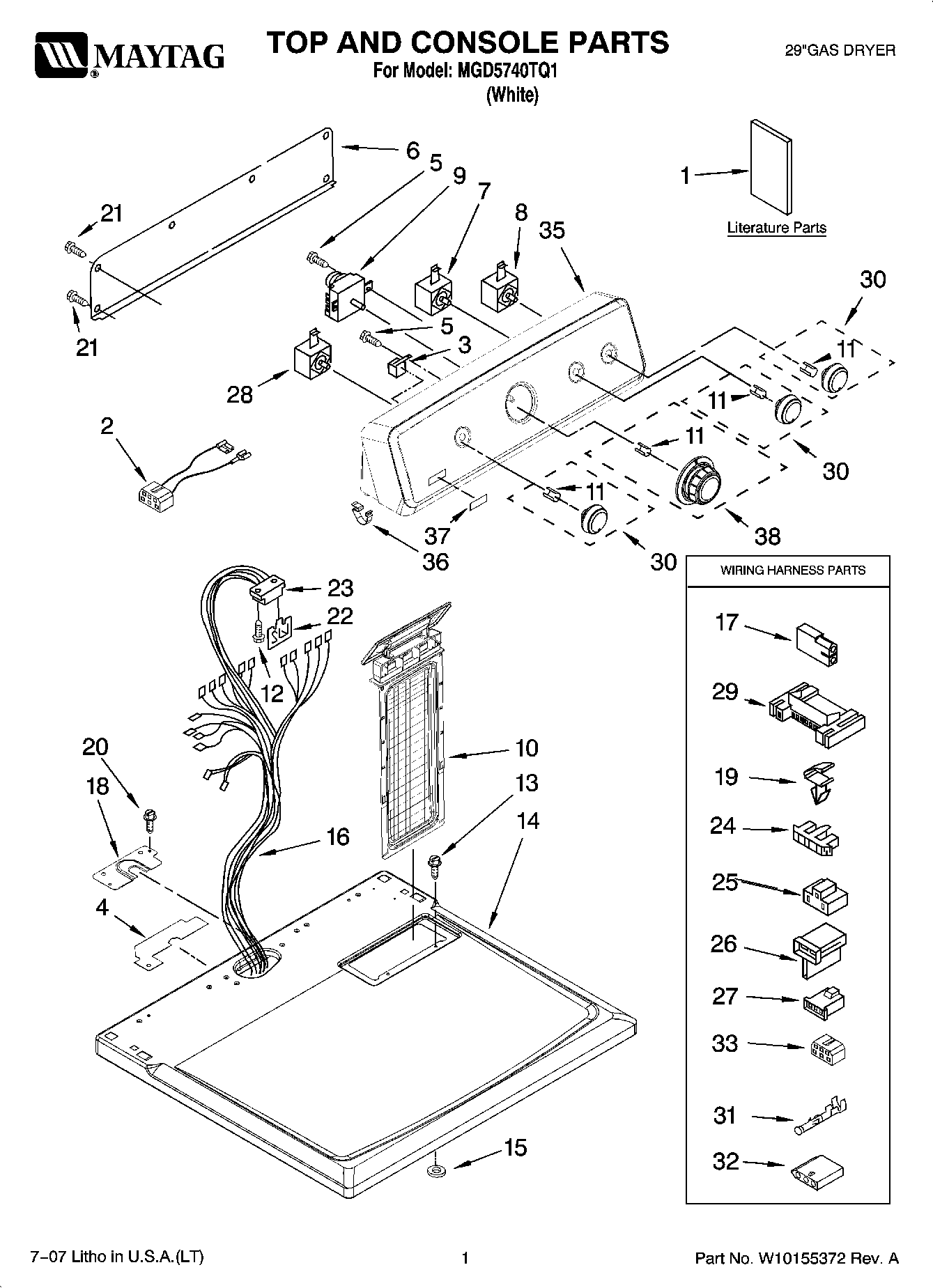

MGD5740TQ1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10088775
1	MAY W10089171
1	MAY W10118081
2	WIRE, JUMPER (BUZZER)
3	MAY 694419
4	Seal-Harness
5	MAY 8533971
6	MAY W10112577
7	MAY 3405155
8	MAY W10117655
9	TIMER ASSEMBLY (60 HZ.)
10	Screen, Lint
11	CLIP, SPRING
12	MAY 359625
13	SCREW
14	MAY W10112599
15	Washer (Top/Chute)
16	MAY W10110996
17	Plug, 2-Way Terminal
18	MAY W10112578
19	CLIP, HARNESS
20	Screw, 8-18 x 3/4
21	Screw
22	MAY 8558178
23	MAY 3391885
24	Connector-Timer
25	Connector (PTS) Relay
26	CONNECTOR, 2-POSITION (GAS VALVE)
27	MAY 3403498
28	MAY 3405156
29	CONNECTOR (MOTOR)
30	Knob, Control (3)
31	Terminal
32	MAY 3936144
33	Connector
35	Console & Shell Assembly (Includes Items 12 & 13)
36	MAY 8312709
37	MAY W10112569
38	Timer-Knob Assembly
