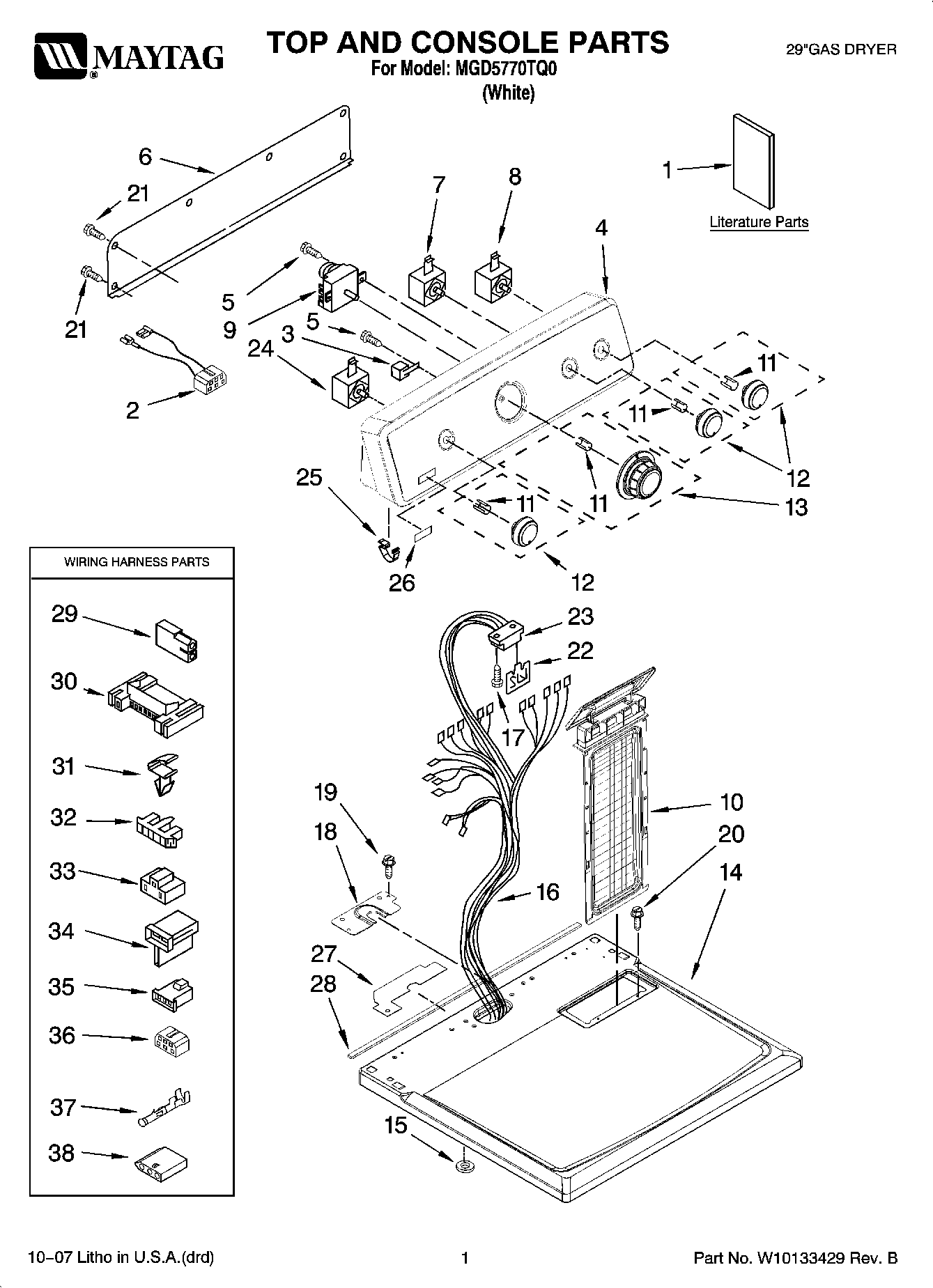

MGD5770TQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10089171
1MAY 8578889
1MAY W10088775
2WIRE, JUMPER (BUZZER)
3MAY 694419
4MAY W10086728
5MAY 8533971
6Panel, Rear
7MAY 3405155
8MAY W10117655
9TIMER ASSEMBLY (60 HZ.)
10Screen, Lint
11CLIP, SPRING
12Knob, Control (3)
13Timer-Knob Assembly
14MAY W10112599
15Washer (Top/Chute)
16MAY W10113074
17MAY 359625
18MAY 8565981
19Screw, 8-18 x 3/4
20SCREW
21Screw
22MAY 8558178
23MAY 3391885
24MAY 3405156
25MAY 8312709
26MAY W10112569
27MAY W10118608
28Seal, Foam Console Bracket
29Plug, 2-Way Terminal
30CONNECTOR (MOTOR)
31CLIP, HARNESS
32Connector-Timer
33Connector (PTS) Relay
34CONNECTOR, 2-POSITION (GAS VALVE)
35MAY 3403498
36Connector
37Terminal
38MAY 3936144
