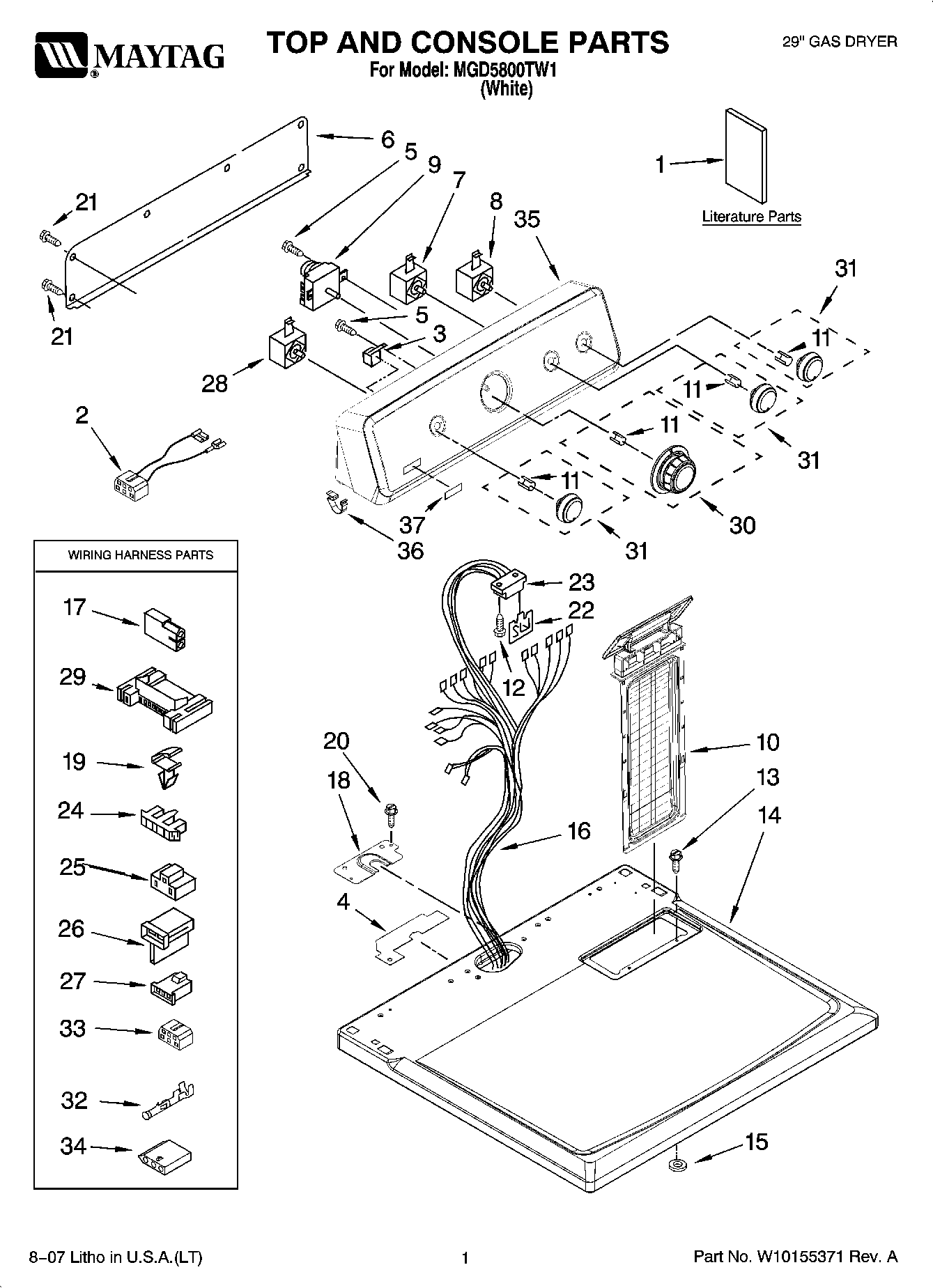

MGD5800TW1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10089171
1	MAY W10118081
1	MAY W10088775
2	WIRE, JUMPER (BUZZER)
3	MAY 694419
4	Seal-Harness
5	MAY 8533971
6	MAY W10112577
7	Switch, Rotary Temperature
8	MAY W10117655
9	TIMER ASSEMBLY (60 HZ.)
10	Screen, Lint
11	CLIP, SPRING
12	MAY 359625
13	SCREW
14	MAY W10112599
15	Washer (Top/Chute)
16	MAY W10111000
17	Plug, 2-Way Terminal
18	MAY W10112578
19	CLIP, HARNESS
20	Screw, 8-18 x 3/4
21	Screw
22	MAY 8558178
23	MAY 3391885
24	Connector-Timer
25	Connector (PTS) Relay
26	CONNECTOR, 2-POSITION (GAS VALVE)
27	MAY 3403498
28	MAY 3405156
29	CONNECTOR (MOTOR)
30	Knob, Timer
31	Knob, Control (3)
32	Terminal
33	Connector
34	MAY 3936144
35	Console & Control Panel Assembly (Includes Items. 12 & 27 )
36	MAY 8312709
37	MAY W10112569
