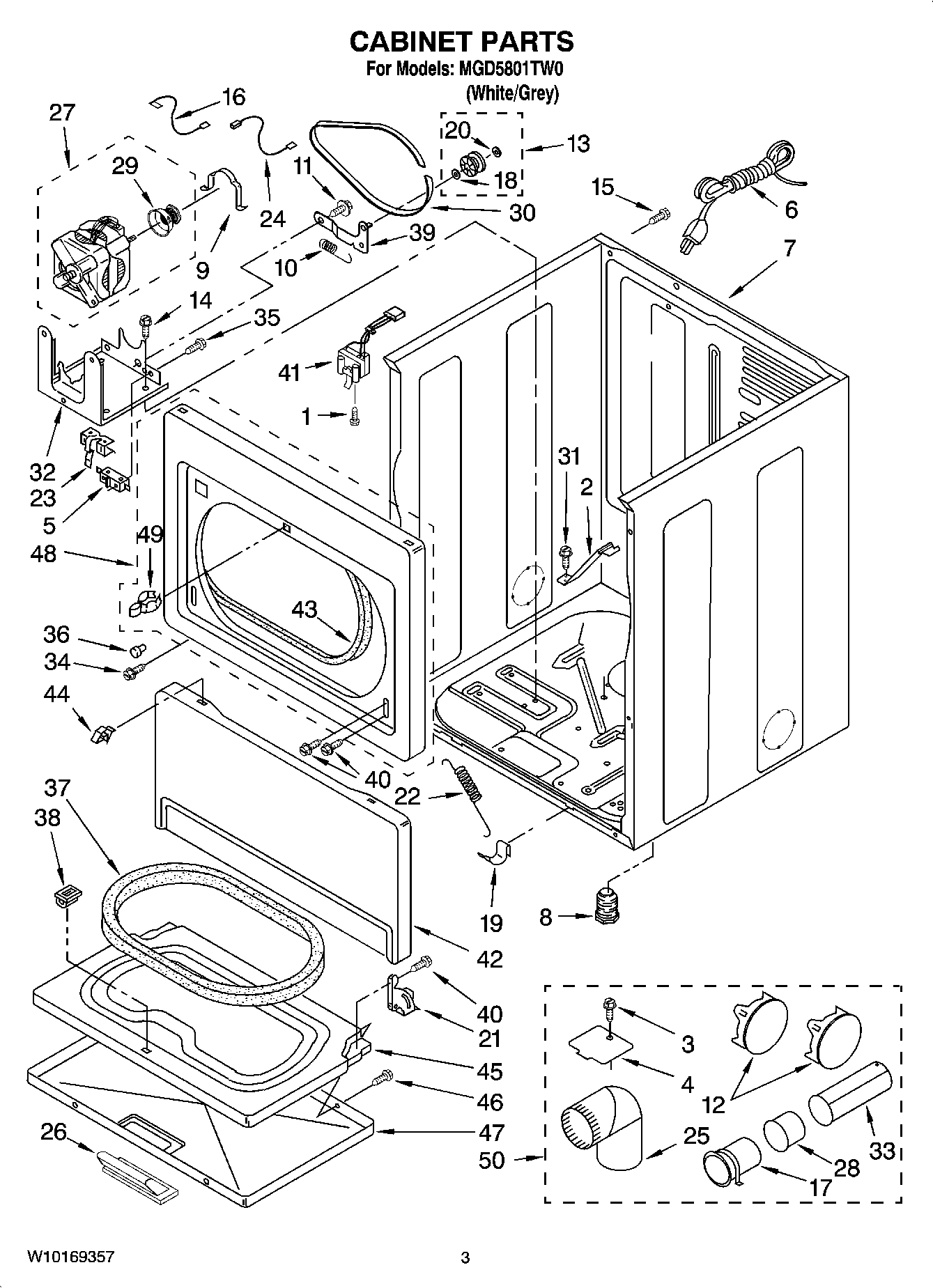

MGD5801TW0 02 – CABINET PARTS

Products

Position	Product
1	SCREW
2	MAY 8529757
3	MAY 488729
4	MAY 3394331
5	MAY 3394881
6	MAY 344020
7	MAY 8310656
8	MAY 3392100
8	MAY 279810
9	MAY 660658
10	MAY 3387374
11	SCREW
12	MAY 697750
13	ASSEMBLY, PULLEY
14	SCREW
15	MAY 8533974
16	Wire, Jumper (Broken Belt Switch)
17	PIPE, EXHAUST (MEDIUM)
18	MAY 233520
19	Clip (2)
20	MAY W10121334
21	Hinge & Pin Assembly (2) (Hinge (L.H.))
21	Hinge & Pin Assembly (2) (Hinge (R.H.))
22	Spring-Door
23	MAY 8066120
24	MAY 3394081
25	MAY 49026
26	Handle, Door (White)
27	Motor Assembly 60 HZ.
28	MAY 8563750
29	Pulley 60 HZ.
30	MAY 3387610
31	Screw
32	MAY 3387118
33	PIPE, EXHAUST (LONG)
34	SCREW
35	Screw, 6-20 x 1-1/16
36	BUMPER
37	MAY 3390736
38	Catch, Door
39	MAY 3388674
40	SCREW
41	Switch, Door
42	Toe Panel (Includes Item. 2) (White)
43	MAY 3387242
44	RETAINER
45	MAY 697655
46	MAY 694091
47	MAY 697221
48	Upper Front Panel
49	MAY 696144
50	MAY 279818
