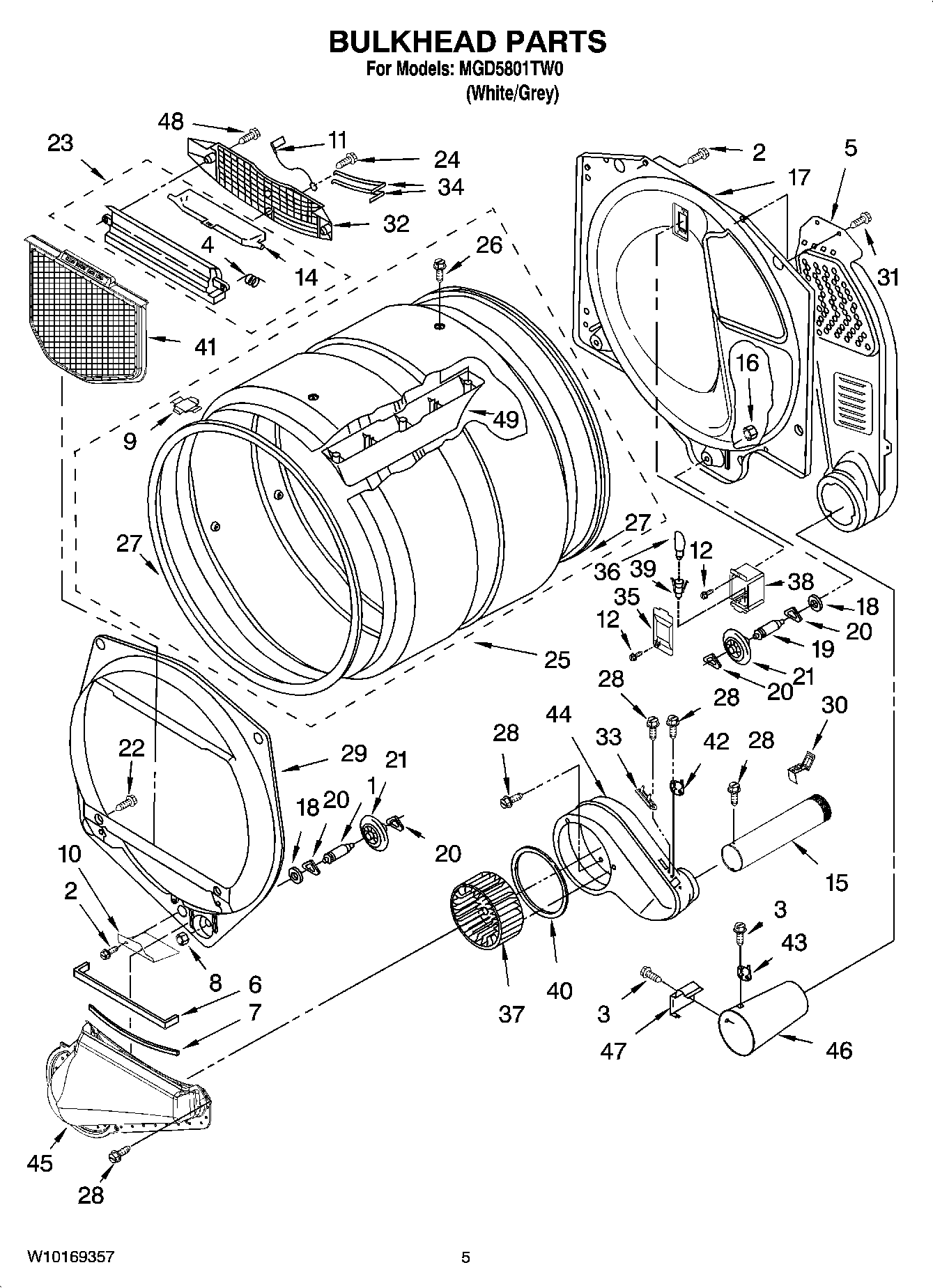

MGD5801TW0 03 – BULKHEAD PARTS

Products

PositionProduct
1MAY 8575324
2SCREW
3SCREW,8-18 X 3/8
4Spring, Lint Screen Door
5MAY 3394346
6MAY 697813
7MAY 697814
8NUT, HEX
9Plug, Drum Hole
10MAY W10128629
11Wire
12MAY 487909
14MAY 3394984
15PIPE, EXHAUST
16NUT, HEX (LEFT HAND THREAD)
17MAY 8520836
18WASHER
19MAY 8575325
20WASHER, TRI RING
21MAY 8536973
22Screw, 8-18 x 1/2
23MAY 3394985
24MAY 359625
25Complete Drum Assembly
26MAY W10109200
27MAY 697694
28MAY 8533971
29BULKHEAD, FRONT
30CLIP, EXHAUST
31Screw
32MAY 8299979
33Fuse, Thermal (91 C)
34SENSOR, ELECTRODE
35MAY 3402841
36MAY 3406124
37MAY 697772
38MAY 3977373
39MAY W10136369
40SEAL, PLATE COVER
41MAY 8066170
42MAY 8318268
43Thermostat, 205 F (96C)
44MAY 8544362
45Lint Duct Assembly
46MAY 8066047
47MAY 338906
48SCREW
49BAFFLE, DRUM
