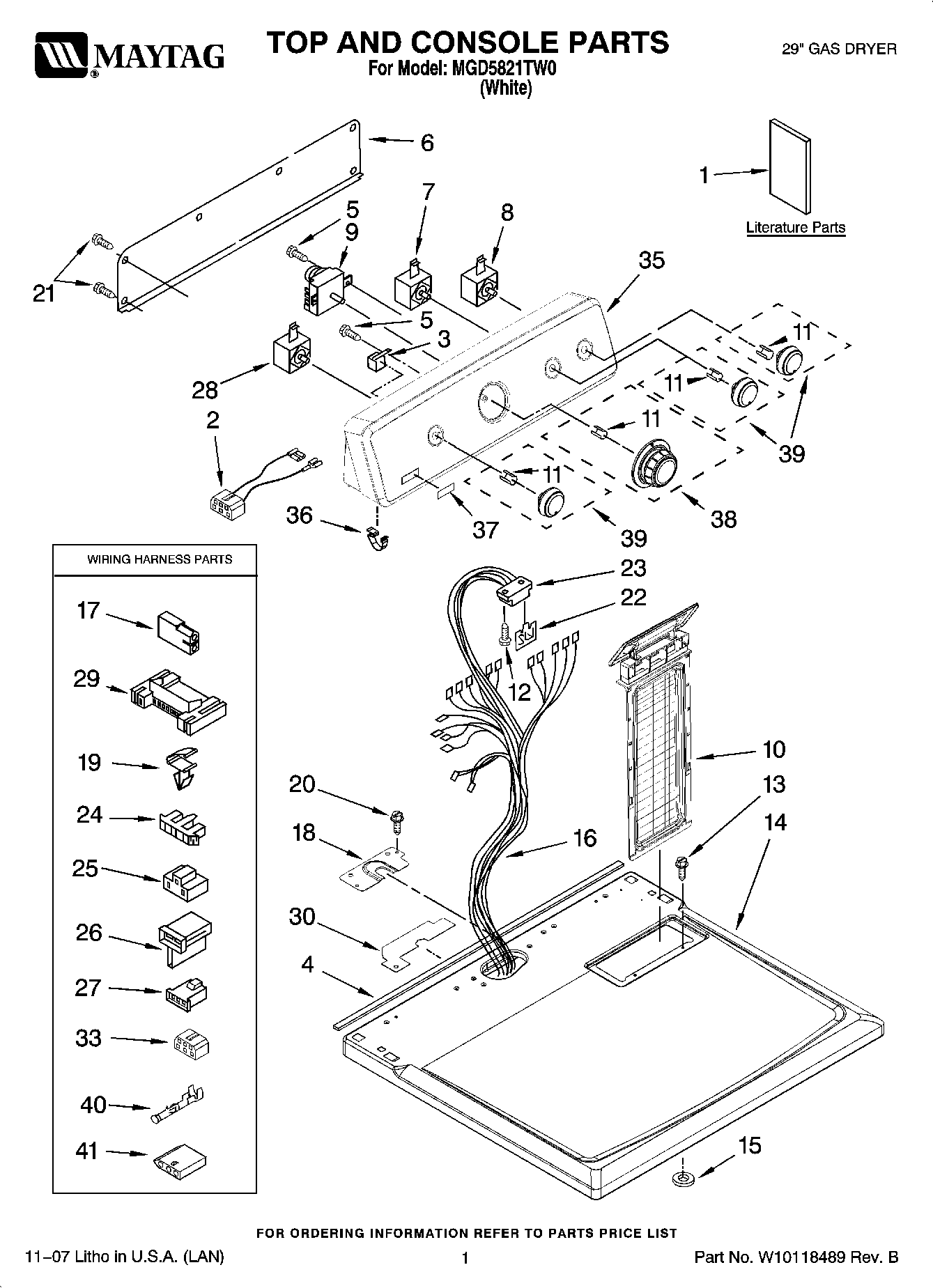

MGD5821TW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10150648
1	MAY 8576803
1	MAY W10151609
2	WIRE, JUMPER (BUZZER)
3	MAY 694419
4	Seal, Foam Console Bracket
5	MAY 8533971
6	Panel, Rear
7	MAY 3405155
8	MAY W10117655
9	MAY 3406725
10	Screen, Lint
11	CLIP, SPRING
12	MAY 359625
13	SCREW
14	MAY W10112599
15	Washer (Top/Chute)
16	MAY W10113073
17	Plug, 2-Way Terminal
18	MAY 8565981
19	CLIP, HARNESS
20	Screw, 8-18 x 3/4
21	Screw
22	MAY 8558178
23	MAY 3391885
24	Connector-Timer
25	Connector (PTS) Relay
26	CONNECTOR, 2-POSITION (GAS VALVE)
27	MAY 3403498
28	Switch Rotary (Twist Mount)
29	CONNECTOR (MOTOR)
30	MAY W10118608
33	Connector
35	MAY W10086714
36	MAY 8312709
37	MAY W10112569
38	Knob, Timer
39	Knob, Control (3)
40	Terminal
41	MAY 3936144
