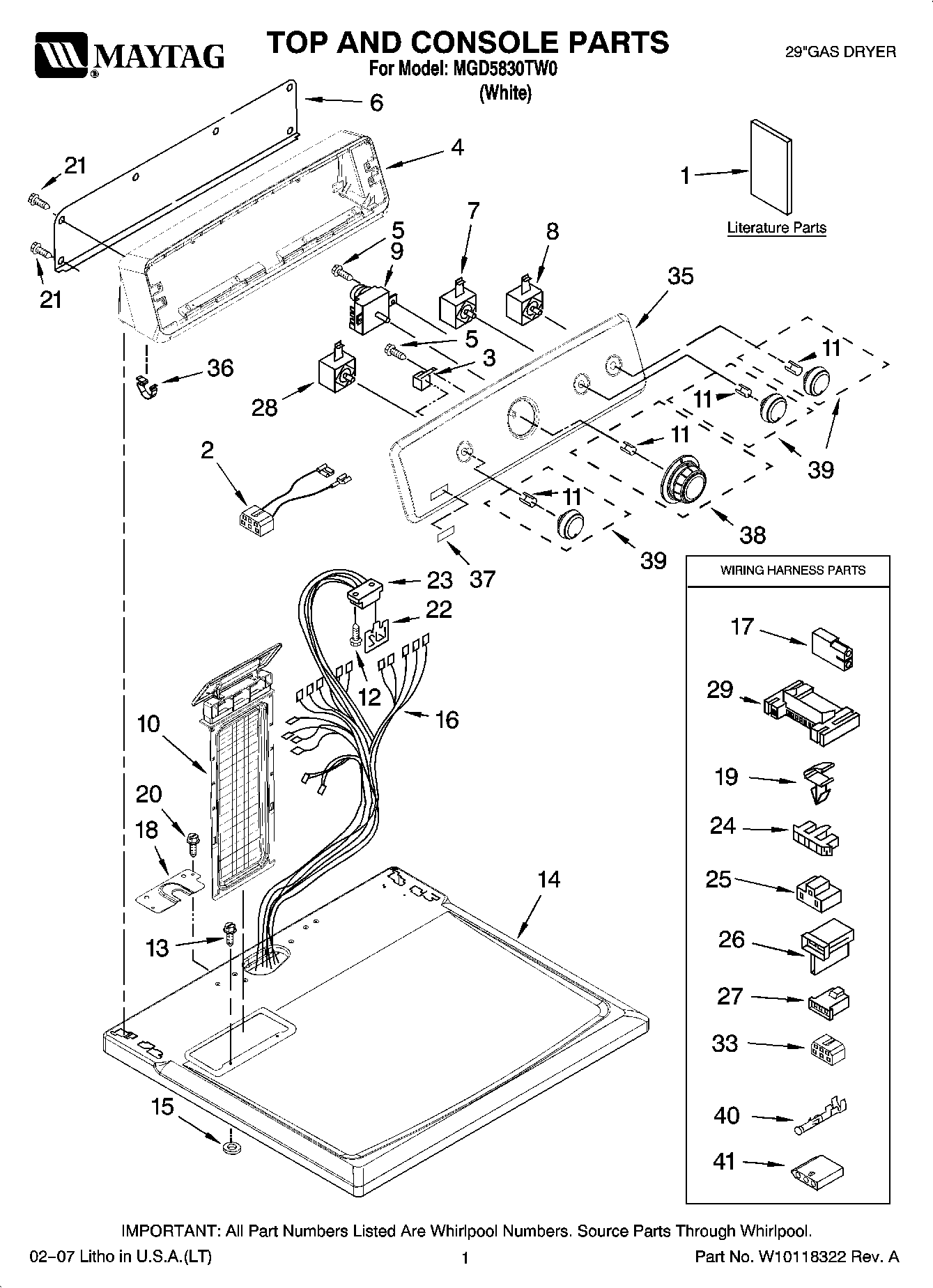

MGD5830TW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Use & Care Guide
1	Wiring Diagram
1	Sheet, Cycle Feature
2	W10113080 Whirlpool Wire Harness
3	WP694419 Whirlpool Buzzer Adjuster
4	Shell, Console (Includes Item: 36)
5	WP90767 Whirlpool Screw
6	Panel, Rear Console
7	W11106324 Whirlpool Switch
8	WPW10117655 Whirlpool Dryer Start Switch
9	TIMER
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	W11693756 Whirlpool Screw Assembly
14	Top
15	Washer
16	Harness, Wiring
17	Receptacle, Latching (2-Way) (Uses Terminal 94614)
18	Bracket, Harness
19	WP3394427 Whirlpool Clip
20	WP33001882 Whirlpool Screw
21	WP693995 Whirlpool Screw
22	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
23	3391885 Whirlpool Connector
24	Connector, Timer
25	3401144 Whirlpool Connector
26	WP3403499 Whirlpool Connector
27	WP3403498 Whirlpool Connector
28	WP3405156 Whirlpool Switch
29	3395683 Whirlpool Connector
33	Block, Disconnect
35	Panel, Control (Includes: Item: & 37)
36	WP8312709 Whirlpool Endcap Clip
37	W10203949 Whirlpool Medallion
38	WPW10110036 Whirlpool Knob
39	WPW10110035 Whirlpool Knob
40	WP94614 Whirlpool Terminal
41	3936144 Whirlpool Connector
