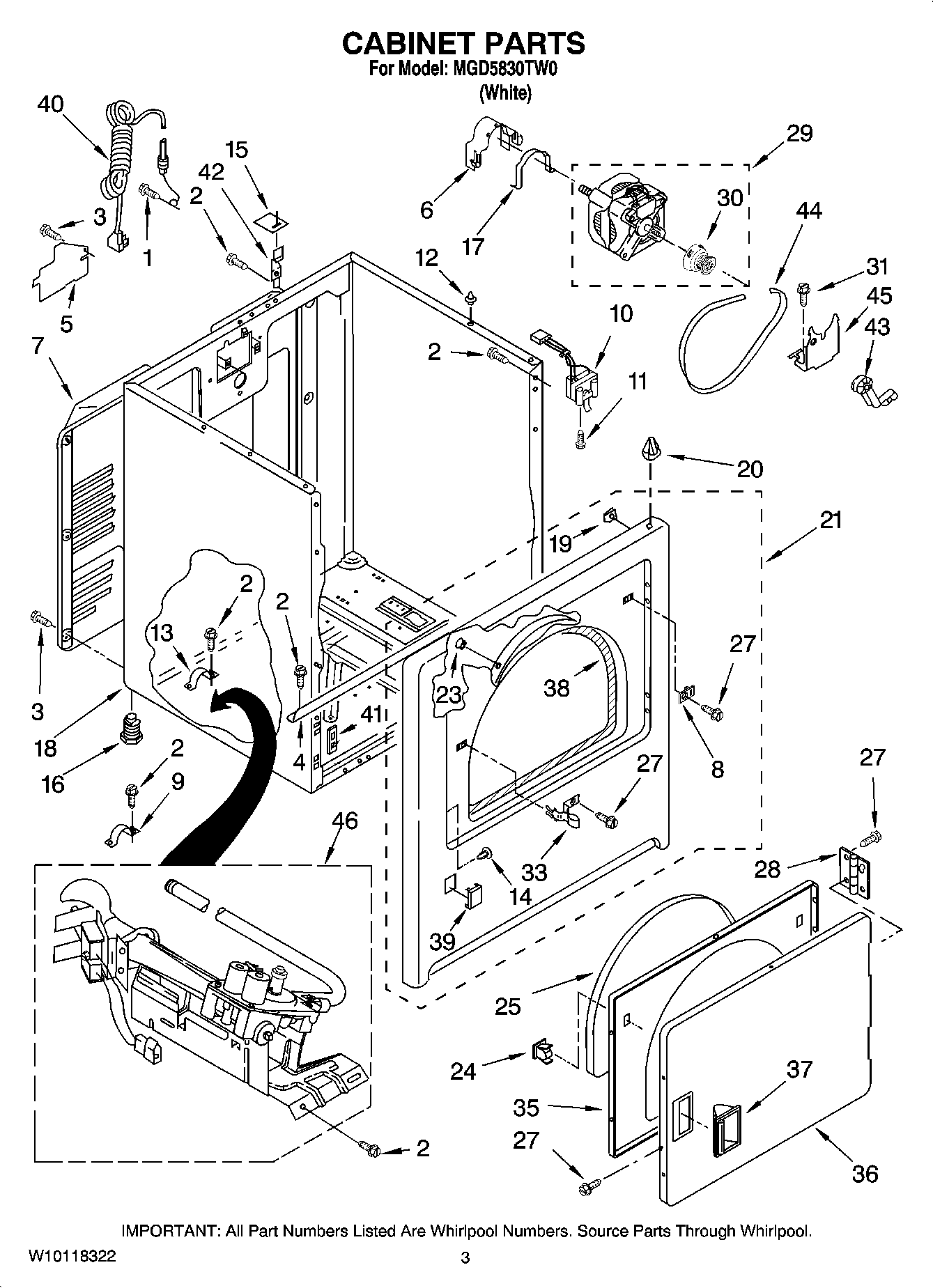

MGD5830TW0 02 – CABINET PARTS

Products

Position	Product
1	W10850756 Whirlpool Screw
2	SCREW
3	WP693995 Whirlpool Screw
4	Bracket, Cabinet
5	W11539855 Whirlpool Refrigerator Pump
6	WP3404162 Whirlpool Clamp
7	280043 Whirlpool Rear Panel
8	WP3403630 Whirlpool Plug
9	341029 Whirlpool Clamp
10	WP3406107 Whirlpool Dryer Door Switch
11	WP3395530 Whirlpool Screw
12	Locator, Top
14	WP3404413 Whirlpool Plug
15	18849 Whirlpool Pad
16	49621 Whirlpool Leveling Feet
17	WP660658 Whirlpool Clamp
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Front Panel Assembly
23	279220 Whirlpool Clip
24	WP3389441 Whirlpool Door Catch
25	SEAL-DOOR DRYER
27	WP488627 Whirlpool Refrigerator Screw
28	WPW10362431 Whirlpool Hinge Assembly
29	279827 Whirlpool Dryer Drive Motor
30	WP8066184 Whirlpool Dryer Motor Pulley
31	3400500 Whirlpool Screw
33	W11429589 Whirlpool Strike
35	WP3402341 Whirlpool Door
36	W10861227 Whirlpool Door Assembly
37	W11109500 Whirlpool Handle Assembly
38	W11035878 Whirlpool Bearing and Seal
39	Plug, Front Panel (White)
40	W11222083 Whirlpool Power Cord
41	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
42	WP8066217 Whirlpool Hinge
43	WP691366 Whirlpool Dryer Idler Pulley Assembly
44	341241 Whirlpool Dryer Drum Belt
45	WP348780 Whirlpool Base
46	W10823508 Whirlpool Gas Burner
