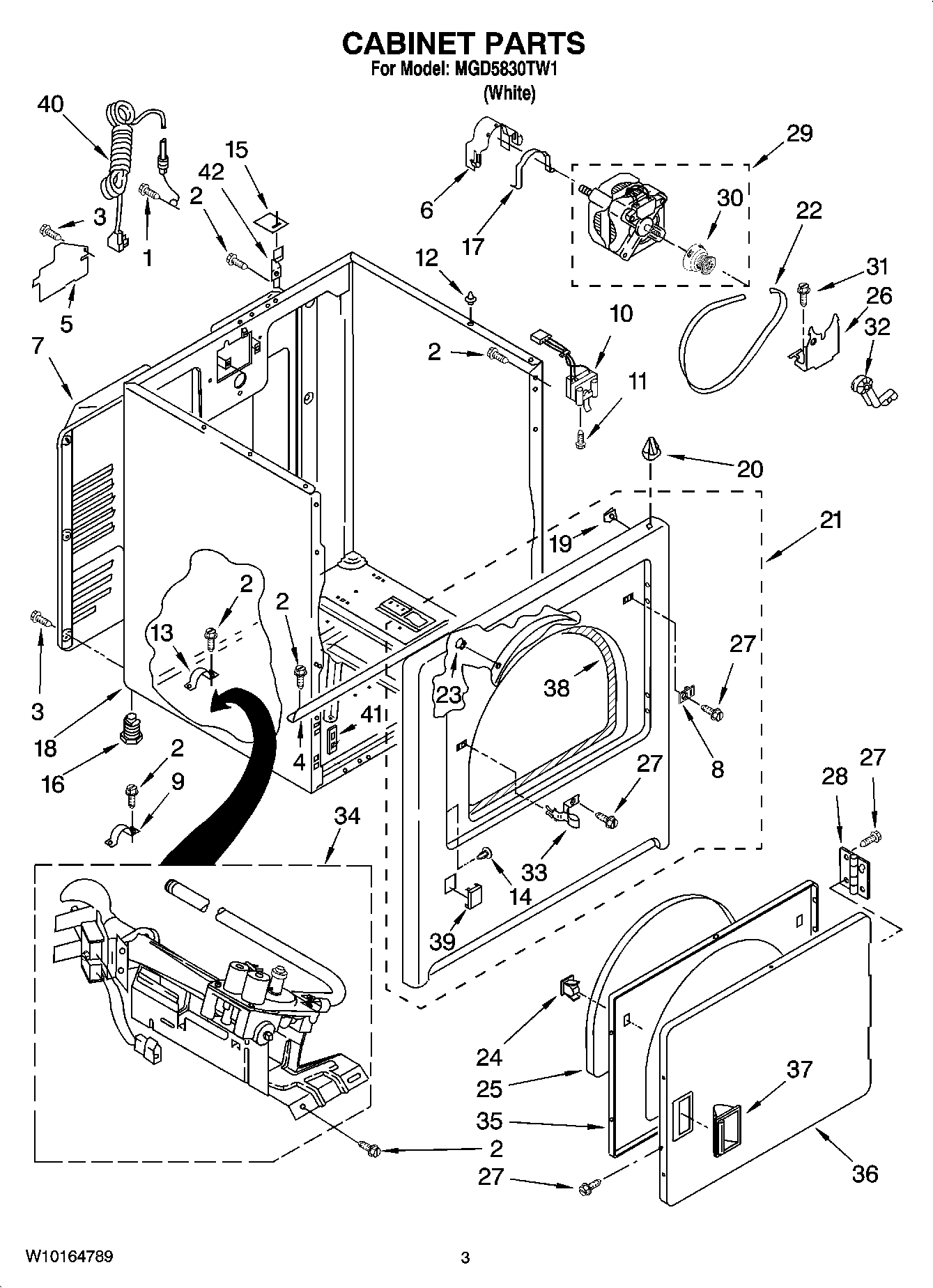

MGD5830TW1 02 – CABINET PARTS

Products

Position	Product
1	Screw, 8-18 x 5/8 (External Ground)
2	SCREW
3	Screw
4	MAY 8541400
5	MAY 3396795
6	Clamp, Motor (With Shield)
7	MAY 3396805
8	PLUG-STRIKE
9	MAY 3980175
10	Switch, Door
11	SCREW
12	Lock, Front Top (2)
13	MAY 341029
14	PLUG, HINGE HOLES
15	Pad, Top Hinge (2)
16	MAY 279810
16	MAY 3392100
17	MAY 660658
18	CABINET (WHITE)
19	Clip, Ground
20	Locator-Top
21	MAY 3403447
22	MAY W10131364
23	Clip, Felt Pad
24	DOOR CATCH ASSEMBLY
25	MAY 3405246
26	MAY 348780
27	MAY 342055
28	HINGE AND PIN ASSEMBLY
29	MAY 8066206
30	Pulley, Motor
31	BOLT
32	IDLER ASSEMBLY
33	Strike, Door
34	Burner Assembly 60 Hz. (Type 1) (White Rodgers)
35	Door, Rear
36	DOOR FRONT
37	Handle, Door
38	MAY 3406129
39	MAY 3394975
40	MAY 344020
41	MAY 3394083
42	Hinge, Top
