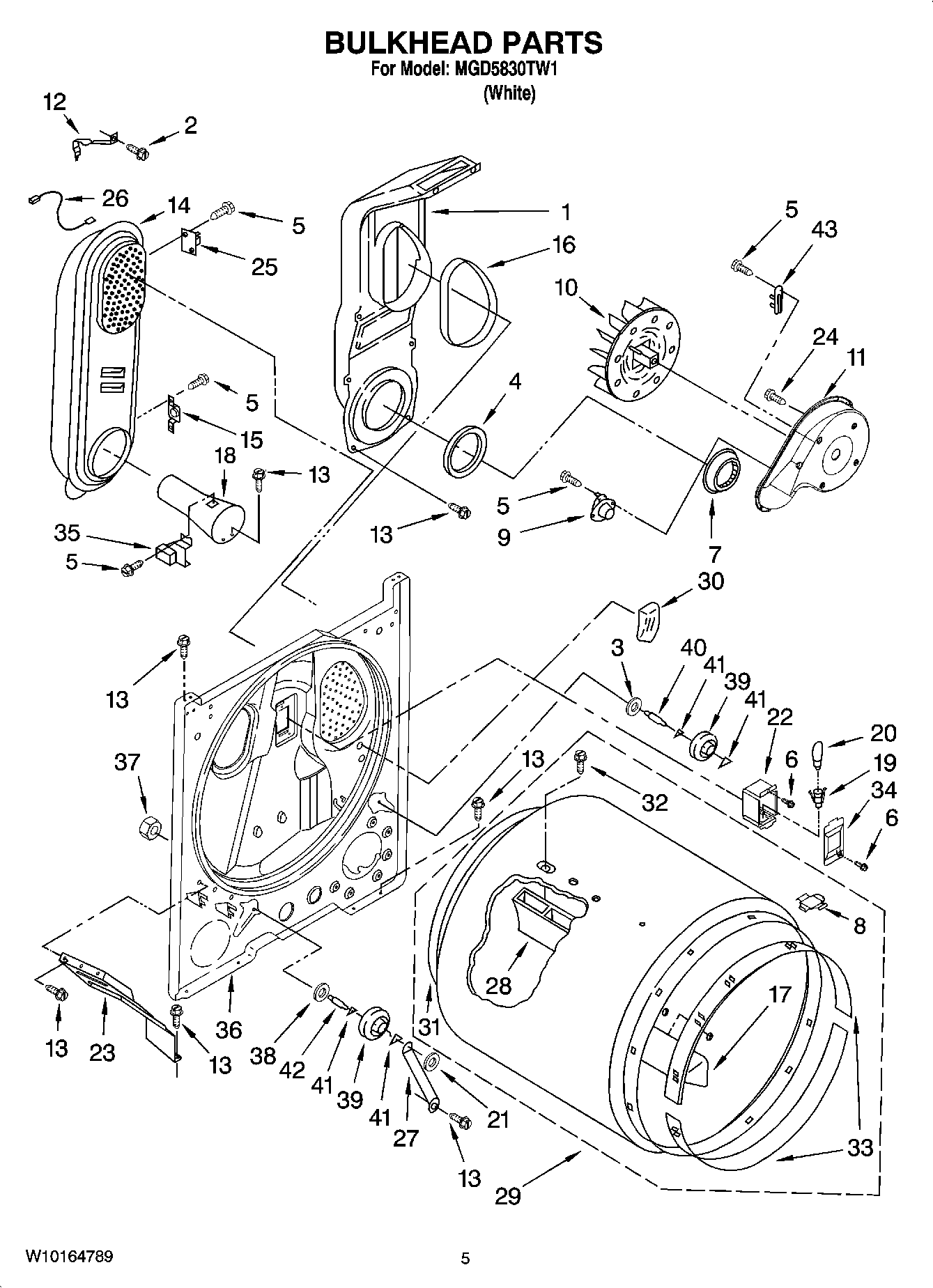

MGD5830TW1 03 – BULKHEAD PARTS

MGD5830TW1 03 – BULKHEAD PARTS

Written by

in

MGD5830TW1 03 – BULKHEAD PARTS

Products

Position	Product
1	MAY 348368
2	Screw
3	WASHER
4	MAY 347139
5	SCREW,8-18 X 3/8
6	MAY 487909
7	MAY 696302
8	Plug, Drum Hole
9	MAY 8318268
10	Wheel, Blower
11	MAY 8577230
12	CLIP HEATER BOX
13	SCREW
14	BOX, HEATER (96C)
15	Thermostat, 205 F (96C)
16	MAY 339956
17	BAFFLE, DRUM (SHORT)
18	FUNNEL, BURNER LIGHT
19	MAY W10136369
20	MAY 3406126
21	NUT, PUSH ON
22	MAY 3977373
23	BRACKET, BULKHEAD CHUTE
24	SCREW
25	MAY 280010
26	WIRE JUMPER
27	MAY 3976434
28	BAFFLE, DRUM (LONG)
29	MAY 695587
30	MAY 3976479
31	MAY 3406130
32	MAY W10109200
33	Bearing, Ring
34	MAY 3402841
35	MAY 338906
36	MAY 3403414
37	Nut, 3/8-16
38	WASHER
39	MAY 3397590
40	MAY 3399507
41	WASHER, TRI RING
42	MAY 3399506
43	Fuse, Thermal (91 C)
