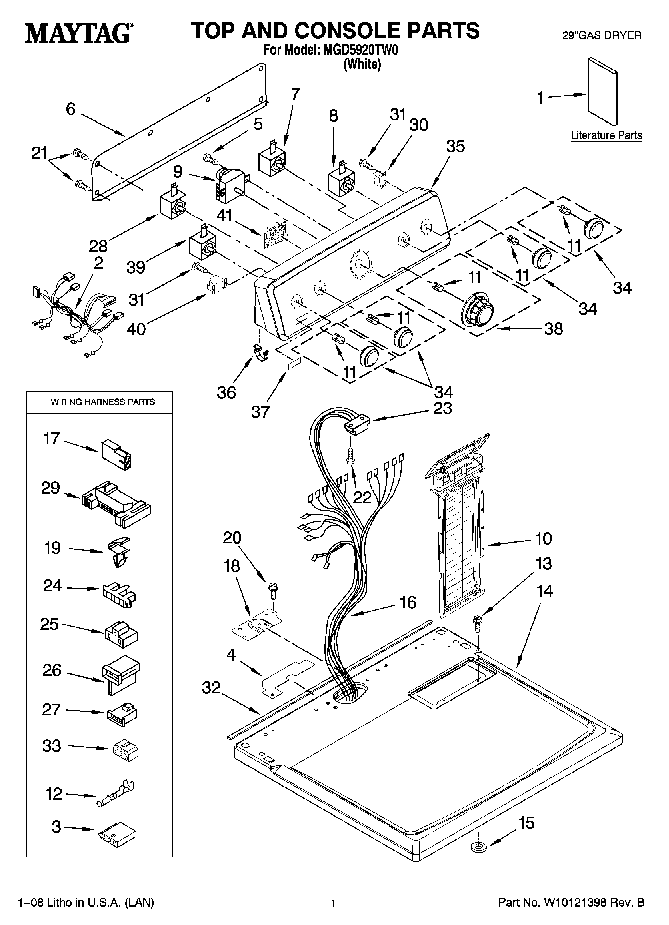

MGD5920TW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10151610
1	MAY W10114944
1	MAY W10151548
1	MAY W10151609
1	MAY W10151549
2	MAY W10113079
3	MAY 3936144
4	MAY W10118608
5	MAY 8533971
6	Panel, Rear
7	MAY 8299970
8	MAY 3977456
9	Timer, 60 Hz.
10	Screen, Lint
11	CLIP, SPRING
12	Terminal
13	SCREW
14	MAY W10112599
15	Washer (Top/Chute)
16	MAY W10110878
17	Plug, 2-Way Terminal
18	MAY 8565981
19	CLIP, HARNESS
20	Screw, 8-18 x 3/4
21	Screw
22	MAY 359625
23	MAY 3391885
24	Connector-Timer
25	Connector (PTS) Relay
26	CONNECTOR, 2-POSITION (GAS VALVE)
27	MAY 3403498
29	CONNECTOR (MOTOR)
31	Screw,8-18 x 11/32
32	Seal, Foam Console Bracket
33	Connector
34	Knob, Control (3)
35	MAY W10086719
36	MAY 8312709
37	MAY W10112569
38	Knob, Timer
39	Switch, Wrinkle Guard
40	Relay, Heater
41	MAY W10116567
