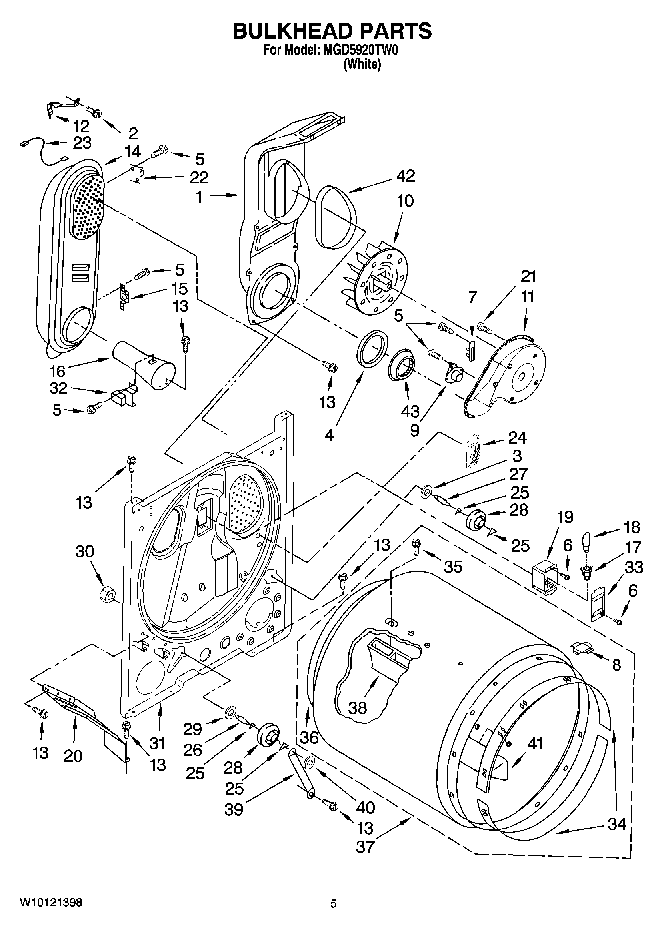

MGD5920TW0 03 – BULKHEAD PARTS

Products

Position	Product
1	MAY 348368
2	Screw
3	WASHER
4	MAY 347139
5	SCREW,8-18 X 3/8
6	MAY 487909
7	THERMAL FUSE (91C)
8	Plug, Drum Hole
9	THERMISTOR
10	Wheel, Blower
11	MAY 8577231
12	CLIP HEATER BOX
13	SCREW
14	BOX, HEATER (96C)
15	Thermostat, 205 F (96C)
16	FUNNEL, BURNER LIGHT
17	MAY W10136369
18	MAY 3406126
19	MAY 3977373
20	BRACKET, BULKHEAD CHUTE
21	SCREW
22	MAY 280010
23	WIRE JUMPER
24	MAY 3976479
25	WASHER, TRI RING
26	MAY 3399506
27	MAY 3399507
28	MAY 3397590
29	WASHER
30	Nut, 3/8-16
31	MAY 3403414
32	MAY 338906
33	MAY 3402841
34	Bearing, Ring
35	MAY W10109200
36	MAY 3406130
37	MAY 695587
38	BAFFLE, DRUM (LONG)
39	MAY 3976434
40	NUT, PUSH ON
41	BAFFLE, DRUM (SHORT)
42	MAY 339956
43	MAY 696302
