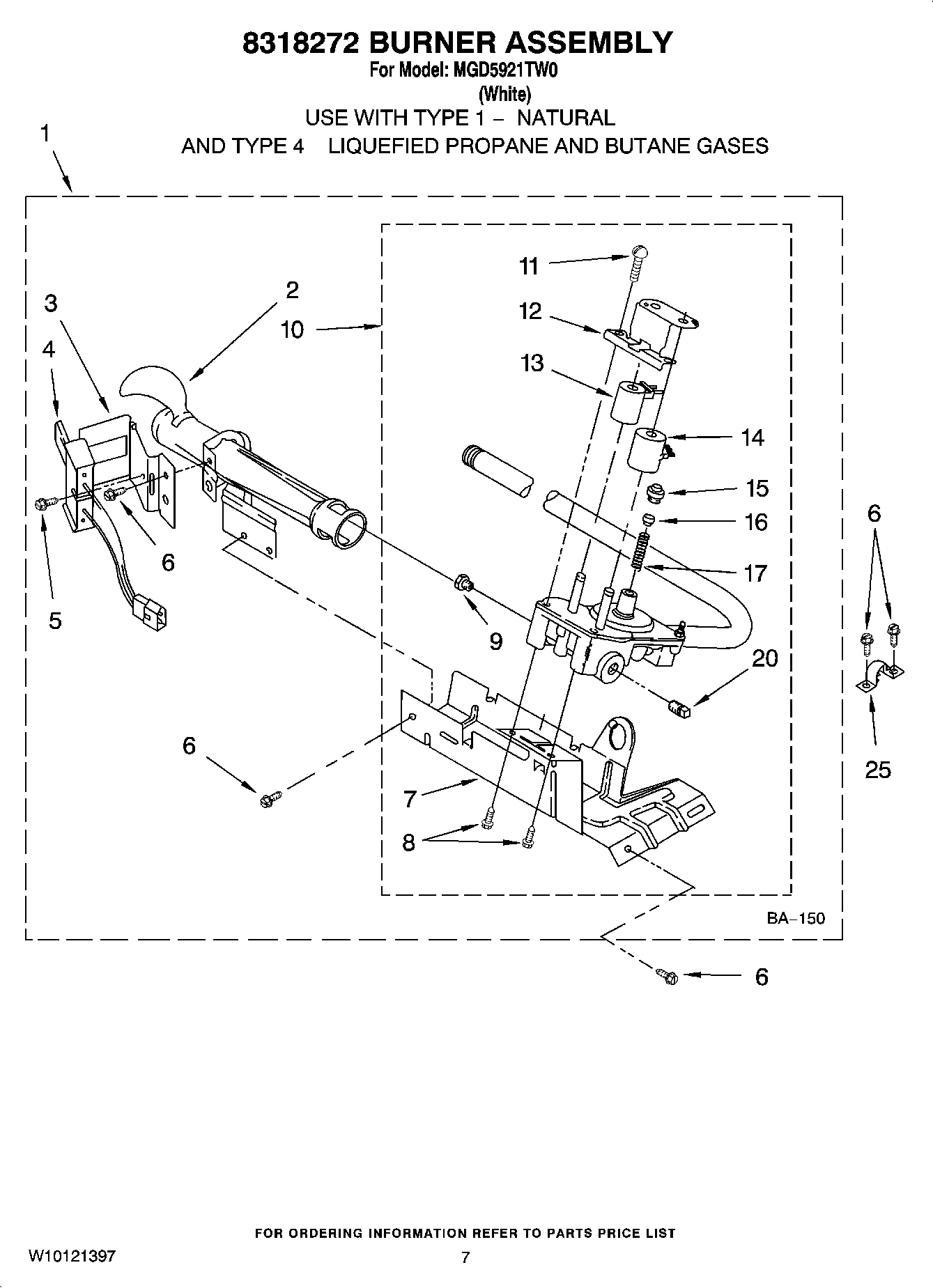

MGD5921TW0 04 – 8318272 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	CONVERSION KIT (TYPE 1 AND 2) TO TYPE (4) L.P.G.
NI	HOUS-CNTRL
NI	ACCESSORY PARTS, KIT, HOLD DOWN
NI	ACCESSORY PARTS (KIT, DRYER VENT TESTING)
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NI	ACCESSORY PARTS, KIT, DRYER REPAIR
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
1	Burner Assembly 60 Hz. (Type 1) (White Rodgers)
2	MAY 688617
3	MAY 694298
4	MAY 686590
5	MAY 3393909
6	SCREW
7	MAY 693986
8	SCREW
9	Orifice, Burner (Type 4 (Propane))
9	MAY 234868
9	TYPE 1 (NATURAL)
10	VALVE, GAS (60 HZ)
11	SCREW, COIL
12	MAY 694538
13	MAY 694540
14	COIL, 60 HZ (SPLIT) (3TERMINAL) (PILOT POSITION)
15	MAY 694424
16	MAY 694423
17	MAY 694422
20	MAY 239822
25	MAY 341029
