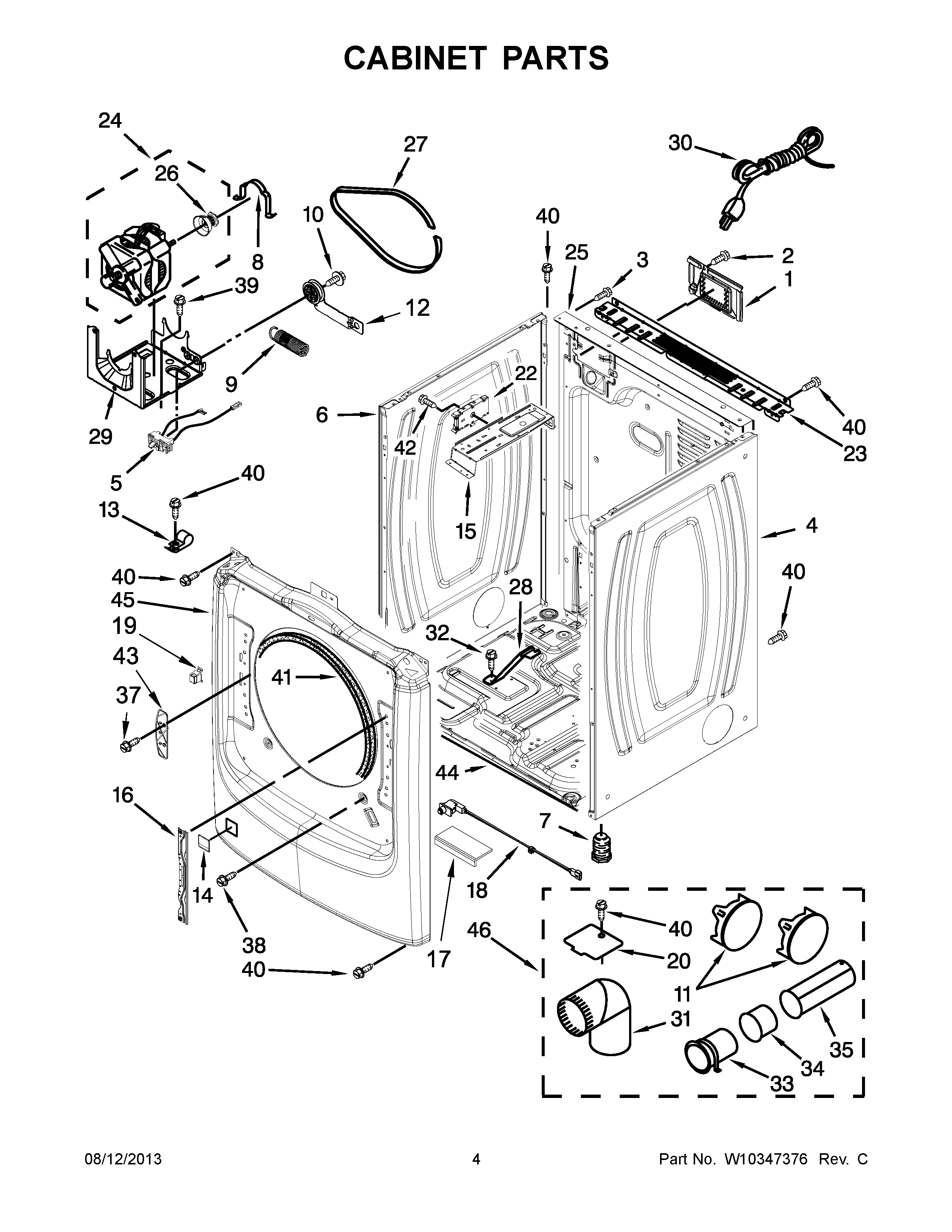

MGD6000XG0 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY 8317339
2	Screw, 8-18 x 3/8
3	MAY 8533974
4	MAY W10301061
4	MAY W10337791
4	MAY W10280028
5	MAY W10246525
6	Panel, Side (L.H.) (White)
6	MAY W10301058
6	MAY W10337789
7	MAY 3392100
8	CLAMP, MOTOR MOUNT
9	MAY W10446781
10	SCREW
11	PLUG, MULTIVENT (MIDNIGHT GREY)
12	ASSEMBLY, IDLER
13	MAY 3978776
14	MAY W10256411
14	PLUG, FRONT PANEL (WHITE)
14	PLUG, FRONT PANEL (COSMETALLIC)
15	MAY W10259611
16	MAY W10315109
17	MAY W10215725
18	MAY W10295361
19	MAY W10208401
20	MAY W10354249
22	MAY W10352731
23	MAY W10208382
24	ASSEMBLY, MOTOR
25	MAY W10247569
26	MAY W10460106
27	MAY W10112954
28	MAY 8529757
29	MAY W10242878
30	MAY 3401401
31	MAY W10416072
33	PIPE, EXHAUST (MEDIUM)
34	PIPE, EXHAUST (SHORT)
35	PIPE, EXHAUST (LONG)
37	MAY W10288126
38	SCREW
39	SCREW
40	SCREW
41	MAY 3387242
42	Screw
43	MAY W10208250
44	MAY 8565046
45	MAY W10294349
45	MAY W10301067
45	MAY W10337786
46	KIT, 4-WAY VENT
