MGD6000XR0 06 – BURNER ASSEMBLY – Aparts

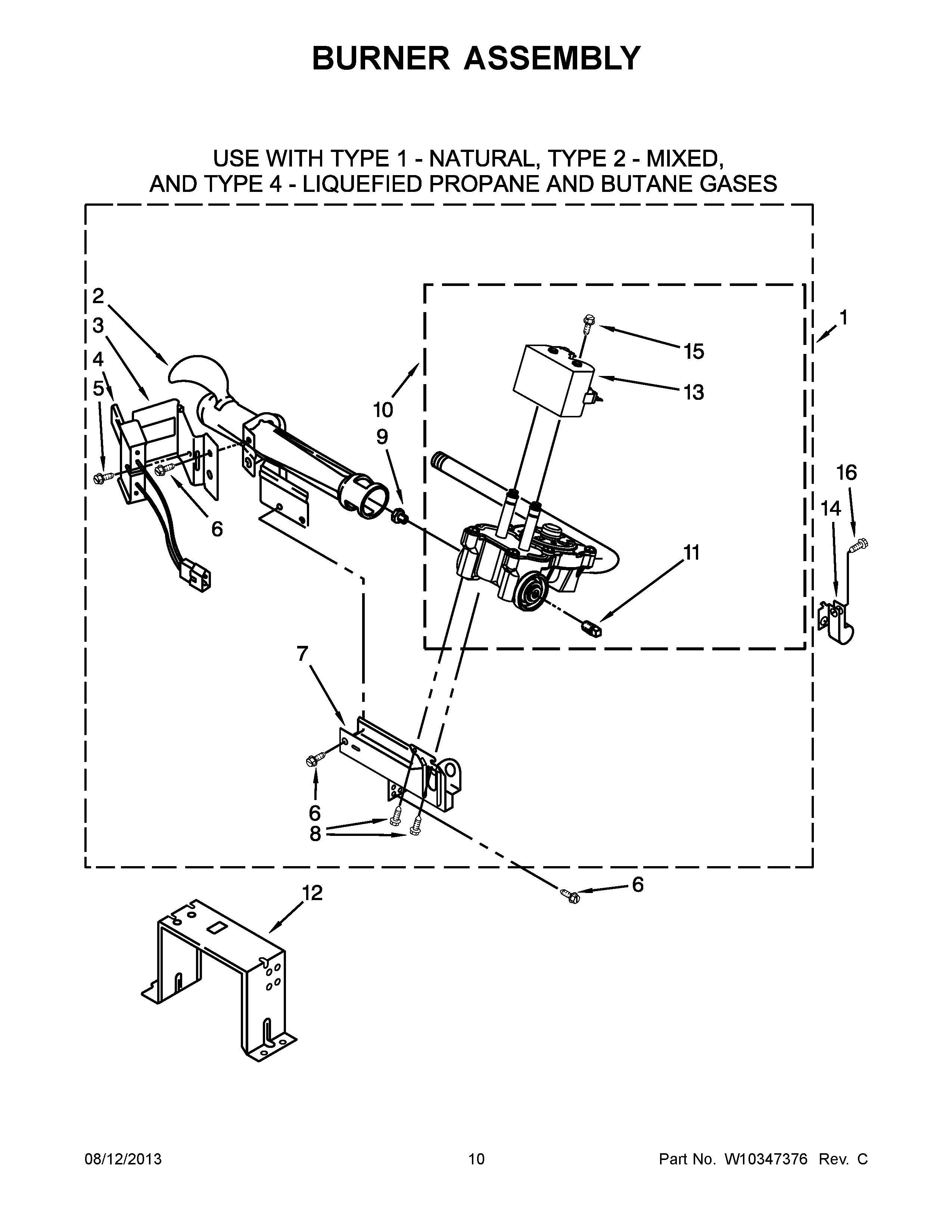

MGD6000XR0 06 – BURNER ASSEMBLY

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10307153
1	MAY W10307147
2	MAY 688617
3	MAY 694298
4	MAY 686590
5	MAY 3393909
6	SCREW
7	MAY 3389871
8	SCREW
9	ORIFICE, BURNER (TYPE 1 (NATURAL))
10	MAY W10175144
11	MAY W10295523
12	MAY 3389889
13	MAY W10328463
14	MAY 3978776
15	MAY 326049536
16	SCREW
