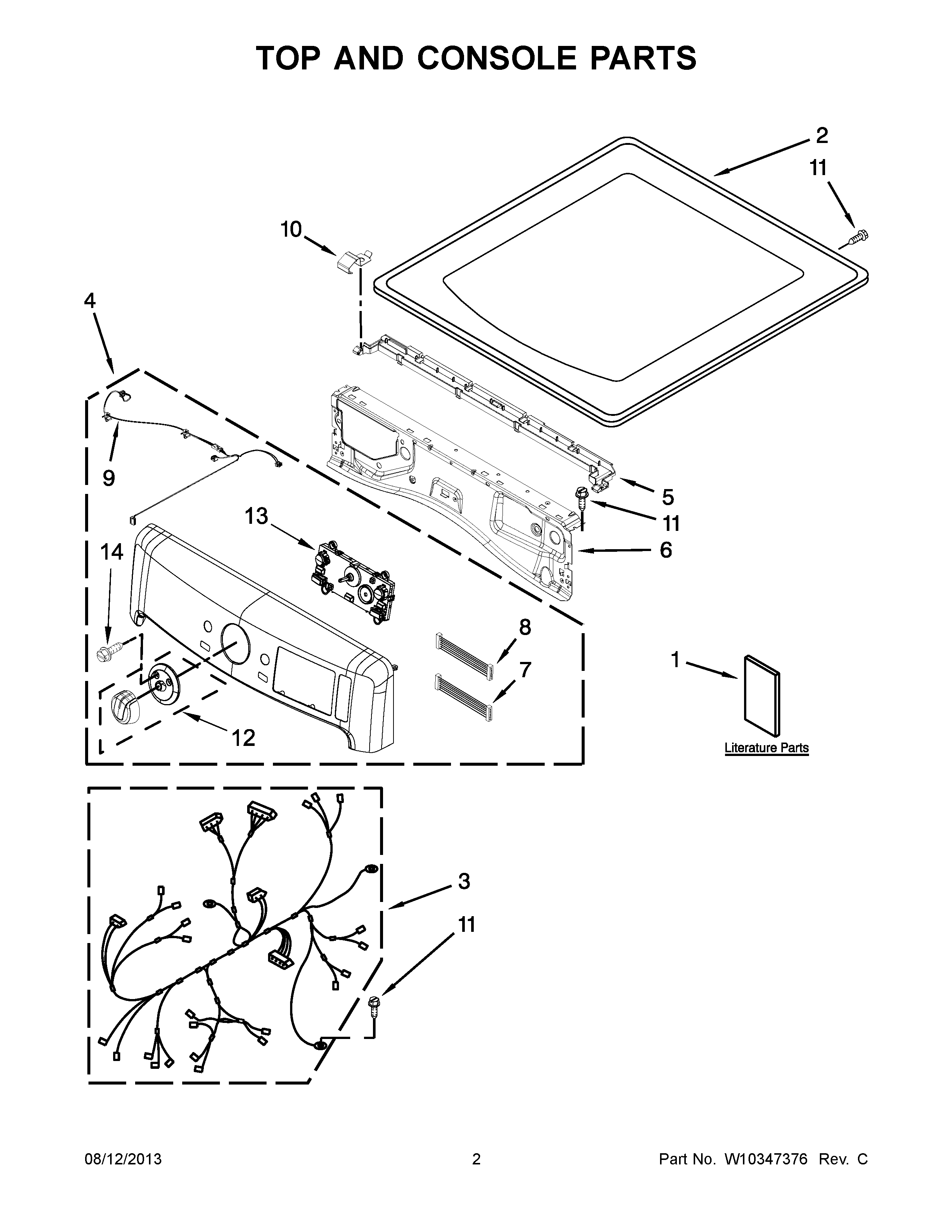

MGD6000XW0 02 – TOP AND CONSOLE PARTS

MGD6000XW0 02 – TOP AND CONSOLE PARTS

Written by

in

MGD6000XW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10316958
1MAY W10297011
1USE AND CARE GUIDE
1MAY W10057364
2MAY W10208383
2MAY W10301057
2MAY W10337792
3MAY W10355891
4PANEL, CONSOLE (INCLUDES BUTTONS AND CONTROL BOARD) (COSMETALLIC)
4PANEL, CONSOLE (INCLUDES BUTTONS AND CONTROL BOARD) (RED)
4PANEL, CONSOLE (INCLUDES BUTTONS AND CONTROL BOARD) (WHITE)
5MAY W10317570
6MAY W10208198
7HARNESS, JUMPER
8HARNESS, JUMPER
9MAY W10267833
10MAY W10317566
11SCREW
12MAY W10514146
13MAY W10348581
14MAY W10146359
