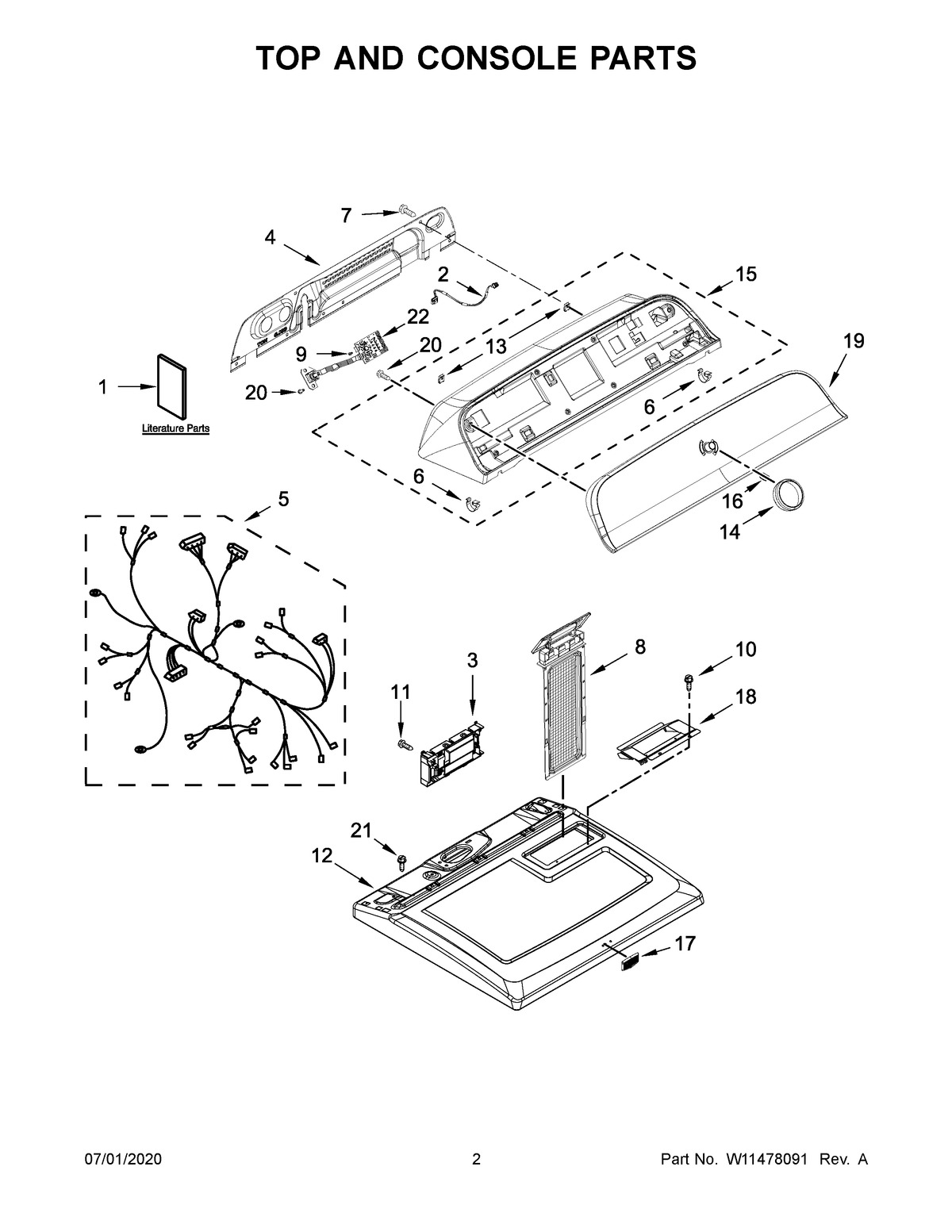

MGD6200KW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1A	MAY W11432655
1	OWNERS MANUAL QUICK START GUIDE
1B	MAY W11411572
2	MAY W11416055
3	MAY W11412414
4	PANEL, REAR
5	MAY W11419636
6	MAY 8312709
7	MAY 8533971
8	LINT SCREEN (WHITE)
9	SCREW
10	SCREW
11	MAY 3348629
12	TOP (WHITE)
13	NUT, "U"
14	MAY W11406489
15	MAY W11406485
16	CLIP, SPRING
17	BADGE
18	COLLAR, LINT CHUTE
19	MAY W11406484
20	SCREW
21	SCREW
22	MAY W11374901
