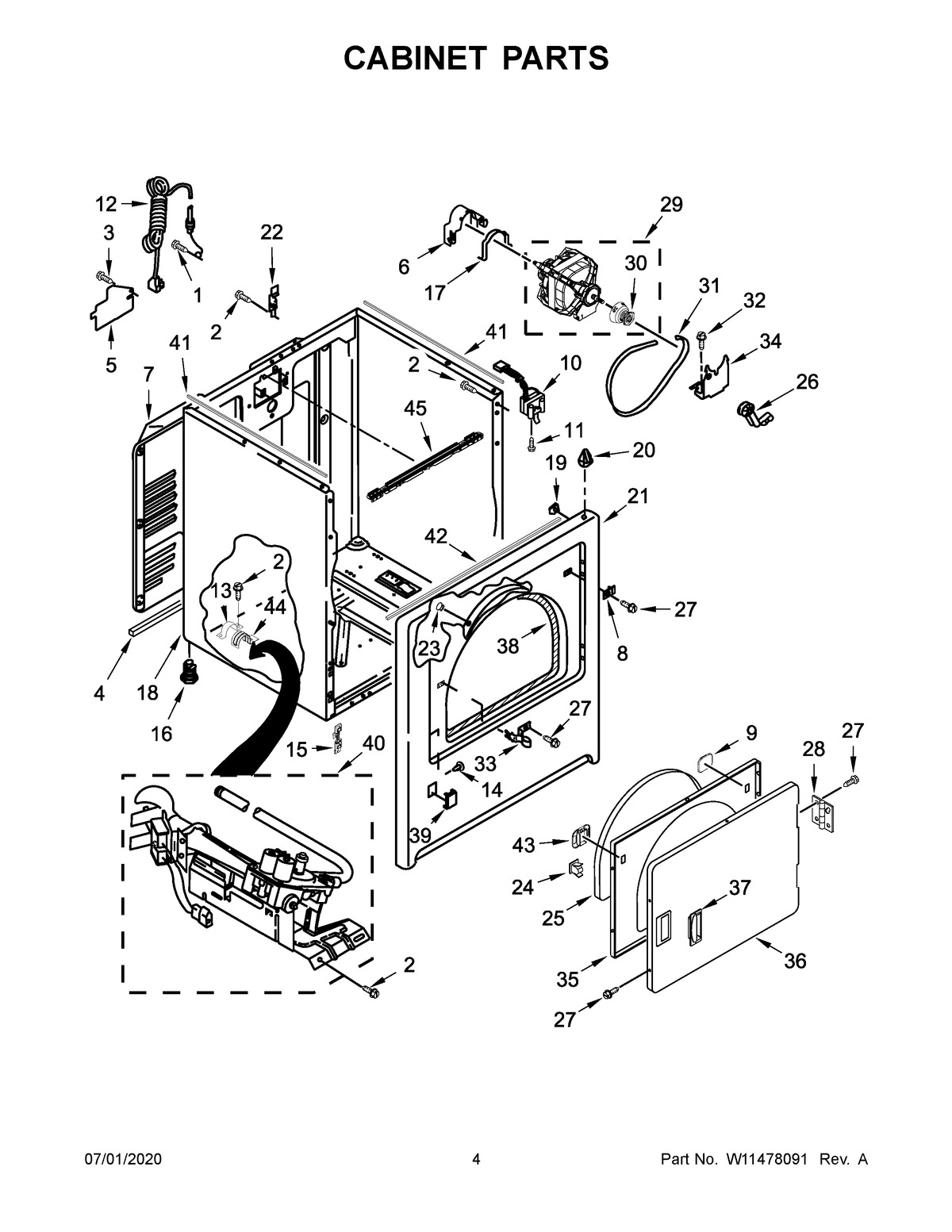

MGD6200KW0 03 – CABINET PARTS

Products

Position	Product
1	SCREW
2	SCREW
3	Screw
4	SEAL, SPILL GUARD
5	MAY 3396795
6	CLAMP, MOTOR MOUNT
7	MAY W10571724
8	PLUG, STRIKE
9	COVER, DOOR CATCH
10	SWITCH, DOOR
11	SCREW
12	CORD, POWER
13	MAY 341029
14	MAY W11308618
15	CLIP, FRONT PANEL
16	MAY W10779369
17	Clamp, Motor (With Shield)
18	CABINET (WHITE)
19	Clip, Ground
20	MAY 8066092
21	MAY W10664698
22	HINGE, TOP
23	Clip, Felt Pad
24	ASSEMBLY, DOOR CATCH
25	SEAL, DOOR
26	IDLER ASSEMBLY
27	MAY 342055
28	ASSEMBLY, HINGE AND PIN
29	MOTOR ASSEMBLY
30	Pulley, Motor
31	MAY W10131364
32	BOLT
33	STRIKE, DOOR
34	MAY 348780
35	DOOR, INNER
36	DOOR, FRONT (WHITE)
37	HANDLE, DOOR (WHITE)
38	ASSEMBLY, SEAL AND BEARING
39	PLUG, FRONT PANEL (WHITE)
40	MAY W10336852
41	SEAL, FOAM
42	SEAL, SPILL GUARD
43	BEZEL, DOOR CATCH
44	MAY W10727507
45	BRACKET, REAR
