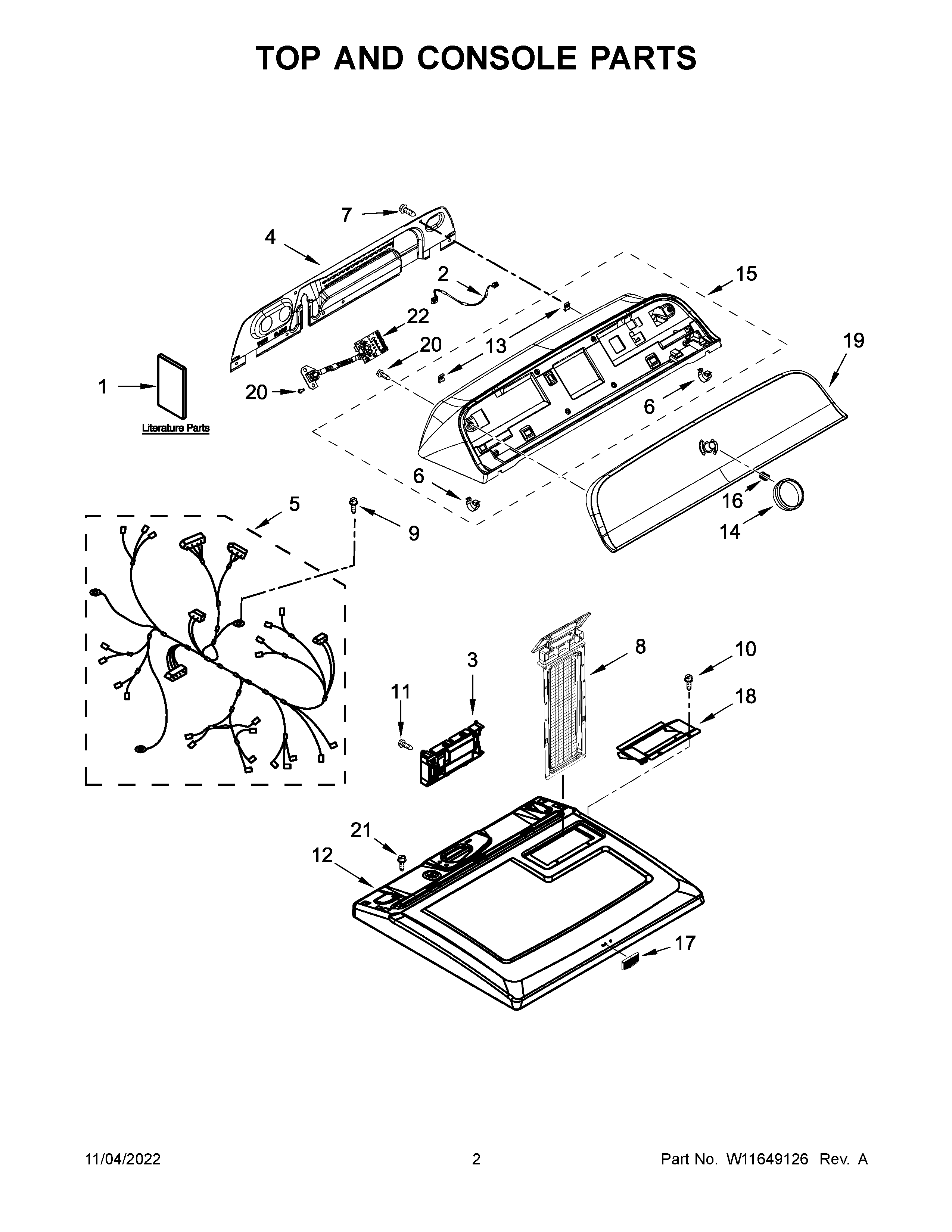

MGD6200KW4 02 – TOP AND CONSOLE PARTS

MGD6200KW4 02 – TOP AND CONSOLE PARTS

Written by

in

MGD6200KW4 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1OWNERS MANUAL
1ATECH SHEET
1BQUICK START GUIDE
2W11551859 Whirlpool Wire Harness
3W11728015-includeCORE Whirlpool W11728015 Washer Electronic Control + Core
4W10775189 Whirlpool Rear Panel
5HARNESS, MAIN
6WP8312709 Whirlpool Endcap Clip
7WP693995 Whirlpool Screw
8SCREEN
9W10850756 Whirlpool Screw
10W11693756 Whirlpool Screw Assembly
11WP90767 Whirlpool Screw
12W11222514 Whirlpool Top Assembly
13W11213336 Whirlpool Nut
14W11406489 Whirlpool Knob
15W11406485 Whirlpool Console
16WP8536939 Whirlpool Spring Clip
17WPW10612925 Whirlpool Microwave Nameplate
18W10662472 Whirlpool Cover Assembly
19W11406484 Whirlpool Overlay
20WP9740848 Whirlpool Dishwasher Screw
21SCREW
22W11627521-includeCORE Whirlpool W11627521 Washer Electronic Control Board + Core
