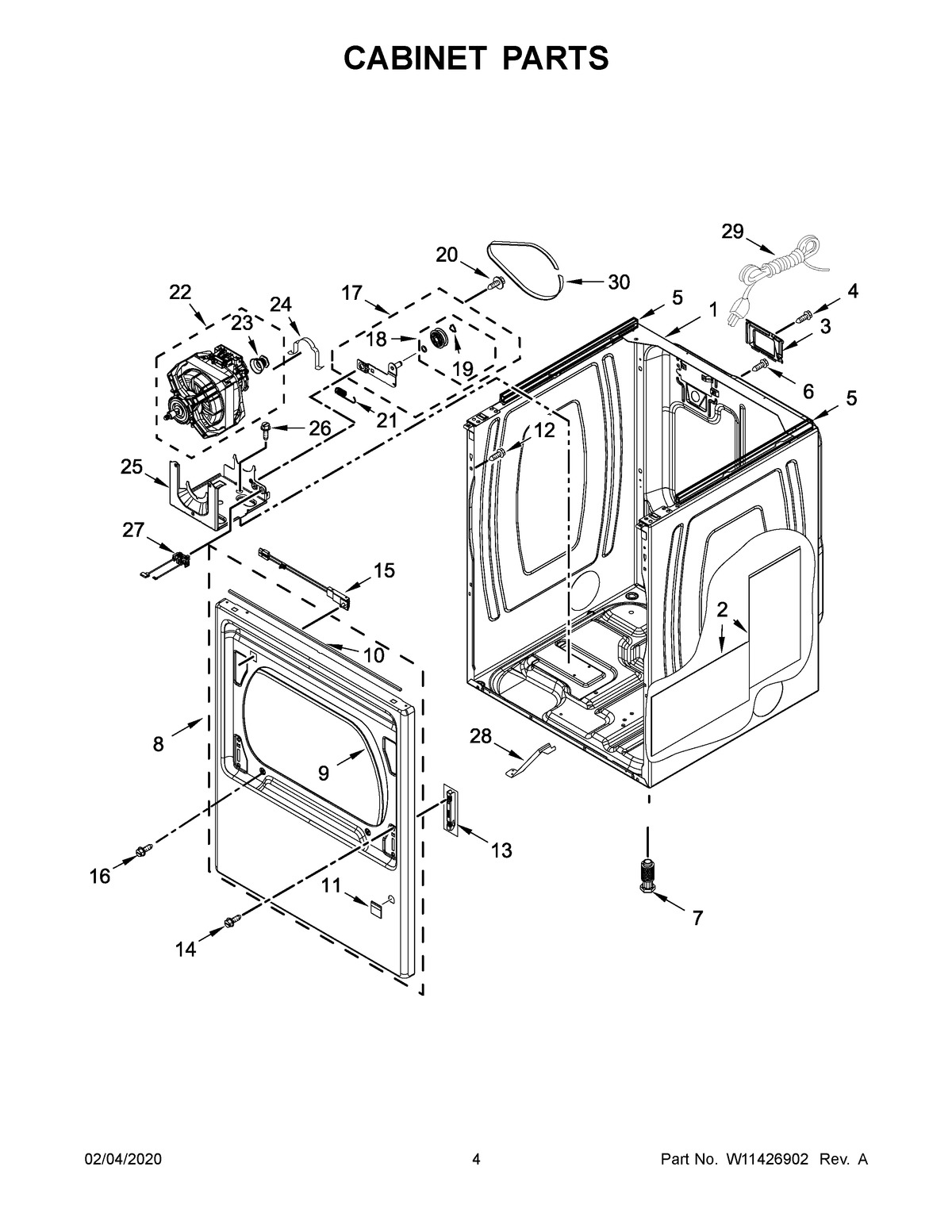

MGD6230HC0 03 – CABINET PARTS

Products

PositionProduct
1CABINET (WHITE)
1ACABINET (CHROME SHADOW)
2PANEL, DAMPENING
3MAY 8317339
4SCREW
5SEAL, FOAM
6SCREW
7FOOT, DRYER
8APANEL, FRONT (CHROME SHADOW)
8PANEL, FRONT (WHITE)
9MAY 3387242
10SEAL, FOAM
11APLUG, FRONT PANEL (CHROME SHADOW)
11PLUG, FRONT PANEL (WHITE)
12SCREW
13HINGE, INNER DOOR (RECEPTACLE)
14SCREW
15ASSEMBLY, DOOR SWITCH
16SCREW
17ASSEMBLY, IDLER
18MAY W10468057
19WASHER, TRI RING
20SCREW
21MAY W10446781
22ASSEMBLY, MOTOR
23MAY W10460106
24CLAMP, MOTOR MOUNT
25MAY W10242878
26SCREW
27SWITCH, BROKEN BELT
28MAY 8529757
29CORD, POWER
30MAY 3387610
