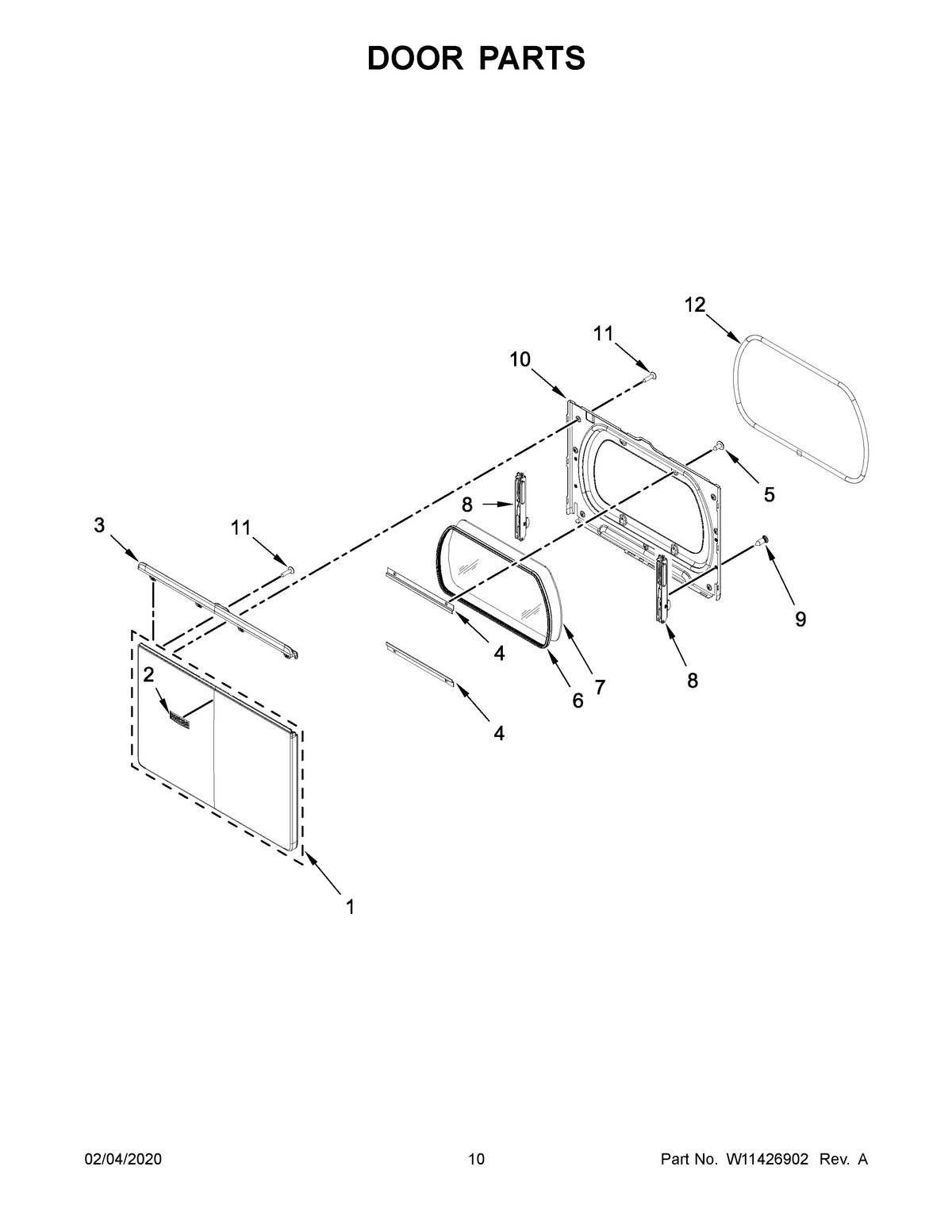

MGD6230HC0 06 – DOOR PARTS

Products

Position	Product
1	ASSEMBLY, OUTER DOOR (MAYTAG)
2	BADGE
3	HANDLE, DOOR
4	MAY 8519354
5	Screw, 10-16 x 1/2
6	SEAL, WINDOW
7	GLASS, DOOR
8	ASSEMBLY, DOOR HINGE
9	MAY 342055
10	ASSEMBLY, INNER DOOR (WHITE)
10A	ASSEMBLY, INNER DOOR (CHROME SHADOW)
11	Screw
12	SEAL, DOOR
