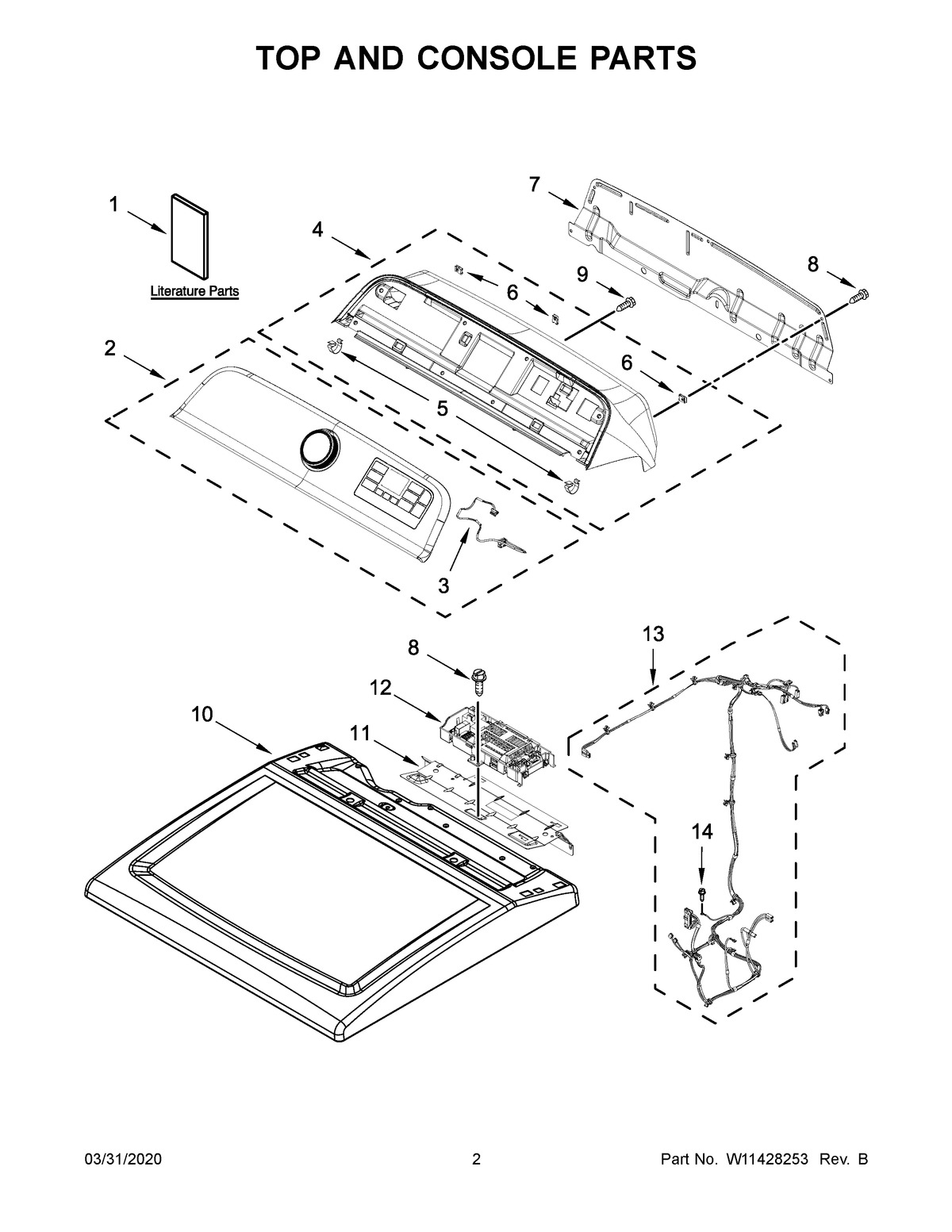

MGD6230RHW0 02 – TOP AND CONSOLE PARTS

Written by

Products

Position	Product
1B	QUICK START GUIDE
1	INSTALLATION INSTRUCTIONS
1A	MAY W11175222
2	ASSEMBLY, CONSOLE FASCIA (COMPLETE)
3	HARNESS, USER INTERFACE (HMI)
4	CONSOLE (WHITE)
5	MAY 8312709
6	NUT, "U"
7	PANEL, REAR CONSOLE
8	SCREW
9	SCREW
10	TOP (WHITE)
11	BRACKET, ELECTRONIC CONTROL
12	MAY W11396818
13	MAY W11164049
14	MAY 359625
