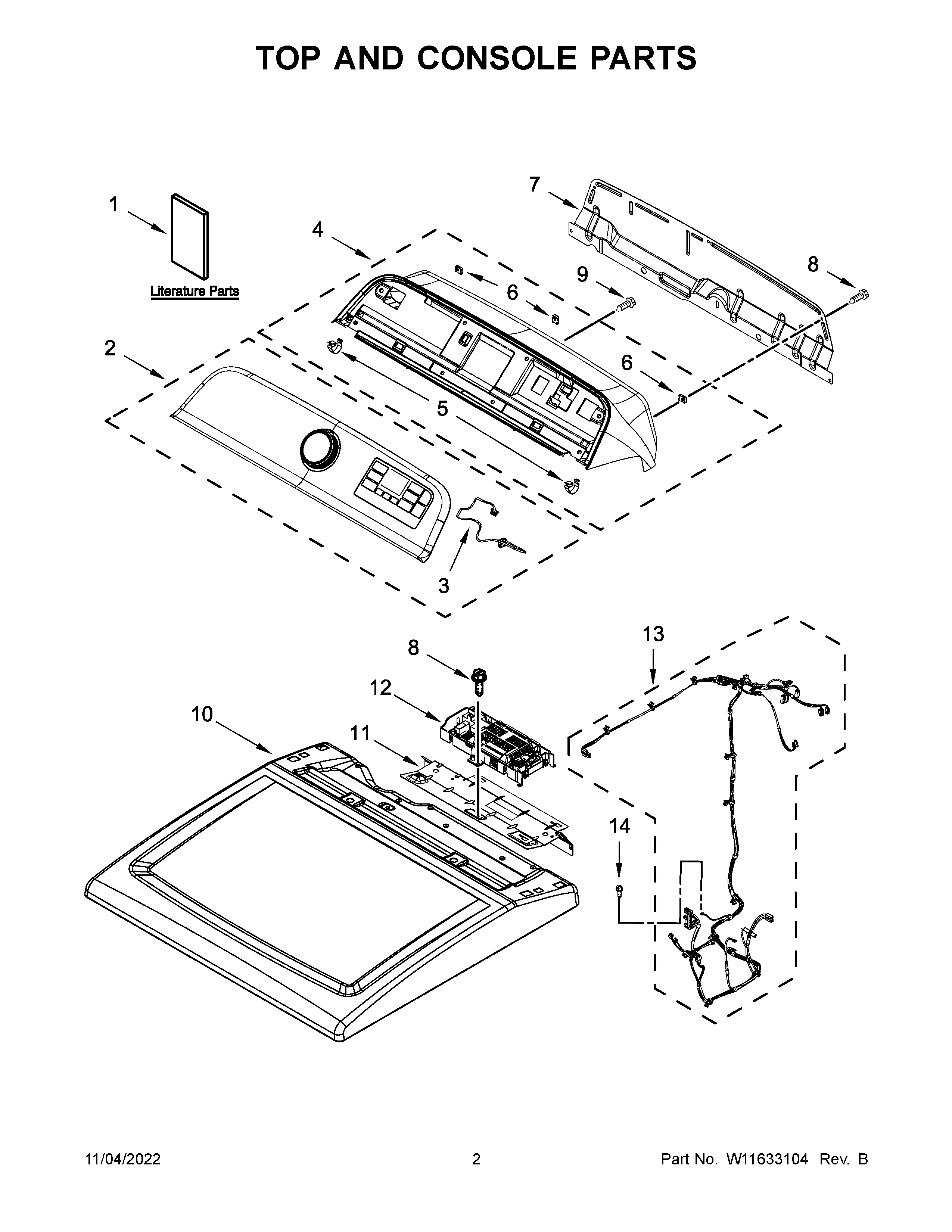

MGD6230RHW2 02 – TOP AND CONSOLE PARTS
Written by
in
MGD6230RHW2 02 – TOP AND CONSOLE PARTS
Products
Position
Product
1B
QUICK START GUIDE
1
INSTALLATIONIN STRUCTIONS
1A
TECH SHEET
2
W11413566 Whirlpool Control Panel
3
W11721377 Whirlpool Wire Harness
4
W11406678 Whirlpool Console
5
WP8312709 Whirlpool Endcap Clip
6
W11213336 Whirlpool Nut
7
W11433112 Whirlpool Rear Panel
8
WP488729 Whirlpool Refrigerator Door Screw
9
WP9740848 Whirlpool Dishwasher Screw
10
TOP (WHITE)
11
W11431865 Whirlpool Bracket
12
W11525994-includeCORE Whirlpool W11525994 Washer Electronic Control Board
13
W11459154 Whirlpool Wire Harness
14
W11693756 Whirlpool Screw Assembly
←
