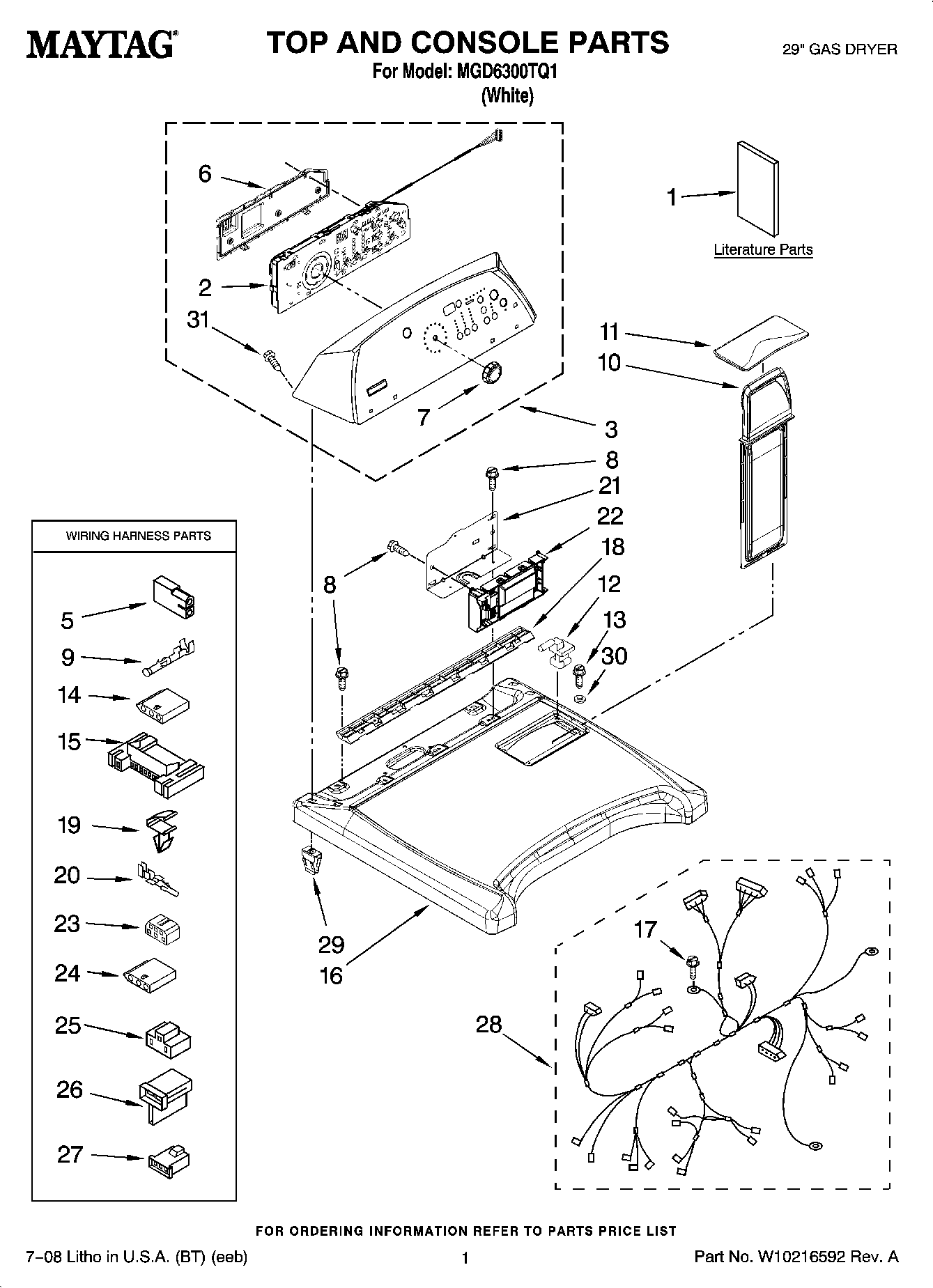

MGD6300TQ1 01 – TOP AND CONSOLE PARTS

MGD6300TQ1 01 – TOP AND CONSOLE PARTS

Written by

in

MGD6300TQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10150660
1MAY W10114195
1MAY W10150672
1MAY W10114208
2MAY W10051096
3MAY W10111646
4Screw, 6-19 x 3/64
5Plug, 2-Way Terminal
6Cover, Rear
7MAY W10110196
8Screw, 8-18 x 3/4
9Terminal
10MAY 8572270
11MAY W10168227
12MAY W10044470
12MAY W10044480
13Screw
14MAY 3936144
15CONNECTOR (MOTOR)
16Top (White)
17SCREW
18MAY 8558863
19CLIP, HARNESS
20Terminal
21MAY 8563853
22MAY W10111617
23Connector
24Connector Sensor
25Connector (PTS) Relay
26CONNECTOR, 2-POSITION (GAS VALVE)
27MAY 3403498
28MAY W10111432
29SCREW, GROMMET
30Washer (Top/Chute)
31Screw
