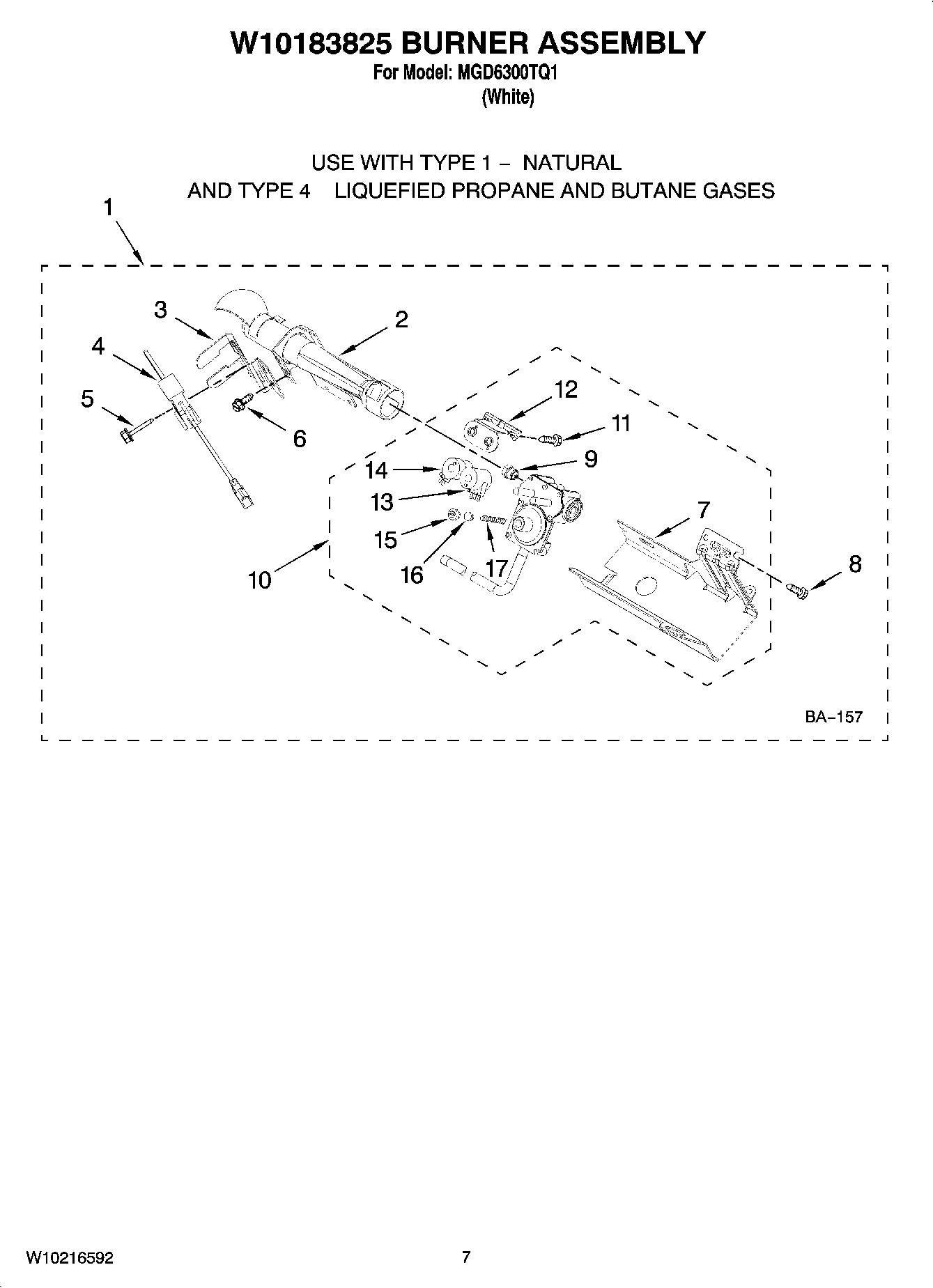

MGD6300TQ1 04 – W10183825 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	MAY W10071550
NI	ACCESSORY PARTS, KIT, HOLD DOWN
NI	ACCESSORY PARTS (KIT, DRYER VENT TESTING)
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NI	MAY 49572
NI	ACCESSORY PARTS, KIT, DRYER REPAIR
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
1	Burner, Assembly 60 HZ (See Pages 7 & For Further Burner Breakdown )
2	MAY 688617
3	MAY 694298
4	MAY 686590
5	MAY 3393909
6	SCREW
7	MAY W10183823
8	SCREW
9	TYPE 1 (NATURAL)
9	MAY 234868
9	Orifice, Burner (Type 4 (Propane))
10	MAY 8281924
11	SCREW, COIL
12	MAY 8182790
13	MAY 694540
14	COIL, 60 HZ (SPLIT) (3TERMINAL) (PILOT POSITION)
15	MAY 694424
16	MAY 694423
17	MAY 694422
