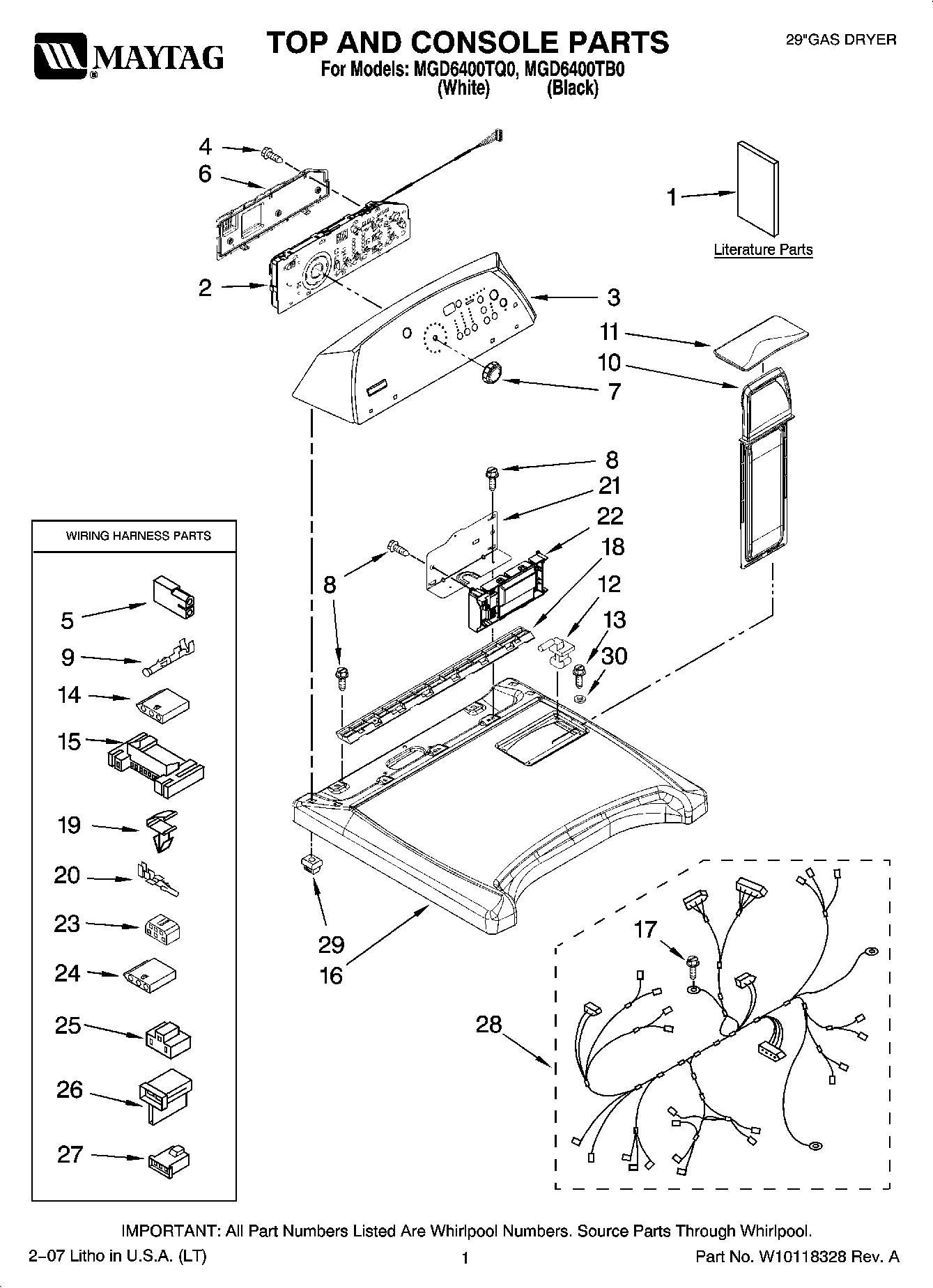

MGD6400TQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10114195
1	MAY W10114206
1	MAY W10088778
2	MAY W10051096
3	MAY W10120085
3	Panel, Console (White)
4	Screw, 6-19 x 3/64
5	Plug, 2-Way Terminal
6	Cover, Rear
7	MAY W10110196
8	Screw, 8-18 x 3/4
9	Terminal
10	MAY 8572270
11	Cover, Lint Screen (White)
11	MAY W10044360
12	MAY W10044480
12	MAY W10044470
13	Screw
14	MAY 3936144
15	CONNECTOR (MOTOR)
16	MAY 8565028
16	Top (White)
17	SCREW
18	MAY 8558863
19	CLIP, HARNESS
20	Terminal
21	MAY 8563853
22	MAY W10111610
23	Connector
24	Connector Sensor
25	Connector (PTS) Relay
26	CONNECTOR, 2-POSITION (GAS VALVE)
27	MAY 3403498
28	MAY 8299917
29	MAY 8558853
30	Washer (Top/Chute)
