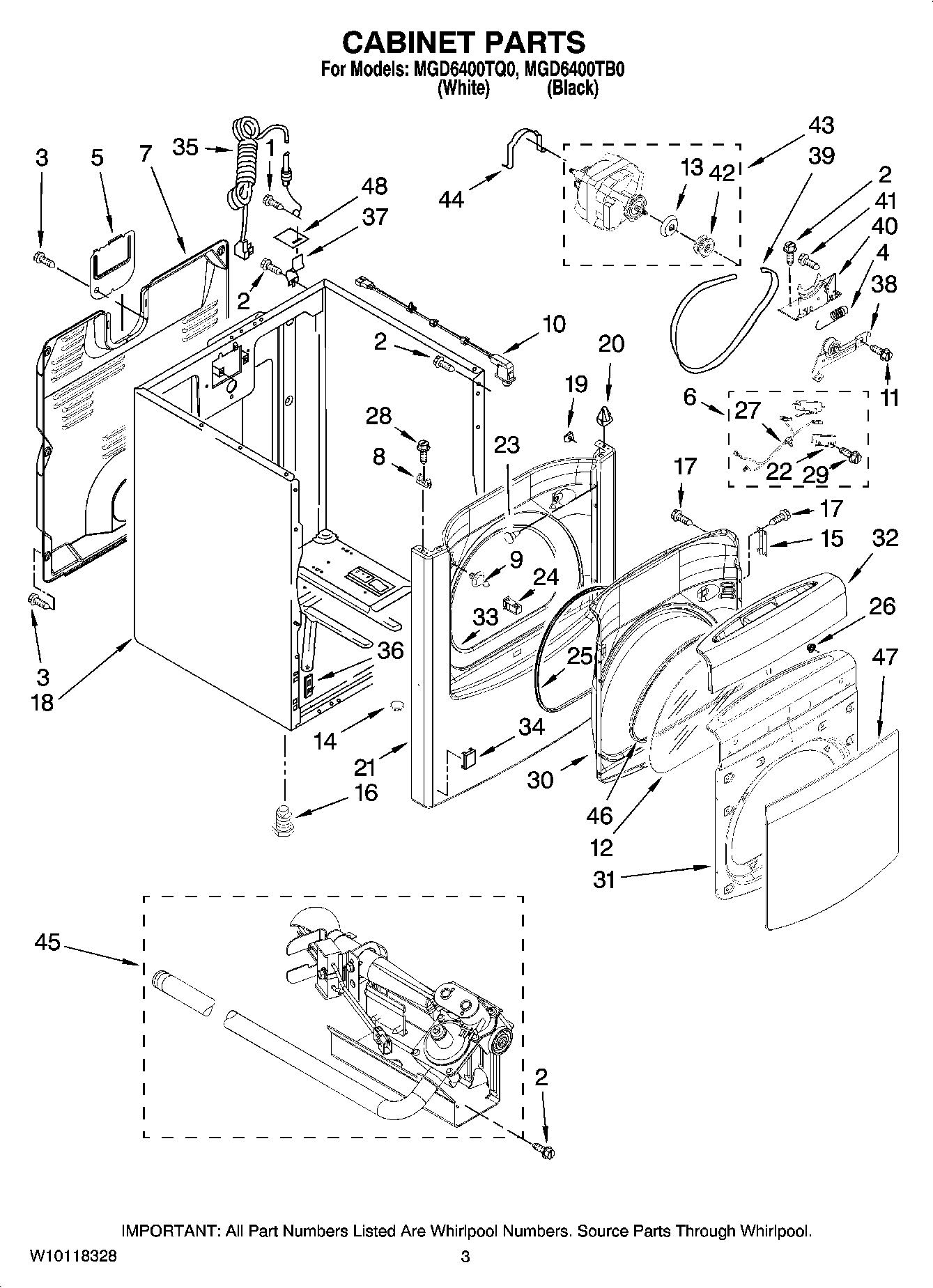

MGD6400TQ0 02 – CABINET PARTSadmin2025-04-26T12:46:57+00:00MGD6400TQ0 02 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY 8533974 |
| 2 | SCREW |
| 3 | Screw |
| 4 | MAY 3387374 |
| 5 | MAY 8558833 |
| 6 | MAY 8566208 |
| 7 | MAY 8558830 |
| 8 | LOCATOR, SNAP-DOWN |
| 9 | MAY 8572983 |
| 10 | MAY 3978977 |
| 11 | SCREW |
| 12 | MAY 8565015 |
| 13 | MAY 8578538 |
| 14 | Plug, Hole |
| 15 | HINGE ASSEMBLY (WHITE) |
| 15 | MAY W10050090 |
| 16 | MAY 3392100 |
| 16 | MAY 279810 |
| 17 | MAY 342055 |
| 18 | MAY W10045390 |
| 18 | Cabinet (White) |
| 19 | Clip, Ground (2) |
| 20 | Lock-Top Front (2) |
| 21 | MAY 8565036 |
| 21 | MAY 8565033 |
| 22 | MAY 8564011 |
| 23 | MAY 3404416 |
| 23 | PLUG, HINGE HOLES |
| 24 | Catch, Door Assembly |
| 25 | MAY 8575027 |
| 26 | WP308499 Whirlpool Nut |
| 28 | MAY W10100830 |
| 29 | MAY 8539897 |
| 30 | MAY 8575052 |
| 30 | MAY 8565037 |
| 31 | Door, Outer (Black) |
| 31 | MAY 8565042 |
| 32 | MAY W10050100 |
| 32 | MAY W10050120 |
| 33 | MAY W10044490 |
| 34 | MAY 8573008 |
| 34 | PLUG, FRONT PANEL (WHITE) |
| 35 | MAY 344020 |
| 36 | MAY 3394083 |
| 37 | MAY 238088 |
| 38 | MAY 8547174 |
| 39 | MAY 8547168 |
| 40 | MAY 8547166 |
| 41 | Bolt, 6-20 x 1 1/4 |
| 42 | MAY 8578565 |
| 43 | MAY 8566152 |
| 44 | MAY 660658 |
| 45 | Burner, Assembly 60 HZ (See Pages 7 & For Further Burner Breakdown ) |
| 46 | MAY W10076060 |
| 47 | MAY W10116398 |
| 47 | MAY 8575049 |
| 48 | Pad, Top Hinge (2) |
