MGD6400TQ0 03 – BULKHEAD PARTS – Aparts

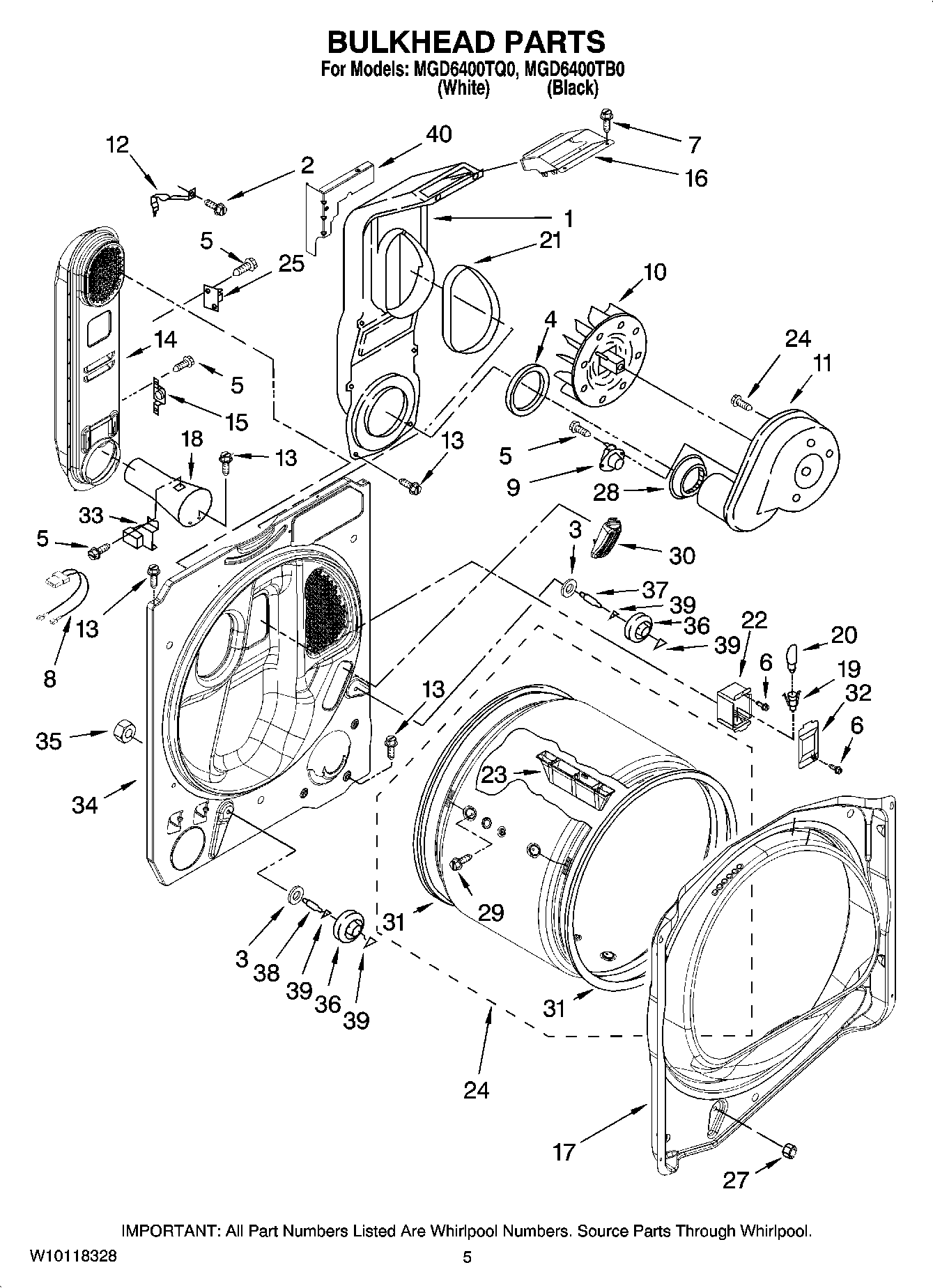

MGD6400TQ0 03 – BULKHEAD PARTS

Products

Position	Product
1	MAY 8544805
2	Screw
3	WASHER
4	MAY 347139
5	SCREW,8-18 X 3/8
6	MAY 487909
7	Screw
8	MAY 8539889
9	THERMISTOR
10	Wheel, Blower
11	MAY 8577230
12	MAY 8546149
13	SCREW
14	MAY 8544803
15	Thermostat, 205 F (96C)
16	MAY 8544810
17	MAY 8558890
18	FUNNEL, BURNER LIGHT
19	Scocket, Assembly
20	MAY 3406126
21	MAY 8544813
22	MAY 3977373
23	MAY 8565688
24	MAY 8557270
25	MAY 280010
27	NUT, HEX
28	MAY 8573836
29	MAY W10109200
30	MAY 8576468
31	MAY 8557277
32	MAY 3402841
33	MAY 338906
34	MAY 8557242
35	NUT, HEX (LEFT HAND THREAD)
36	MAY 8536973
37	MAY 8575324
38	MAY 8575325
39	WASHER, TRI RING
40	MAY W10053480
