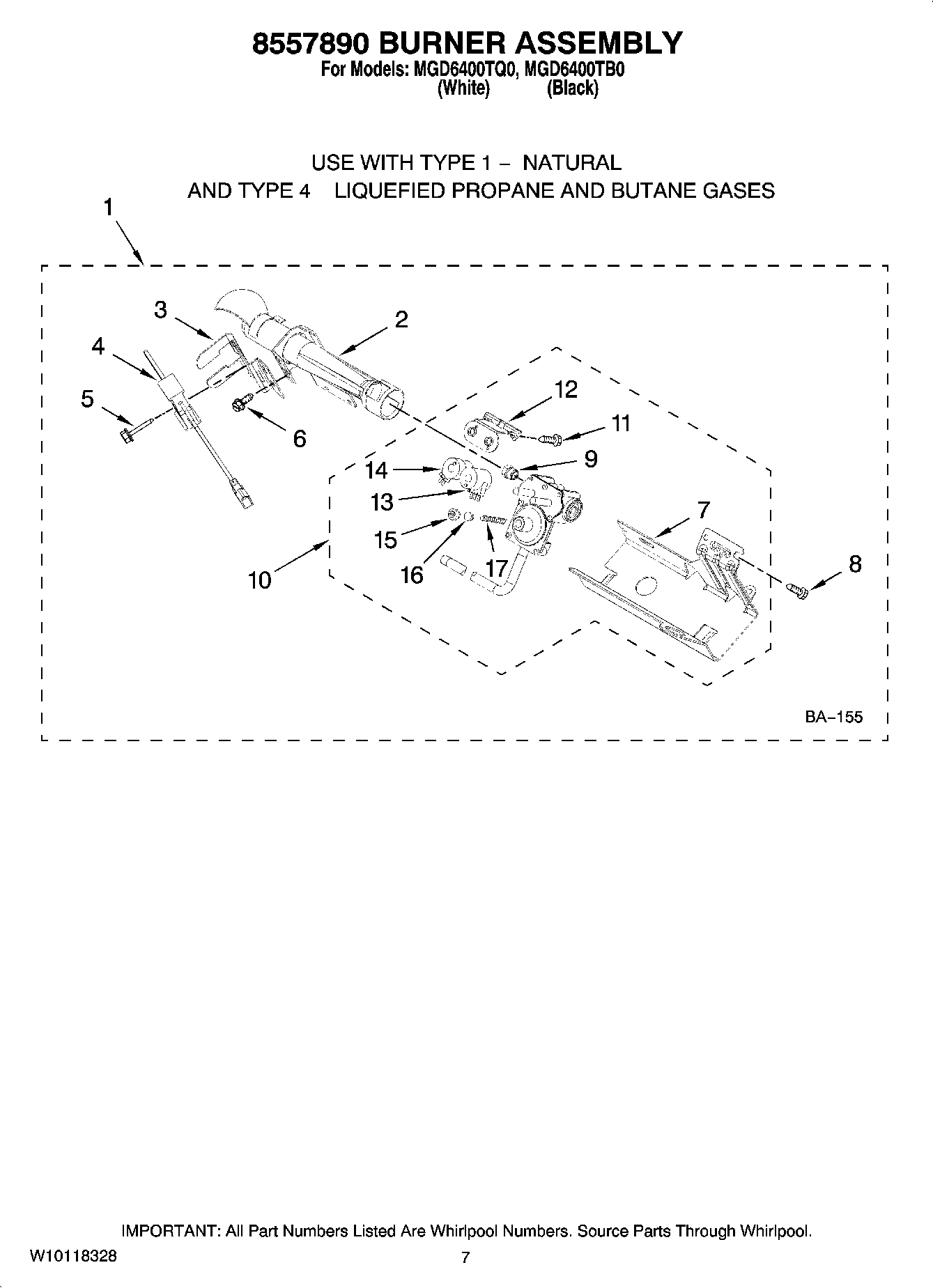

MGD6400TQ0 04 – 8557890 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
	MAY W10071550
	ACCESSORY PARTS, KIT, HOLD DOWN
	ACCESSORY PARTS (KIT, DRYER VENT TESTING)
	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
	ACCESSORY PARTS, KIT, DRYER REPAIR
	MAY 4392901
	MAY 4392899
	PAINT, BULK (1 QT. WHITE (UNCUT))
	PAINT, TOUCH-UP (1/2OZ. BLACK)
	PAINT, TOUCH-UP (1/2OZ. WHITE)
	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
1	Burner, Assembly 60 HZ (See Pages 7 & For Further Burner Breakdown )
2	MAY 688617
3	MAY 694298
4	MAY 686590
5	MAY 3393909
6	SCREW
7	MAY 8544751
8	SCREW
9	TYPE 1 (NATURAL)
9	MAY 234868
9	Orifice, Burner (Type 4 (Propane))
10	MAY 8281924
11	SCREW, COIL
12	MAY 8182790
13	MAY 694540
14	COIL, 60 HZ (SPLIT) (3TERMINAL) (PILOT POSITION)
15	MAY 694424
16	MAY 694423
17	MAY 694422
17	MAY 49572
