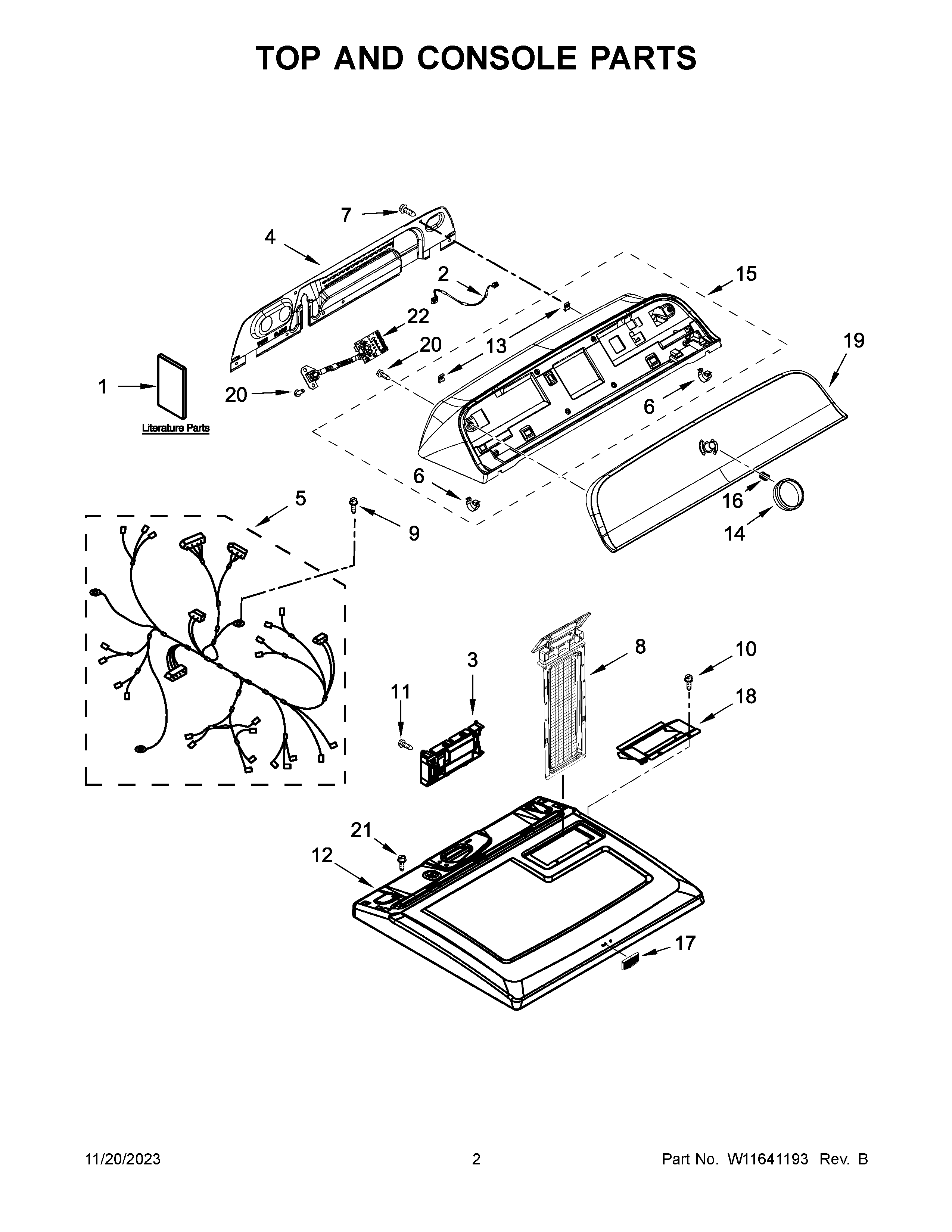

MGD6500MW1 02 – TOP AND CONSOLE PARTS

MGD6500MW1 02 – TOP AND CONSOLE PARTS

Written by

in

MGD6500MW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1OWNERS MANUAL
1ATECH SHEET
1BQUICK START GUIDE
2W11551859 Whirlpool Wire Harness
3W11723616-includeCORE Whirlpool W11723616 Dishwasher Electronic Control Board with Core
4W10775189 Whirlpool Rear Panel
5HARNESS, MAIN
6WP8312709 Whirlpool Endcap Clip
7WP693995 Whirlpool Screw
8SCREEN
8AW11633115 Whirlpool Screen Assembly
9W10850756 Whirlpool Screw
10W11693756 Whirlpool Screw Assembly
11WP90767 Whirlpool Screw
12AW11633116 Whirlpool Top
12W11222514 Whirlpool Top Assembly
13W11213336 Whirlpool Nut
14W11675852 Whirlpool Dryer Control Knob
15AW11564427 Whirlpool Console
15W11406485 Whirlpool Console
16WP688805 Whirlpool Spring Clip
17WPW10612925 Whirlpool Microwave Nameplate
18W10662472 Whirlpool Cover Assembly
19W11565155 Whirlpool Overlay
19AW11564422 Whirlpool Overlay
20WP9740848 Whirlpool Dishwasher Screw
21SCREW
22W11627521-includeCORE Whirlpool W11627521 Washer Electronic Control Board + Core
