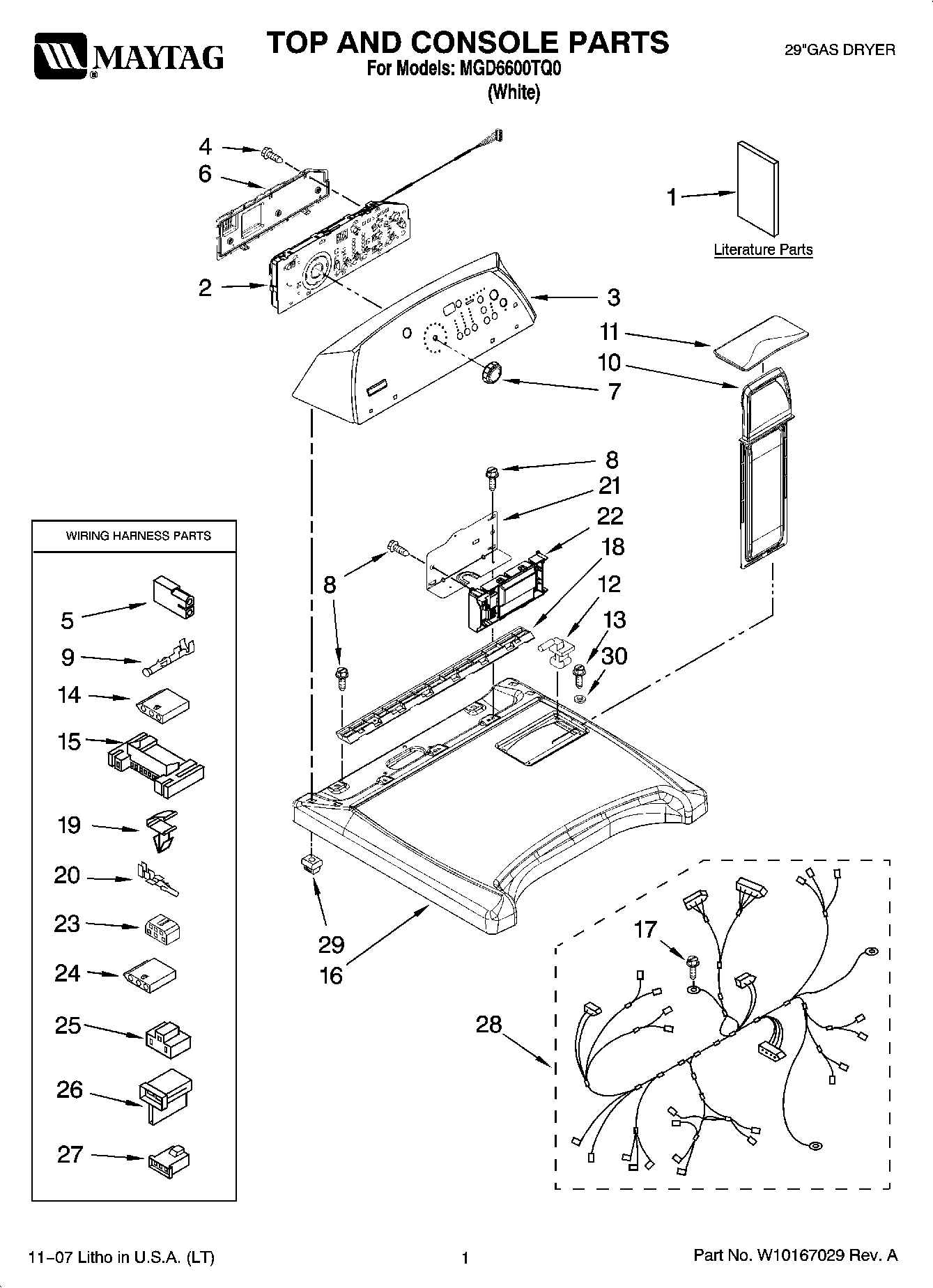

MGD6600TQ0 01 – TOP AND CONSOLE PARTS

MGD6600TQ0 01 – TOP AND CONSOLE PARTS

Written by

in

MGD6600TQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10160249
1MAY W10160251
1MAY W10165147
1MAY W10160248
1MAY W10156041
2MAY W10051167
3MAY W10170903
4Screw, 6-19 x 3/64
5Plug, 2-Way Terminal
6Cover, Rear
7MAY W10110196
8Screw, 8-18 x 3/4
9Terminal
10MAY 8572270
11Cover, Lint Screen (White)
12MAY W10044470
12MAY W10044480
13Screw
14MAY 3936144
15CONNECTOR (MOTOR)
16Top (White)
17SCREW
18MAY 8558863
19CLIP, HARNESS
20Terminal
21MAY 8563853
22MAY W10111614
23Connector
24Connector Sensor
25Connector (PTS) Relay
26CONNECTOR, 2-POSITION (GAS VALVE)
27MAY 3403498
28MAY W10141981
29MAY 8558853
30Washer (Top/Chute)
